hacker Posted June 27, 2011 Share Posted June 27, 2011 been trying to sort out the underside of the tigermoth. Mainly the area concerning where the fuselage and the wing meet. Was there any panel likes in that area of the wing/fuselage area? I am doing some filling and sanding so l need to know if l need to re-scribe the joints or leave them thanks Link to comment Share on other sites More sharing options...
hacker Posted June 28, 2011 Author Share Posted June 28, 2011 bump Link to comment Share on other sites More sharing options...
Work In Progress Posted June 28, 2011 Share Posted June 28, 2011 (edited) It's a massive pic so unpostable but look here: http://images3.jetphotos.net/img/1/4/8/1/4..._1292174184.jpg What kit is that, by the way? Matchbox 1/32? Edited June 28, 2011 by Work In Progress Link to comment Share on other sites More sharing options...
hacker Posted June 28, 2011 Author Share Posted June 28, 2011 What kit is that, by the way? Matchbox 1/32? yeah but in a Revell boxing with new instructions sheet Link to comment Share on other sites More sharing options...

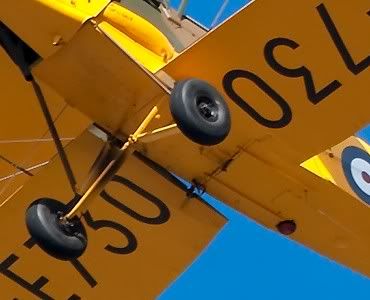

hacker Posted June 28, 2011 Author Share Posted June 28, 2011 ok l cropped the section in question on that pic and have now more questions. l see the panel lines in question but it seems that this section is different from the kit version. Also there is those two for lack of a better term stiffeners. Is this typical of the aircraft or just this example? Link to comment Share on other sites More sharing options...

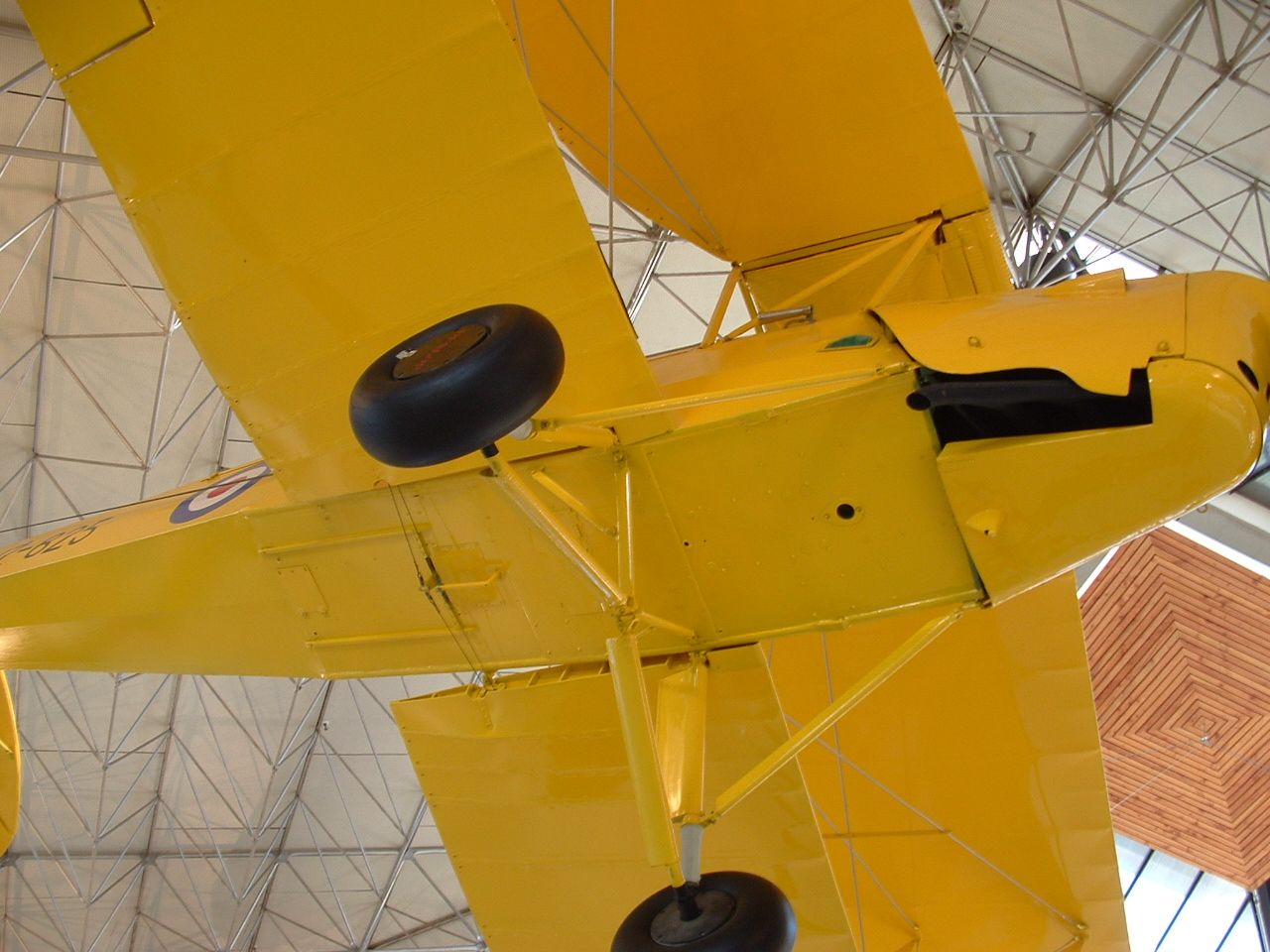

John Aero Posted June 28, 2011 Share Posted June 28, 2011 (edited) ok l cropped the section in question on that pic and have now more questions. l see the panel lines in question but it seems that this section is different from the kit version. Also there is those two for lack of a better term stiffeners. Is this typical of the aircraft or just this example? There are two stiffening strakes and at the forwards end there are two wooden blocks either side of the slot through which the lower end of the stick projects. These blocks limit/adjust aileron movement. The aileron cables are connected to the stick extension and the balance cables connect to the end of a free pivoted arm in front of the stick. There is an inspection panel in line with the main u/c legs. John Edited June 28, 2011 by John Aero Link to comment Share on other sites More sharing options...
hacker Posted June 28, 2011 Author Share Posted June 28, 2011 Thanks guys this is good. Obviously l am going to have to sand the details off the bottom as they are not correct. Then re detail it. Link to comment Share on other sites More sharing options...
gingerbob Posted June 28, 2011 Share Posted June 28, 2011 ... two wooden blocks either side of the slot through which the lower end of the stick projects. These blocks limit/adjust aileron movement. The aileron cables are connected to the stick extension... Crude, but effective! Having just received a Tiger (32nd, that is, unfortunately- I'd love a full size one) I'll have to remember this. And it just occurred to me that there's one a little more than an hour away- not bad for the coast of Maine. bob Link to comment Share on other sites More sharing options...
