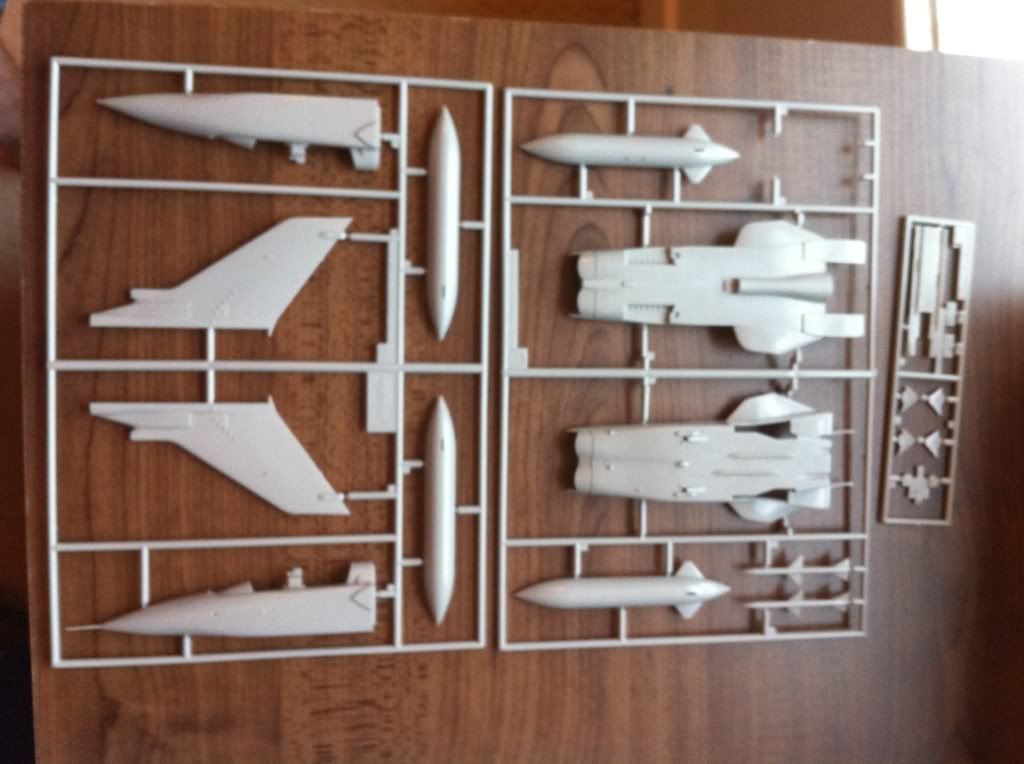

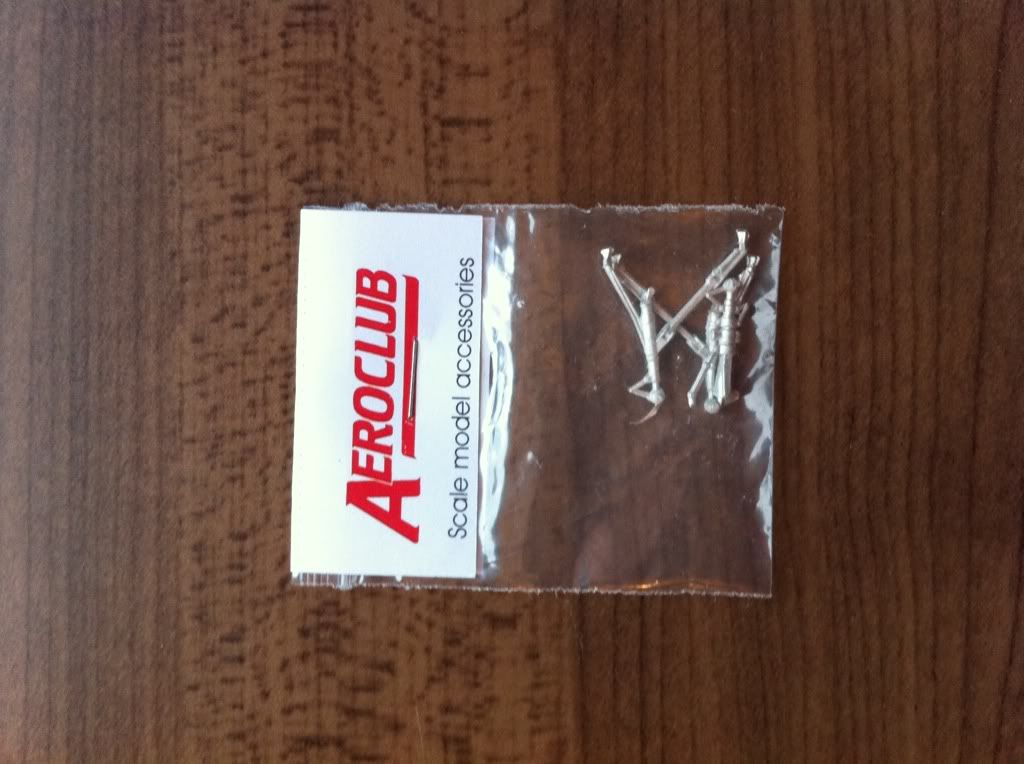

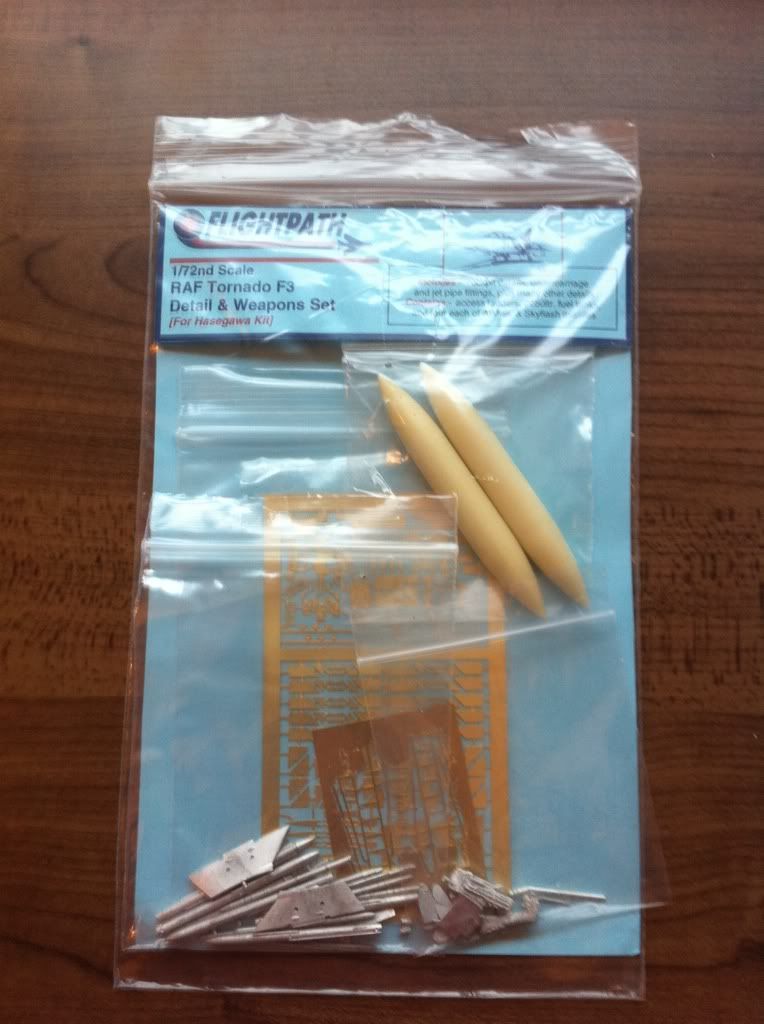

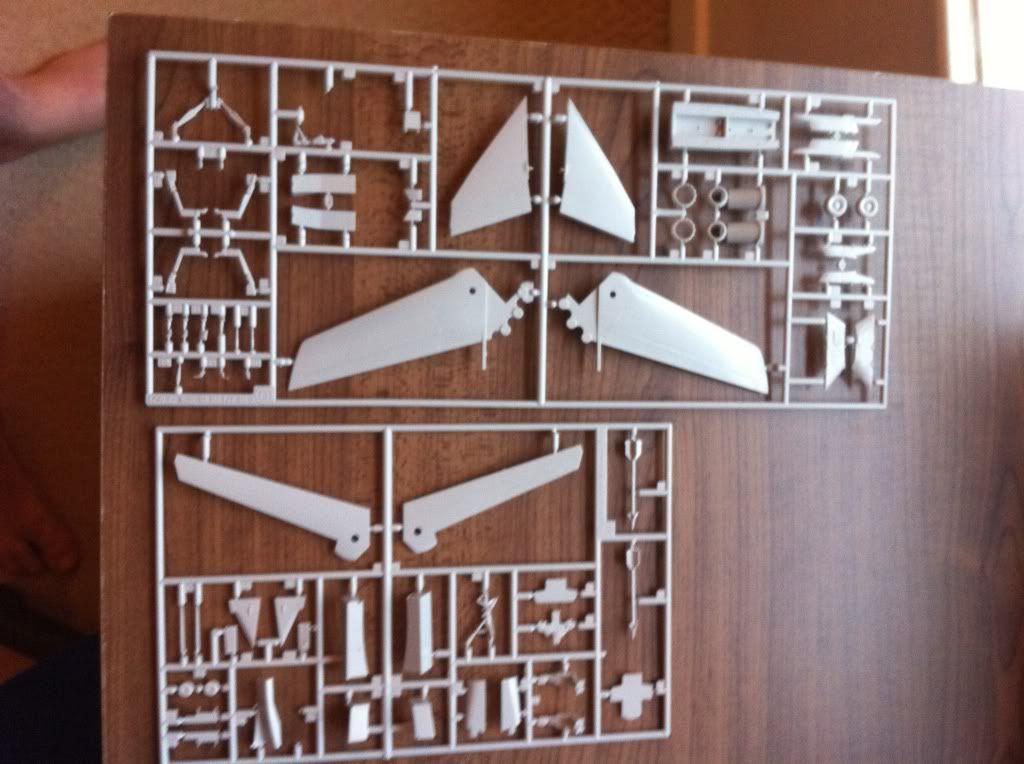

SaintsPhil Posted May 30, 2011 Share Posted May 30, 2011 (edited) Morning all, This was going to be my first GB, but in the excitiment of waiting for it to get going I ended up entering the harrier and Phantom GB too so lets hope I haven't over commited! I will be trying to replicate this aircraft http://www.airliners.net/photo/UK---Air/Pa...4a3e4bf696654ba As it was in the all over black scheme. The Kit Sprues Extras The decals are from model alliance and were very kindly given to me by a BM memeber, Goose. Thanks again Alun! One thing I've found with GB is waiting to start makes me read the instructions first! I have one question hopefully some one can help with. In the flightpath set there are some panel that need opening I can find panels to match 2 of them but not the third, I think the earth lead plug in point (small panel on same side as the refuling probe) Any help would be appreciated! Phil Edited August 23, 2011 by SaintsPhil Link to comment Share on other sites More sharing options...
jacksdad Posted May 30, 2011 Share Posted May 30, 2011 Hi Phil, Looking forward to this one, as there is something sexy about a glossy black Tornado. As for the panel, I'm sure Merv (spike) will be along soon with a photo of the panel. Steve Link to comment Share on other sites More sharing options...
jacksdad Posted May 30, 2011 Share Posted May 30, 2011 Phil, I found these in some pictures I was lucky enough to get from sooty. Hope they are of some help. Steve Link to comment Share on other sites More sharing options...
SaintsPhil Posted May 30, 2011 Author Share Posted May 30, 2011 Thanks Steve they're ideal! Link to comment Share on other sites More sharing options...
spike7451 Posted May 30, 2011 Share Posted May 30, 2011 (edited) Hi Phil,Looking forward to this one, as there is something sexy about a glossy black Tornado. As for the panel, I'm sure Merv (spike) will be along soon with a photo of the panel. Steve Sorry Steve,I know literally next to nowt about the F-3...Mudmovers all the way for me! (Steve,you wanna add them foto's to the reference thread?..) Edited May 30, 2011 by spike7451 Link to comment Share on other sites More sharing options...
mrvr6 Posted May 30, 2011 Share Posted May 30, 2011 hi mate mind if i do the same as you? what kit have you used and are the kit decals the ones you need? Link to comment Share on other sites More sharing options...
jacksdad Posted May 30, 2011 Share Posted May 30, 2011 Sorry Steve,I know literally next to nowt about the F-3...Mudmovers all the way for me!(Steve,you wanna add them foto's to the reference thread?..) Can do. I'll pop some F.3 stuff on later today. Steve Link to comment Share on other sites More sharing options...
SaintsPhil Posted May 30, 2011 Author Share Posted May 30, 2011 Course not! The kit is the hasegawa kit although I'm not sure which is better the has or revell/italeri but the revell seems easier to find! You might struggle with the decals though they are out of print. I begged some from a member on here you could try the same. Phil Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 4, 2011 Author Share Posted June 4, 2011 Well despite not being supposed to be doing any modeling today (girlfriend wants to go out for the day) I manage to sneak a start and I've dipped the canopy and put it to one side to dry! It's a start!! Phil Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 6, 2011 Author Share Posted June 6, 2011 I've made some more progress, not much though as trying to get a harrier done for that GB too! I've started on the pit, I'm not sure how much of the flightpath set I'll use, maybe just the cast rear IP top section (to replace the incorrect kit part). I'm less impressed with this set than I have been with previous FP offerings. The pilot IP doesn't look to fit over the kit part well and the rear IP is one piece, including the front of the monitors, which has nice detail included in the casting! I'll save the rear etch for a future F3 using the Revell kit! No pictures yet, sorry, I'm stuck with my phone camera, which takes decent enough shots, as long as the lights good, which it wasn't last night! Phil Link to comment Share on other sites More sharing options...
Dermo245 Posted June 6, 2011 Share Posted June 6, 2011 Look forward to seeing your pics Phil and must check out your Harrier build too - flirted with the idea of that GB myself but too much on the bench right now! Dermot Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 7, 2011 Author Share Posted June 7, 2011 Cheers Dermot, I've started a phantom for that GB as well so I've probably over committed, bit I never have just one kit on the go... Link to comment Share on other sites More sharing options...

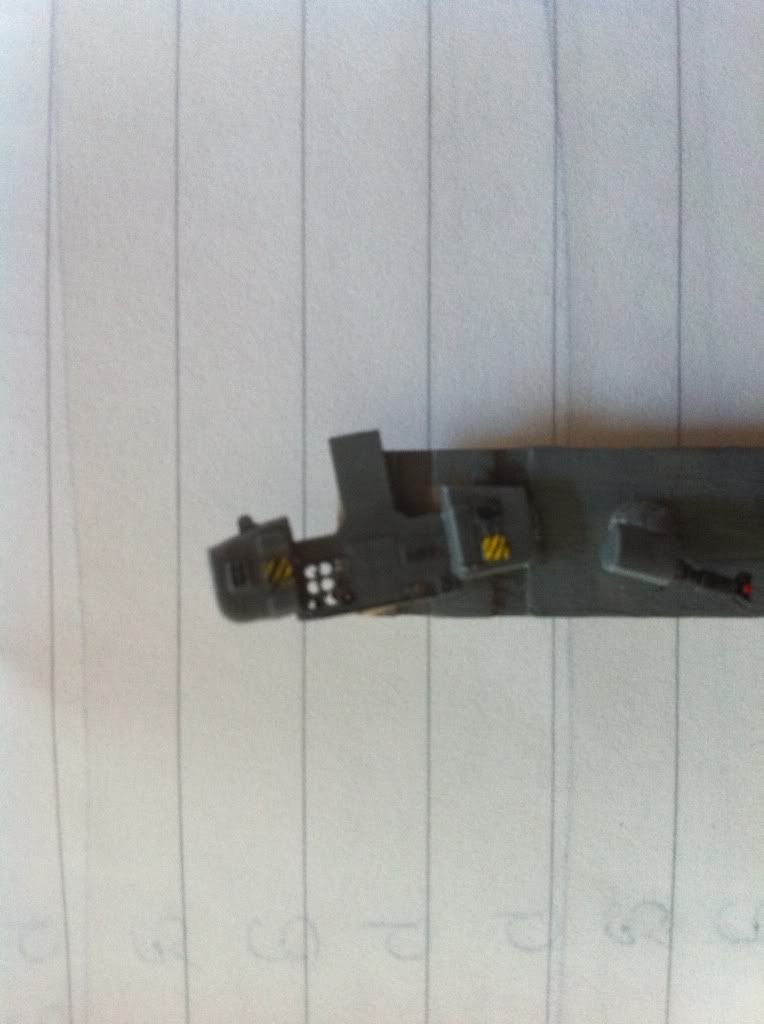

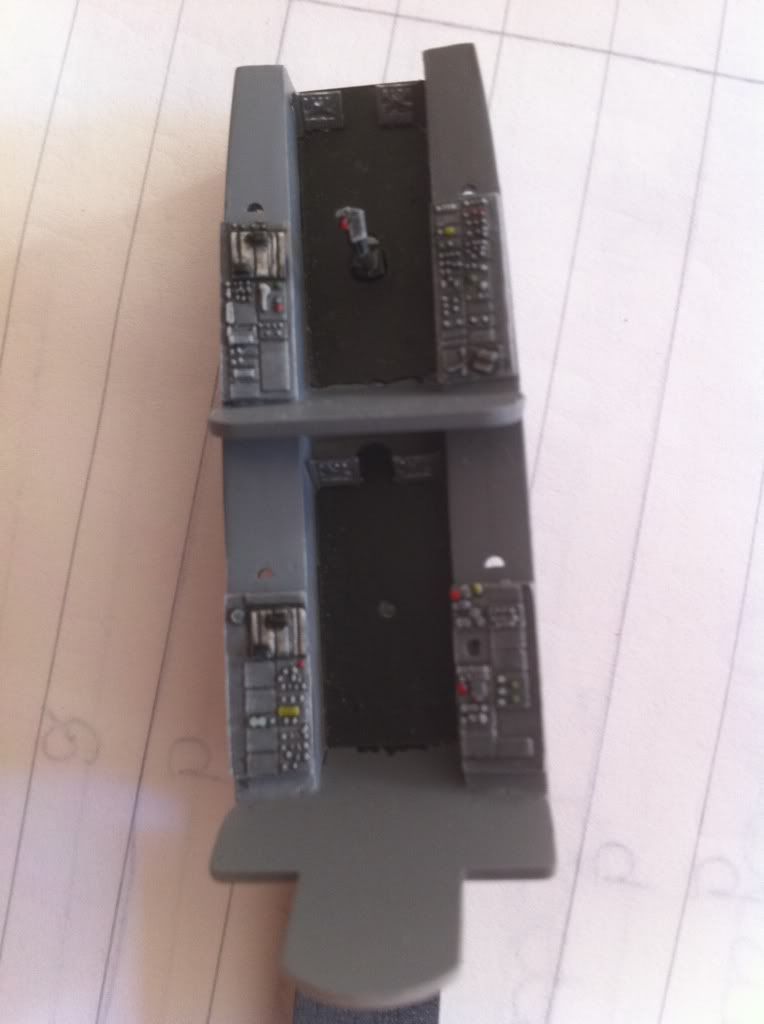

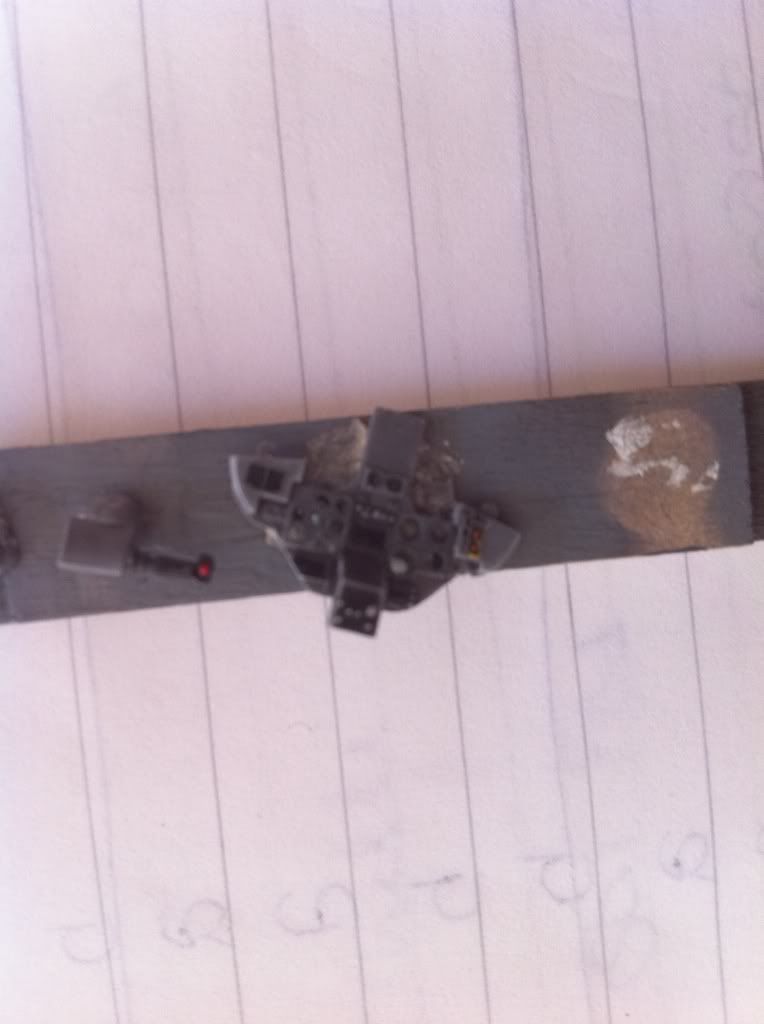

SaintsPhil Posted June 7, 2011 Author Share Posted June 7, 2011 Finally update time! Not had much time to work on this but I have about finished the pit, always my favourite part of a build! Painted in Vallejo model air US grey which I think is a pretty good scale match for Dk Admiralty Grey. Dry brushed in light grey and silver to bring out details and a dark wash on the panels. I tried something new for me on the IP and drilled out the instrument faces . I've added the kit decals to some sheet styrene to stick on the back of the IP. Hopefully the dials will show through. I'm a little concerned as the IP are quite thick but we'll see... Firstly sorry the pics are upside down and secondly sorry they are rubbish I only have my phone camera!! I've asked for an SLR for my birthday bit that's not till November! Bang seats are also nearly done just need a paint to arrive for the belts as I'm fed up of mixing and never getting near the right shade! Phil Link to comment Share on other sites More sharing options...

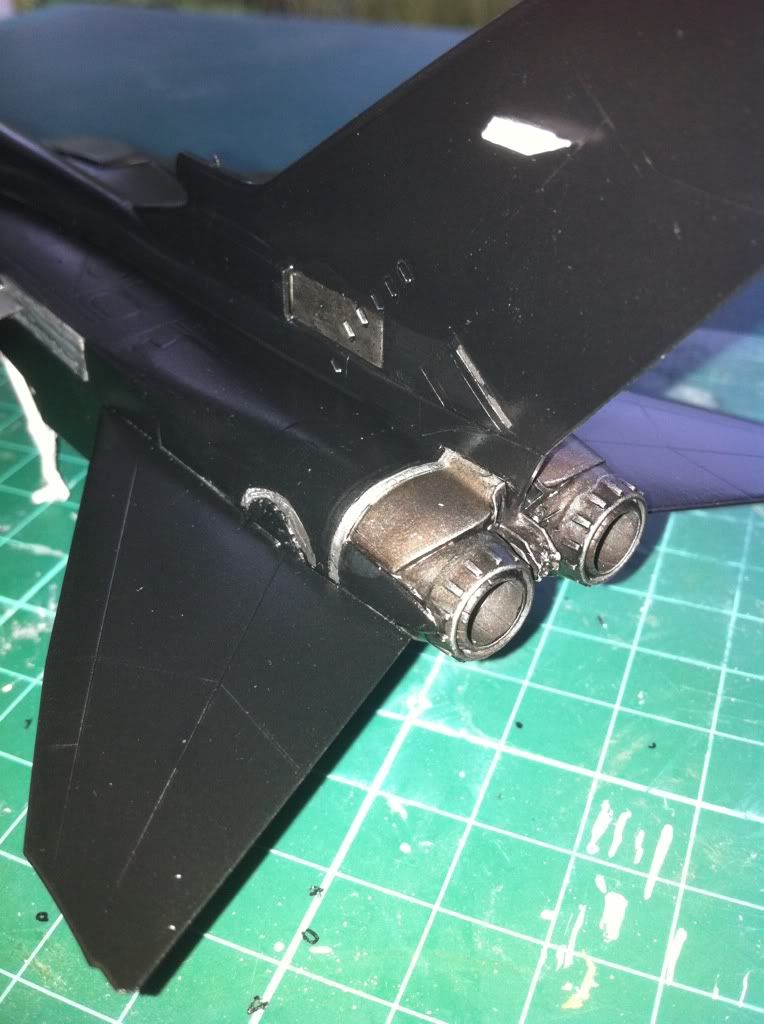

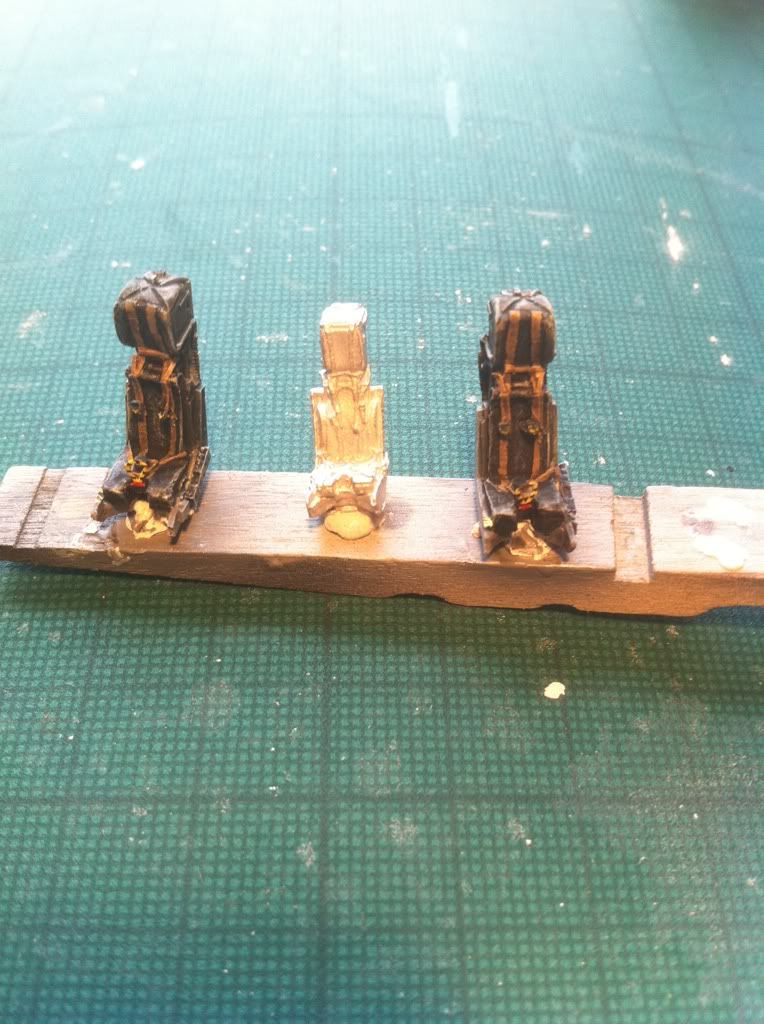

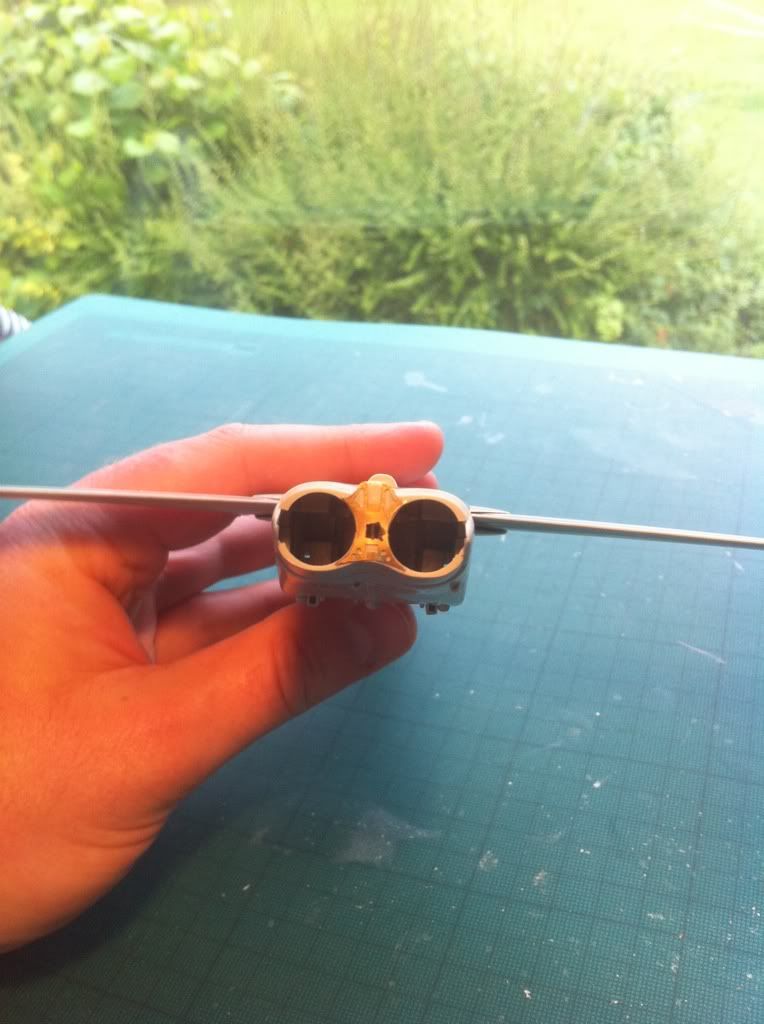

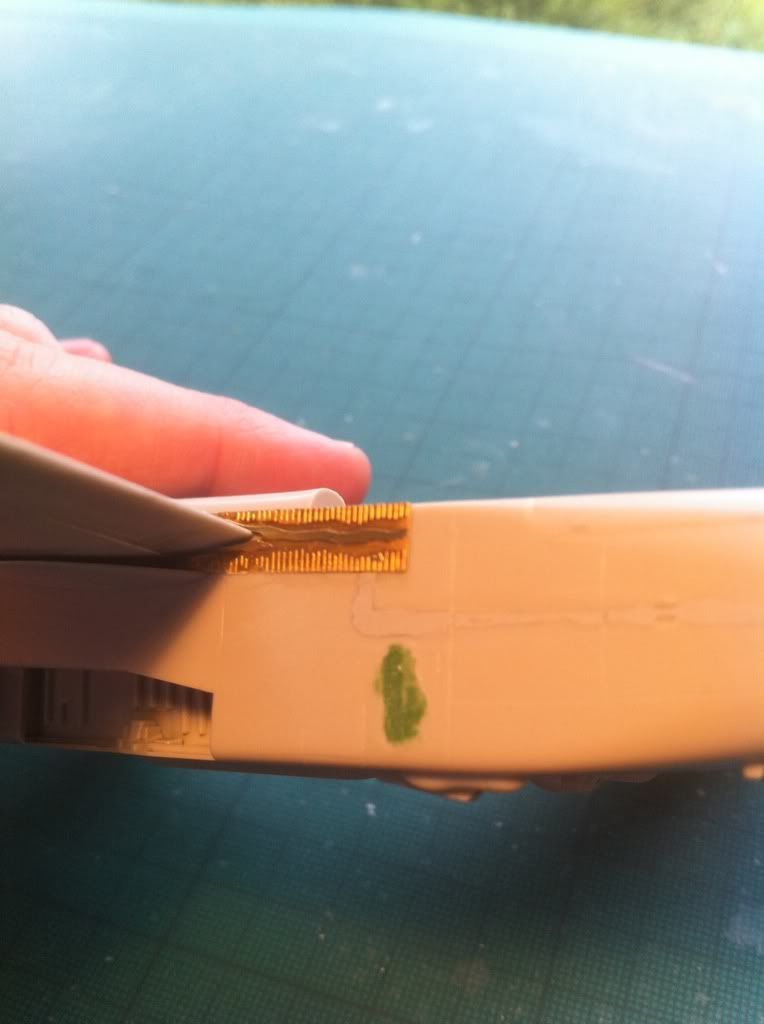

SaintsPhil Posted June 17, 2011 Author Share Posted June 17, 2011 Update time! Been slow progress due to work and social life getting in the way! Bang seats are finished These are airwaves seats as the flightpath ones are underscale, the one in the middle is a flightpath seat. They look very odd in the cockpit! Front section buttoned up with cockpit in. I took too much off when removing the GR style rear IP top half so had to add a base, for the replacement part to sit on, with styrene sheet. Front and rear sections joined and some sink holes filled. Not sure this kit is of the current Hasegawa standards, fit is not perfect and there are a few nasty sink holes. Some PE parts added too, wing seals here, and thrust reverser details That's it for now, next up to sort the seam between front and rear sections then the fin and rear horrizontal stabilisers, plus some more PE details. Thanks for looking! Phil Link to comment Share on other sites More sharing options...

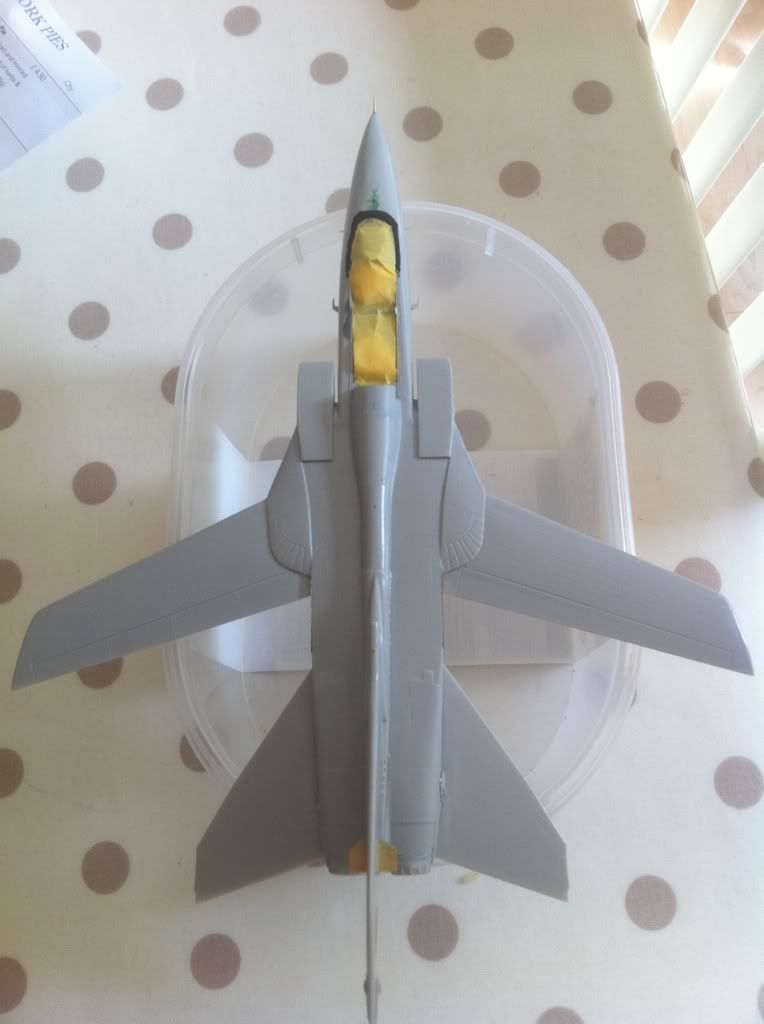

SaintsPhil Posted June 19, 2011 Author Share Posted June 19, 2011 Update: The last bits have gone together very easily. I've done some thing I don't normally do and added all the PE aerials etc as although I know I'll knock at least one off at some point I wanted to see if they looked part of the airframe that way. In between cutting the lawn I managed to get a coat of primer on it too! Tonights job mask canopy add add all the PE details to it! Next up paint! Link to comment Share on other sites More sharing options...
jacksdad Posted June 20, 2011 Share Posted June 20, 2011 Looking good Phil. It'll be nice to see an all black Tornado done. Steve Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 20, 2011 Author Share Posted June 20, 2011 Thanks Steve, hopefully you won't have to wait too long as there's not many bits to tidy up after primer...for once! Phil Link to comment Share on other sites More sharing options...

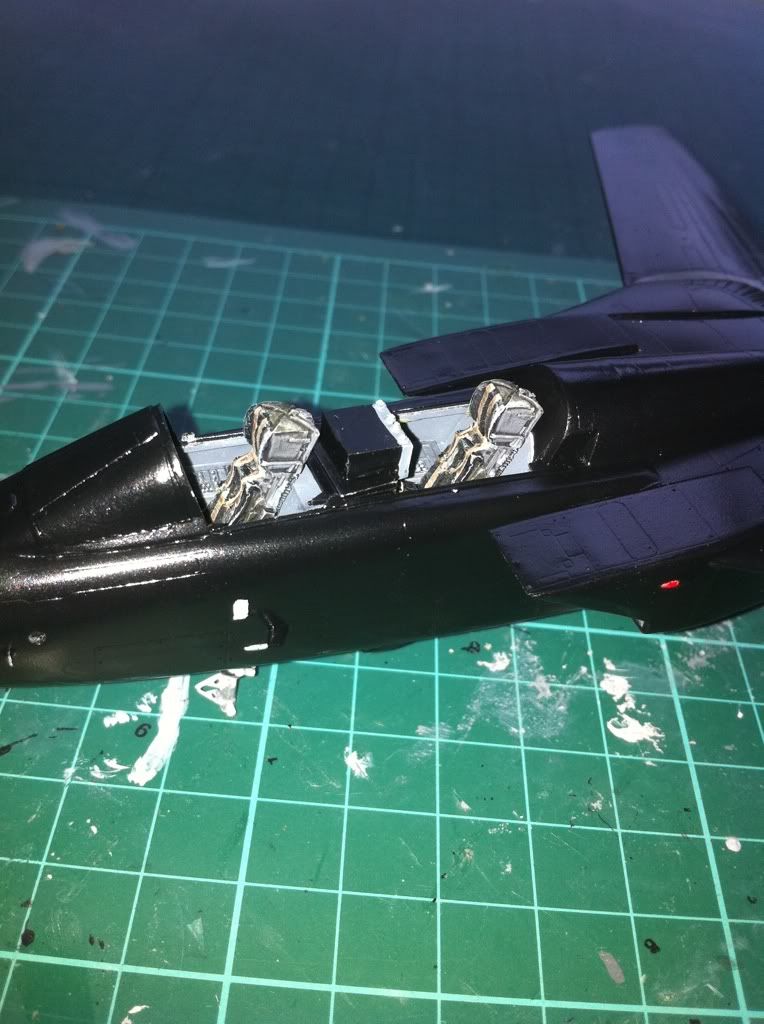

SaintsPhil Posted June 29, 2011 Author Share Posted June 29, 2011 Been a while since an update, I have been working on it on and off here's the progress so far! Paint is on shinny black after some quickshine! I sat the bang seats and rear IP in just to see how it looked! Decals next! My favourite part, I'm a little aprehensive as I'll need to use kit decals for stencils and I've read bad things about hasegawa decals!! I've invested in some Mr Softener and I'm going to do some tests on an old kit first. Wish me luck Phil Link to comment Share on other sites More sharing options...
jacksdad Posted June 29, 2011 Share Posted June 29, 2011 What is it about black aircraft? They just look so good. Looking good so far Phil. Steve Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 29, 2011 Author Share Posted June 29, 2011 They do look great, I've got an all black GR1, a Jag plus this and Black mike Phantom on the go for that GB as well! Only thing I find with black is it shows up all the imperfections! Phil Link to comment Share on other sites More sharing options...
jacksdad Posted June 29, 2011 Share Posted June 29, 2011 Only thing I find with black is it shows up all the imperfections!Phil Do you get imperfections on your kits? Link to comment Share on other sites More sharing options...
SaintsPhil Posted June 29, 2011 Author Share Posted June 29, 2011 Only the ones that were there in the plastic...... Link to comment Share on other sites More sharing options...
Dermo245 Posted June 29, 2011 Share Posted June 29, 2011 This is looking very tasty Phil.....makes me want to build that Black Hawk in my stash! (that's an RAF Hawk in black BTW, not the egg-beating Blackhawk) Cheers, Dermot Link to comment Share on other sites More sharing options...
SaintsPhil Posted July 11, 2011 Author Share Posted July 11, 2011 Disaster has struck! All the decals are finaly on, and I've coated with a sealing coat of Quickshine. BUT once this had dried the kit is covered in a White residue I can only assume this is from the decals solutions I've used! I thought I'd cleaned the model pretty well prior to varnish but I guess not.... Any one got any bright ideasof how to get rid of it, or am I destined to mask all the decals and re-spray? Phil Link to comment Share on other sites More sharing options...
jacksdad Posted July 11, 2011 Share Posted July 11, 2011 Aargh! What a nightmare. Not to sure what Quickshine is as I've never used it before. Something similar can happen with other gloss coats, sometimes as a result of the conditions during application. There have been times when I've had something similar happen to me and I've used Klear to re-coat and it has done the trick. Hopefully, someone else who's used Quickshine will be able to give you a definative answer. Steve Link to comment Share on other sites More sharing options...
