AnonymousAA72 Posted March 6, 2011 Share Posted March 6, 2011 I'm in the process of building my Hobbyboss Tornado F3 and am at the point where I need to consider stores. She's going to be fairly clean (oo-er Mrs!) , with just the underwing and missile pylons. Question is regarding BOL rails, I've borrowed a pair from Hasegawa's Harrier GR7 kit, and these are quite long, in fact they are considerable longer than the 'winder/ASRAAM pylons of the HB kit. Anyone (Spike?) have any details on the Tornado BOL rails? Dimensions would be handy. Assuming that all 'winders are the same length I would have thought that 'winder pylons would all be of a similar length too? So would BOL rails be the same? Link to comment Share on other sites More sharing options...
spike7451 Posted March 6, 2011 Share Posted March 6, 2011 (edited) I think they're the standard one's robbed off the F-3. The BOL rails were a bit longer due to the add ons for the chaff cutter ect. Afraid I have no details as to length but I can ask Bilvers on FB,who's a SNEC bombhead still in. I found this pic tho Bill, Data sheet; http://products.saabgroup.com/pdbwebnew/Ge...les&Id=7850 http://www.anft.net/f-14/f14-detail-lau138.gif Edited March 6, 2011 by spike7451 Link to comment Share on other sites More sharing options...
AnonymousAA72 Posted March 6, 2011 Author Share Posted March 6, 2011 I think they're the standard one's robbed off the F-3. The BOL rails were a bit longer due to the add ons for the chaff cutter ect. Afraid I have no details as to length but I can ask Bilvers on FB,who's a SNEC bombhead still in.I found this pic tho Bill, Data sheet; http://products.saabgroup.com/pdbwebnew/Ge...les&Id=7850 http://www.anft.net/f-14/f14-detail-lau138.gif Thanks Merv., very helpful as ever.... Link to comment Share on other sites More sharing options...
Bomb'ed Posted March 7, 2011 Share Posted March 7, 2011 Thanks Merv., very helpful as ever.... The BOL-304's are slightly(not by much) longer than the standard LAU-7A. As they fit on the same stub pylon the location points on the BOL are exactly the same as for the LAU-7A. However the BOl launchers from the GR9 kit do differ on GR4/F-3 The gas bottle on the front (NAGB) has a kink init for Tornado, If you google F-3 you'll see it. I can't attatch phots from work sadley. Link to comment Share on other sites More sharing options...

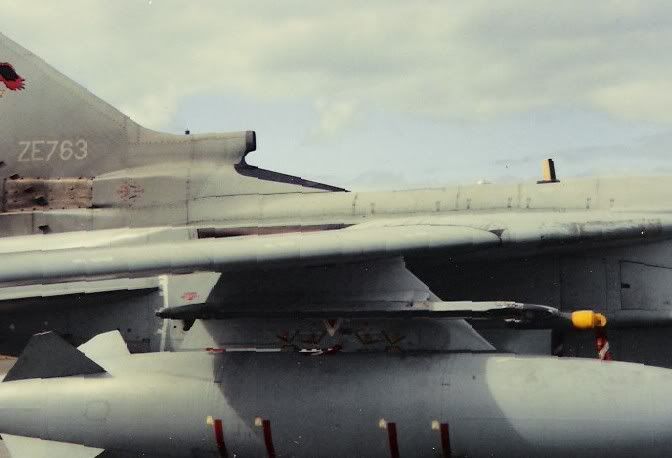

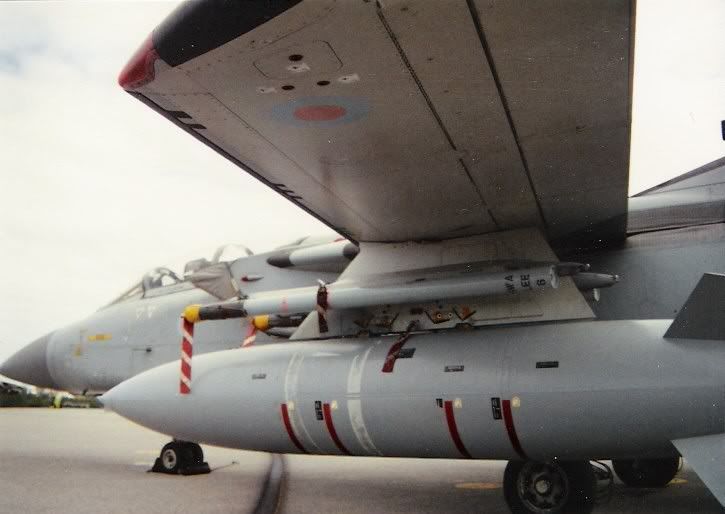

Don McIntyre Posted March 7, 2011 Share Posted March 7, 2011 Don't know if these photos will help to answer your questions or not. I took these in the early 1990s. http://s20.photobucket.com/albums/b229/DDonSS3/Tornado%20F3/ Link to comment Share on other sites More sharing options...
Stephen Posted March 7, 2011 Share Posted March 7, 2011 Any help? Stephen Link to comment Share on other sites More sharing options...
spike7451 Posted March 7, 2011 Share Posted March 7, 2011 Don't know if these photos will help to answer your questions or not. I took these in the early 1990s.http://s20.photobucket.com/albums/b229/DDonSS3/Tornado%20F3/ They're just your standard AIM-9 launcher mate. Link to comment Share on other sites More sharing options...
Don McIntyre Posted March 10, 2011 Share Posted March 10, 2011 They're just your standard AIM-9 launcher mate. Thanks, Spike. I don't know a whole lot about Tornadoes, especially those detail bits. Thank you for the info. Link to comment Share on other sites More sharing options...
