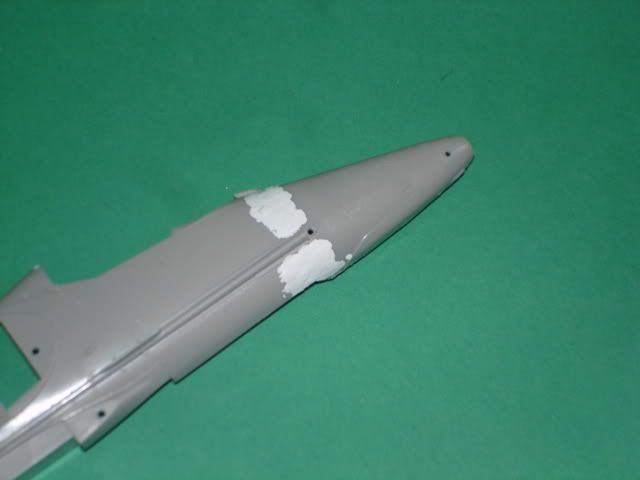

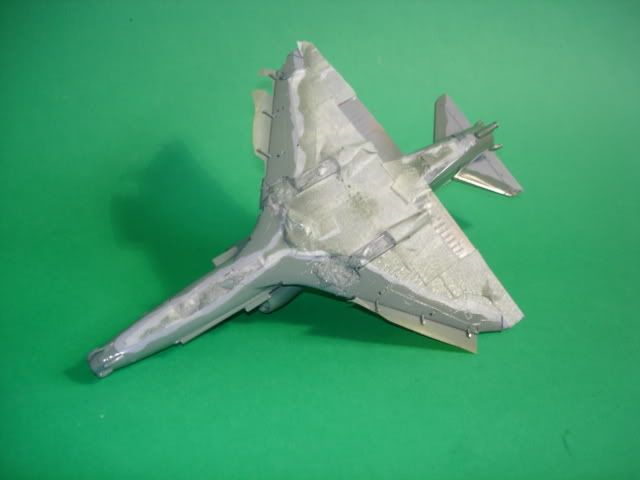

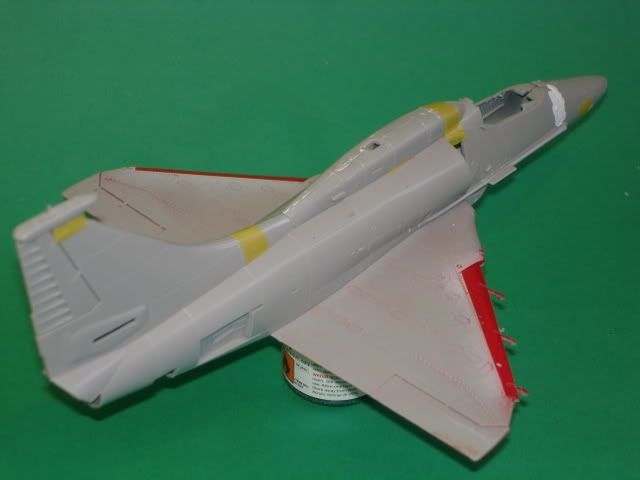

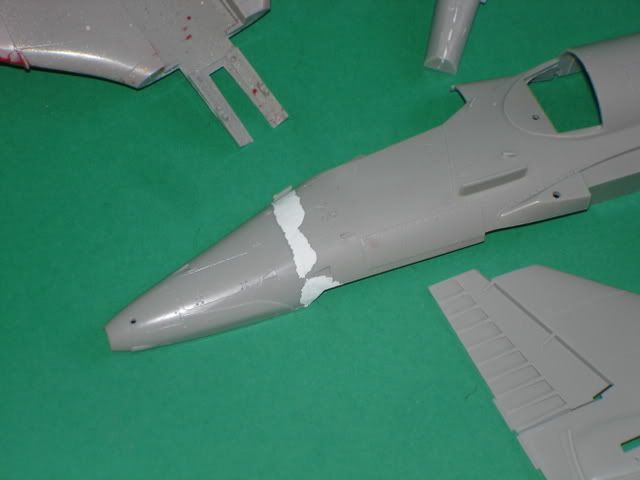

Ian Posted September 17, 2007 Share Posted September 17, 2007 (edited) Building this puppy for the JSDF Group Build over on the What If Site. So here's the gratuitous box-shot together with the Hasegawa JASDF Weapons Set, which may or may not be used on this project ! And here are the opening 'shots' in the battle. The capped centreline fuel tank - scratchbuilt with a little plastic card. Well yes now that you mention it the nose section does need a wee bit of blending. Gotta love T I P P E X. And here it is all taped up. Since I took these shots about ten days back, I've changed my mind about the slats and am going to model them shut. As ever all comments, questions and crits are welcomed. Thanks for looking. Ian Edited October 17, 2007 by Ian Link to comment Share on other sites More sharing options...
David_in_Fremont Posted September 17, 2007 Share Posted September 17, 2007 Off to a good start, Ian! I've got a Scooter on the bench at the moment myself that I'll be doing in a lo-viz scheme. I'll be sure to keep an eye here for anything I can steal... er, borrow... uhhh learn! Link to comment Share on other sites More sharing options...

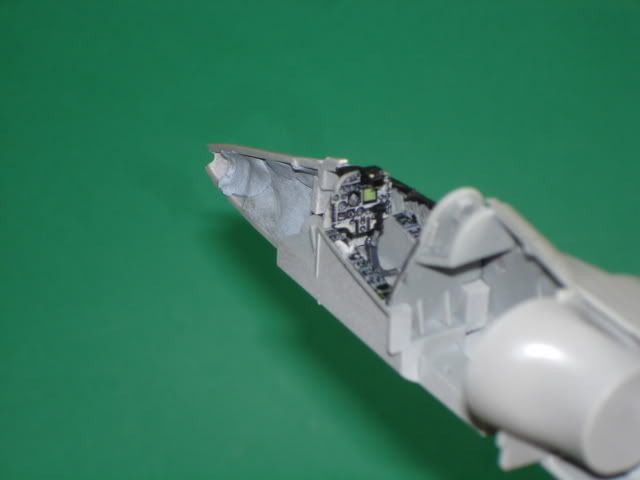

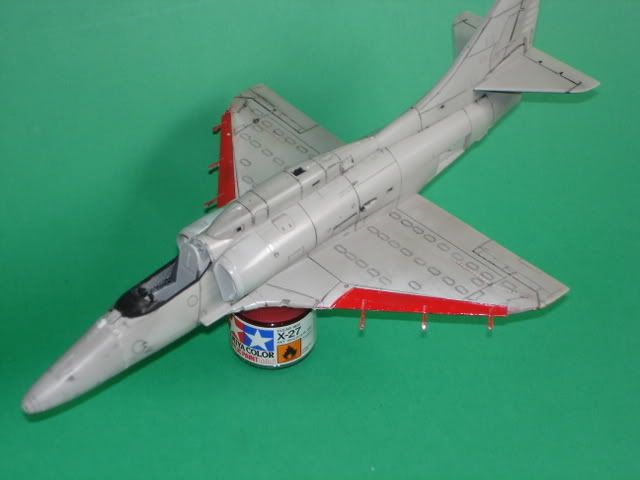

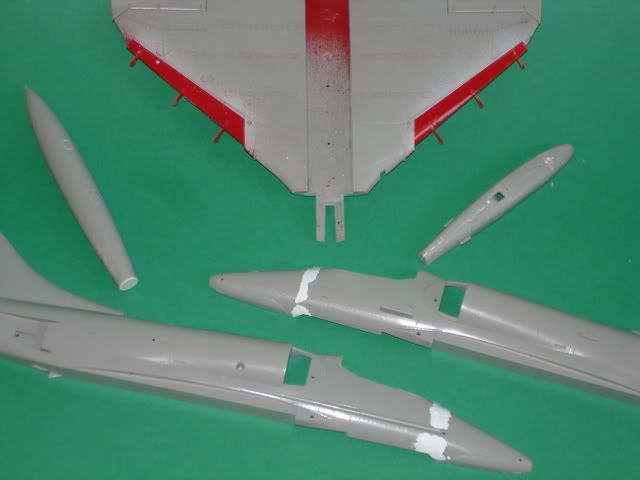

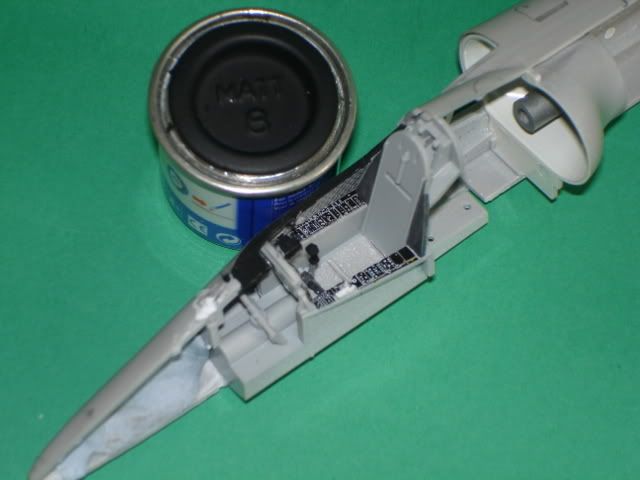

Ian Posted September 19, 2007 Author Share Posted September 19, 2007 (edited) Todays progress: Self explanatory cockpit shots before they disapear for good ! And here it is all buttoned-up, but obviously not filled/rubbed-down. I always run a black wash before major construction to aid my tired old eyes when it comes to rescribing the lost detail later-on. Finally: Going for an asymetric loadout, the inner pylons have been 'adapted' to carry British pattern tandem stores panniers. All just pushed into place for the photo. Ian Edited October 17, 2007 by Ian Link to comment Share on other sites More sharing options...
entlim Posted September 19, 2007 Share Posted September 19, 2007 Lookin' good mate! Link to comment Share on other sites More sharing options...
Bandwagon 106 Posted September 20, 2007 Share Posted September 20, 2007 Coming on very nicely Ian. I will not start another Skyhawk until VA-153 & VMA-211 are finished (write out 100 times). I would call this project 'a nearly' because the Skyhawk was considered by so many nations throughout its career. Oh yeah, got the Victory Corsair decals last week, very nice. Keep up the good work mate Joel Link to comment Share on other sites More sharing options...

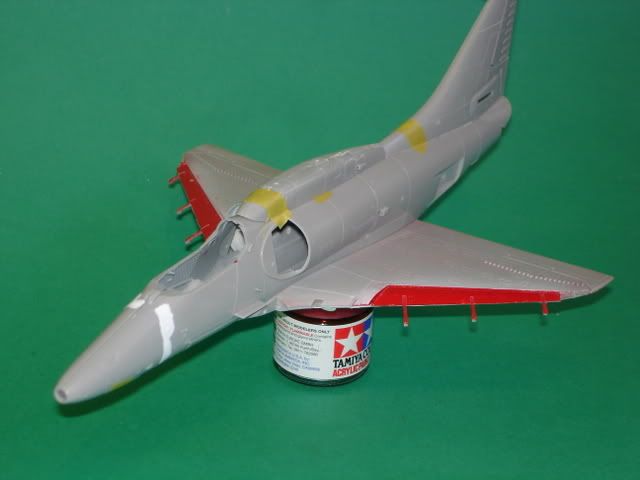

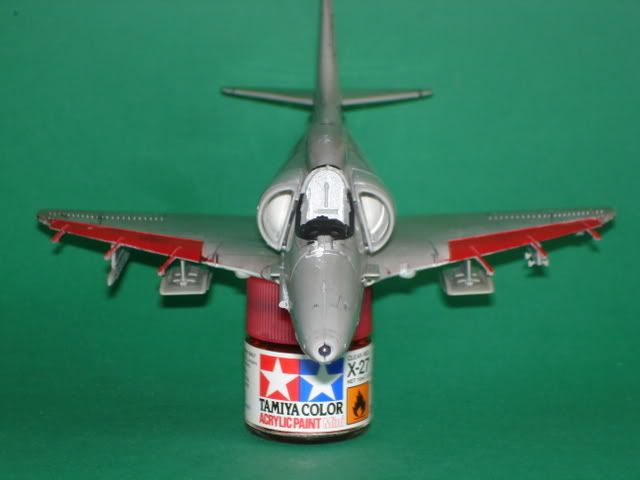

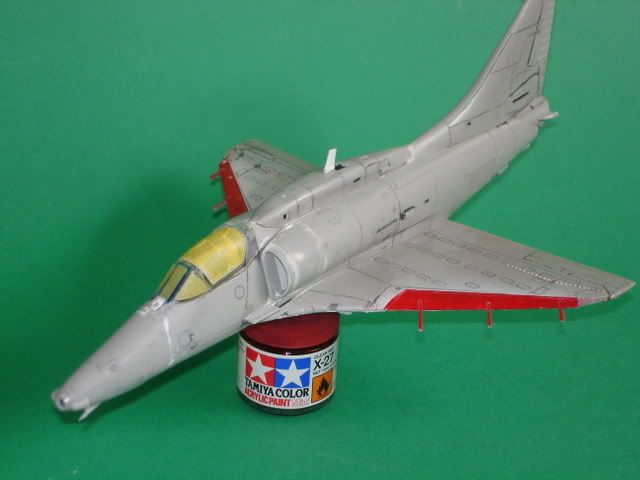

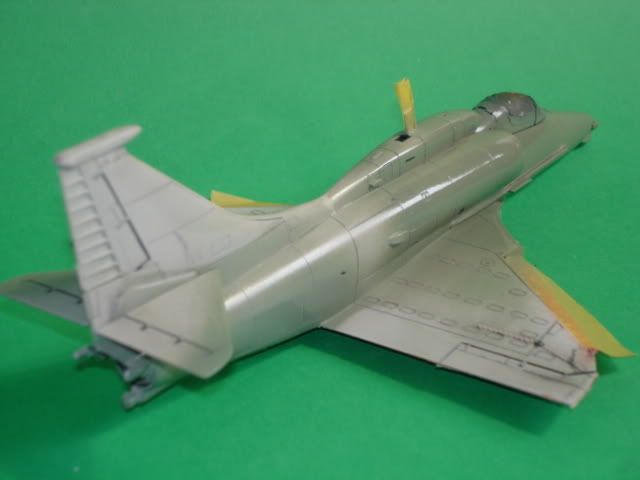

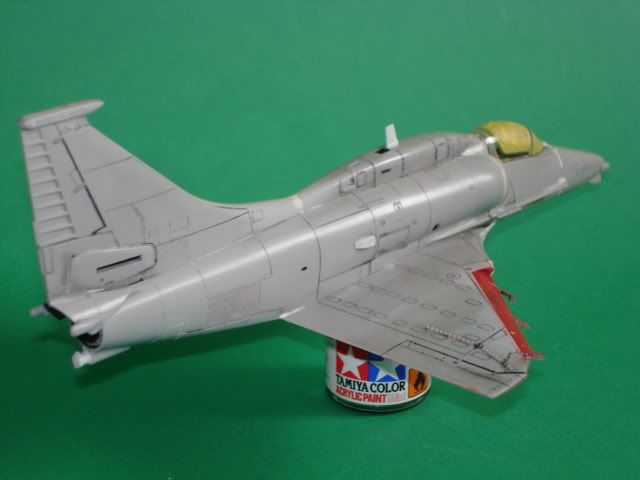

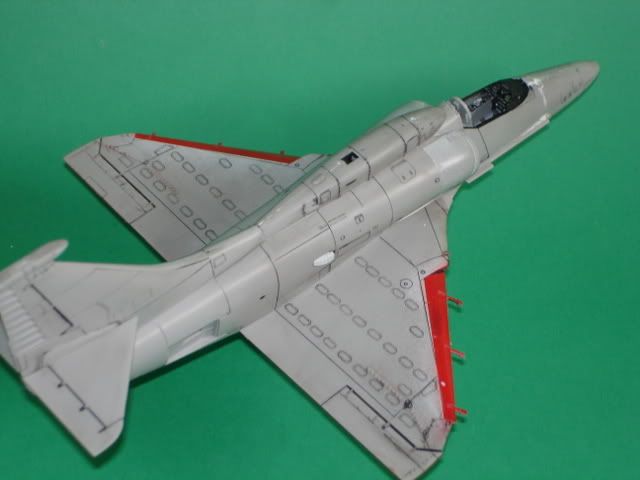

Ian Posted September 20, 2007 Author Share Posted September 20, 2007 (edited) Ready now for a trip to the paint-shed. Ian Edited October 17, 2007 by Ian Link to comment Share on other sites More sharing options...
Col. Posted September 20, 2007 Share Posted September 20, 2007 Crack on then Ian! Having seen your other Whif's I'm intrigued by this one. Link to comment Share on other sites More sharing options...
Hector Posted September 20, 2007 Share Posted September 20, 2007 Nice and very fast. Regards. Héctor Link to comment Share on other sites More sharing options...
entlim Posted September 20, 2007 Share Posted September 20, 2007 Keep it up! Link to comment Share on other sites More sharing options...
Ian Posted September 20, 2007 Author Share Posted September 20, 2007 (edited) Crack on then Ian! Having seen your other Whif's I'm intrigued by this one. Not for long time ; I start my round of duty in the morning, then got our two weeks in Germany, starting Tuesday afternoon, then a very short return to normality, then a communications course, then the Nationals..... Then I'll take a wee nap ! Ian Edited September 20, 2007 by Ian Link to comment Share on other sites More sharing options...

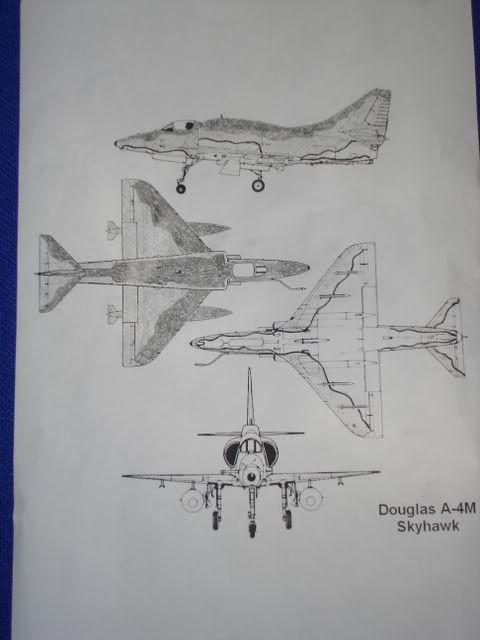

Ian Posted October 17, 2007 Author Share Posted October 17, 2007 Quite a lot has happened since I last posted, so here without any further provarication, is..... The colours evolved through my as yet unpublished Alternative History of a resurgent militarist Japan locking horns with a still communist Soviet Union in the mid-eighties. Long story shortened, the disputed Kuril Islands become a battle ground and my Skyhawk (and previously seen Sea Harrier) are involved. Because the transit to the islands is over the dark bluey grey/green northern Pacific then the colours used should reflect this. I decided to utilise all RAF tones - not necessarily current colours :- The lightest tone over 80% of the underside and the centreline drop-tank is Medium Sea Grey (MSG). The next lightest, counter-shading the underside, beneath the intakes and on the rear fuselage is Light Slate Grey (LSG). The next lightest covering 60% of the upper surfaces is Ocean Grey (OG) and the final darkest tone is RAF Blue Grey (B/G). The pattern came to me quite easily and was just about right after three attempts - I have based it on the pattern used by the first A-4/TA-4's seen in low vis greys in the mid to late eighties. Ian Link to comment Share on other sites More sharing options...

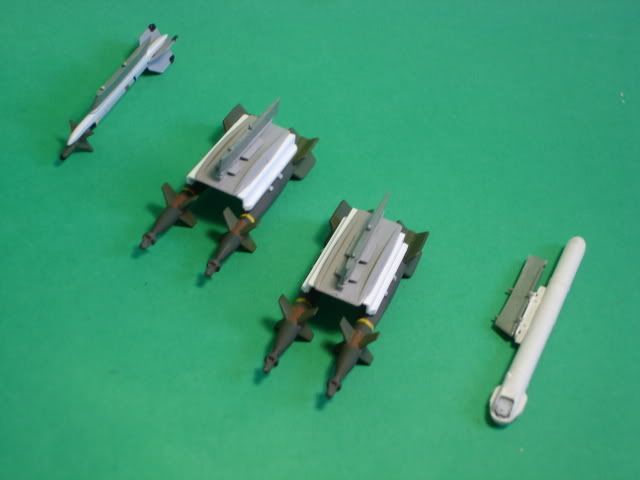

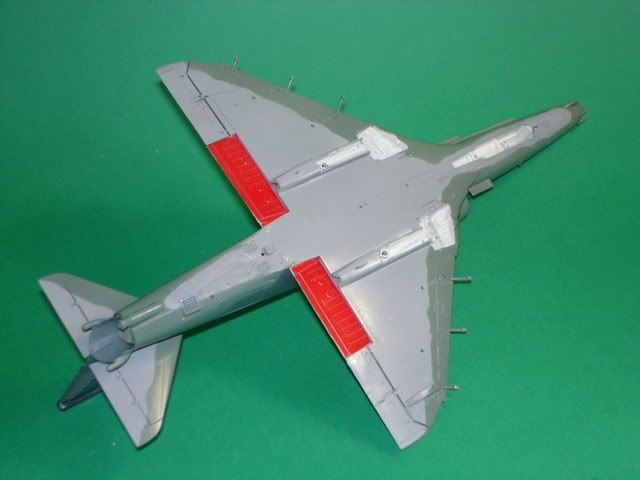

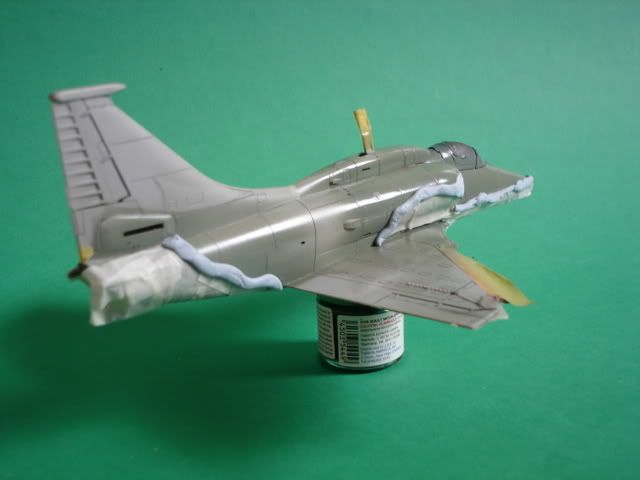

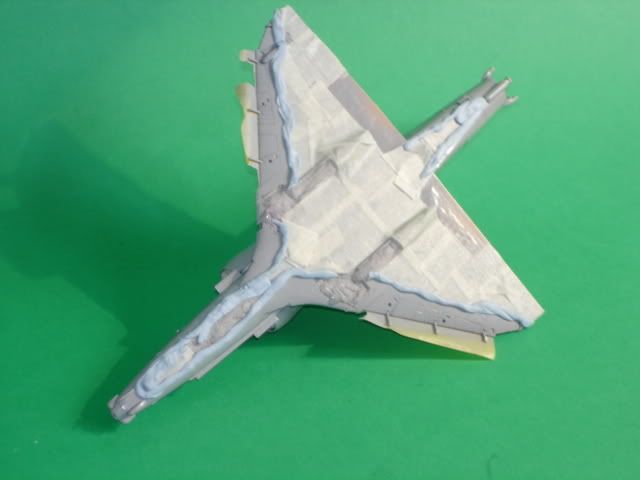

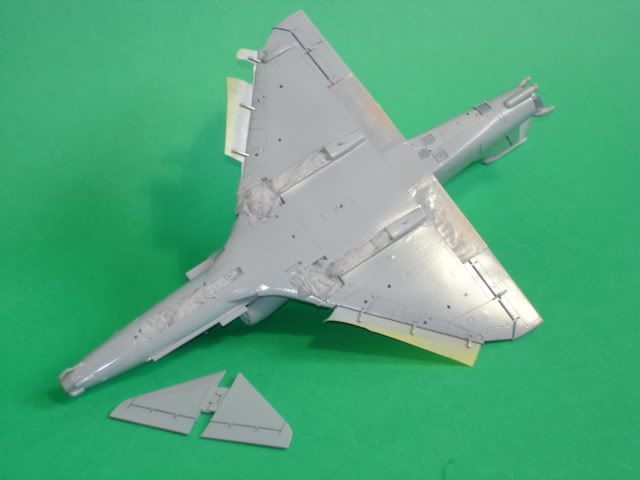

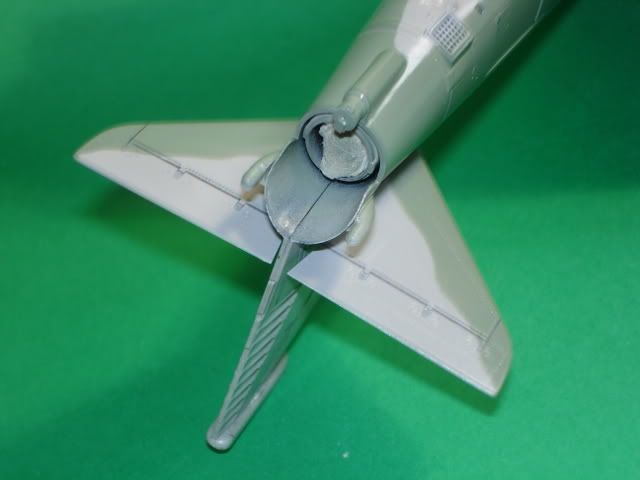

Ian Posted October 17, 2007 Author Share Posted October 17, 2007 OK, MSG went on first, then masked ready for the Light Slate Grey (LSG) Next the LSG was sprayed/masked under the leading edge of the wing to about 25% chord, also on the forward & rear fuselage and the intake flanks. As this is written, the RAF Blue /Grey is drying in the Autumn sunshine. Hopefully I can post some more progress photos tomorrow. In the meantime here's the loadout. As you can see the tandem panniers have had to be 'adapted a wee bit ! Thanks for looking. Ian Link to comment Share on other sites More sharing options...
Gary West Posted October 17, 2007 Share Posted October 17, 2007 Eeeey that's loookin reet fine Ian. Love the double bomb racks. Link to comment Share on other sites More sharing options...
Hector Posted October 18, 2007 Share Posted October 18, 2007 Looks great Ian, for me better than the previous one that you post. Regards. Héctor Link to comment Share on other sites More sharing options...

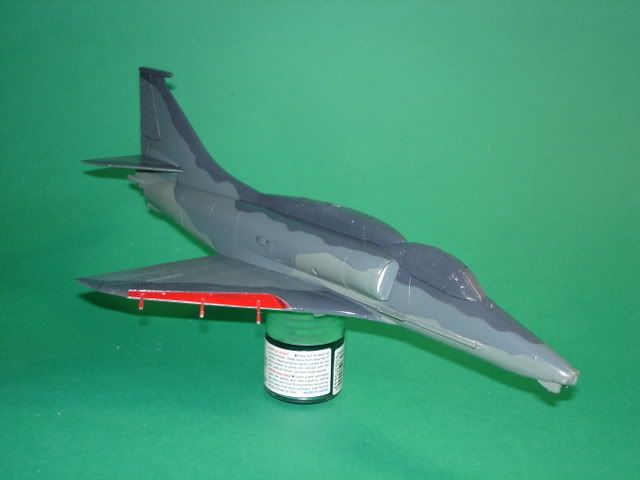

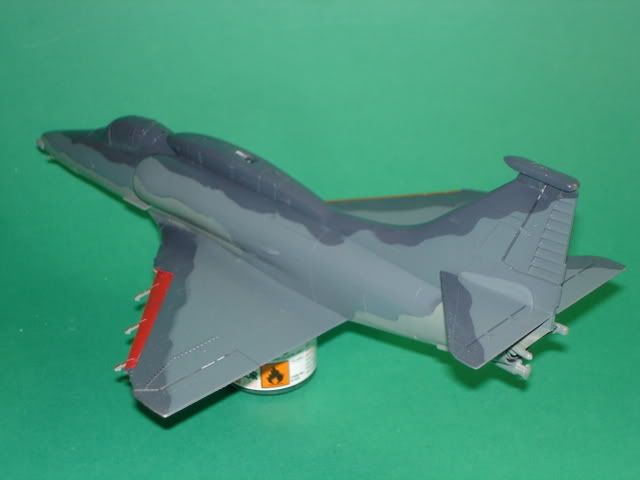

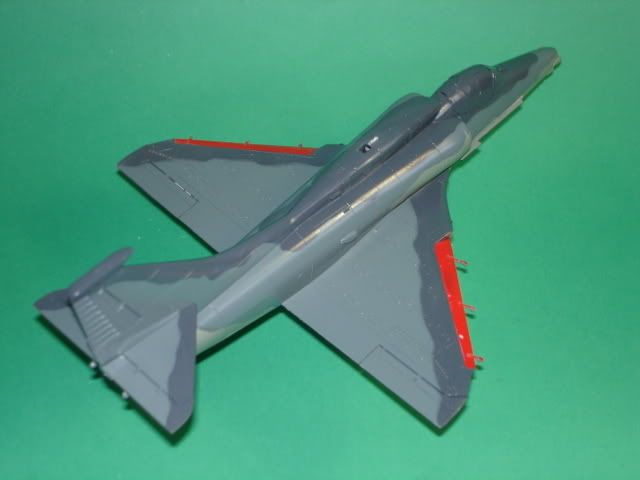

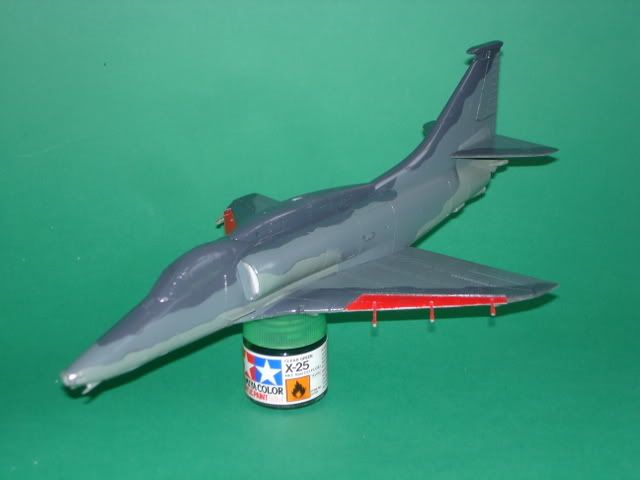

Ian Posted October 18, 2007 Author Share Posted October 18, 2007 Paint done ! The light & flash set-up exagerates the tonal difference between the RAF Blue/Grey and Ocean Grey. It should calm down when the thing is matted down later. Right.... on to the decals ! Ian Link to comment Share on other sites More sharing options...
Hector Posted October 18, 2007 Share Posted October 18, 2007 Nice , very very nice. Regards. Héctor Link to comment Share on other sites More sharing options...
hatchet Posted October 18, 2007 Share Posted October 18, 2007 That's a damn fine looking camouflage Ian! If I ever get around to doing a Japanese Tornado, with your permission, I'll pilfer that scheme! Link to comment Share on other sites More sharing options...
Gary West Posted October 18, 2007 Share Posted October 18, 2007 Almost a touch of Brazilian Navy there Ian Link to comment Share on other sites More sharing options...
David_in_Fremont Posted October 18, 2007 Share Posted October 18, 2007 Ian, that camo scheme is smashing! My only itty comment is: Most countries that went with camo schemes on their scooters carried that over to the wing slats, foregoing the red. Yours is a W-If however, so the Japanese in your world did it any way they chose. It's a very cool look you've created! Link to comment Share on other sites More sharing options...
KiwiSteve Posted October 21, 2007 Share Posted October 21, 2007 Great looking camo scheme on the scooter Ian Link to comment Share on other sites More sharing options...

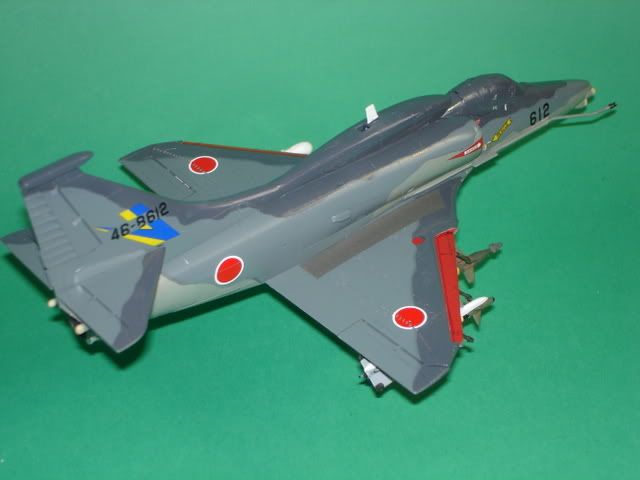

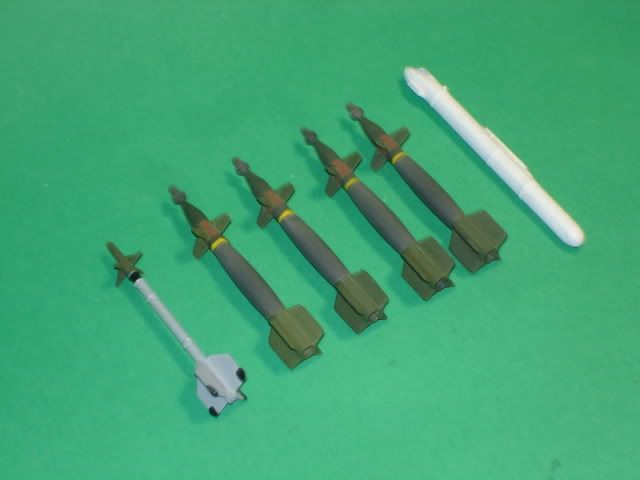

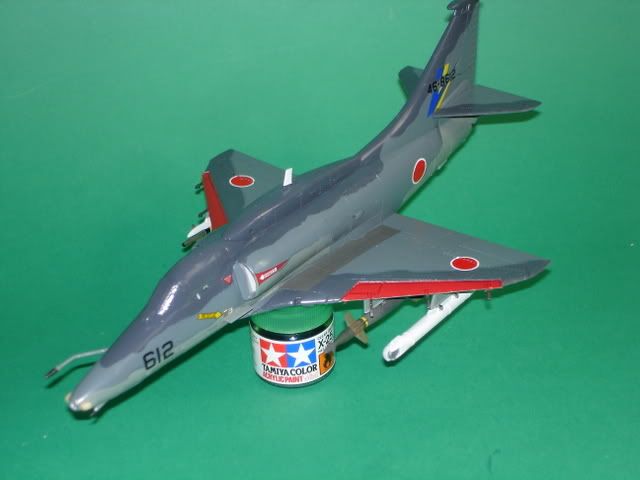

Ian Posted October 22, 2007 Author Share Posted October 22, 2007 As you can see I changed my mind about two things. The slats will be deployed and the loadout just looked WRONG. So I ditched the panniers idea and loaded just one GBU under each wing.... looks much better. Next an oil wish into the panel lines. Ian Link to comment Share on other sites More sharing options...
Hector Posted October 22, 2007 Share Posted October 22, 2007 Japanese , Ian, great job you´ve done, Which is your next victim? Regards. Héctor Link to comment Share on other sites More sharing options...
hatchet Posted October 22, 2007 Share Posted October 22, 2007 You're right, does look better with single Paveways. What will be on the centerline? Great build Link to comment Share on other sites More sharing options...
Hawkeye's Hobbies Posted October 29, 2007 Share Posted October 29, 2007 I just crack the box open of one I am going to build. Not sure what scheme yet, but what I want to do is one undergoing total overhaul. Wish Eduards would do a PE set that include all of the inspection panels on the upper wing. I'd like to open all of them up. I saw a picture somewhere online of one undergoing restoration at a museum. The wing was being re-mated to the fuselage. Which opens all kinds of diorama possibilities. Link to comment Share on other sites More sharing options...
aeroplanedriver Posted October 30, 2007 Share Posted October 30, 2007 (edited) Great looking camo Ian! I was wondering how the gear doors would work with the twin bomb rack, but the single carriage looks great! Definate contender for the JSDF GB!! Edited October 30, 2007 by aeroplanedriver Link to comment Share on other sites More sharing options...
