AnonymousAA72 Posted September 16, 2009 Share Posted September 16, 2009 ..one of them questions that I should (and probably do!) know, but when was the IFF antennae added to Spitfires? The one's that go from the roundel to the tail plane. I'm building an early-ish Mk1 with the early mast type aerial - whether that would have any bearing on the answer or not.... Cheers Link to comment Share on other sites More sharing options...
Super Aereo Posted September 16, 2009 Share Posted September 16, 2009 Some good info here: Spitfiresite Link to comment Share on other sites More sharing options...
AnonymousAA72 Posted September 16, 2009 Author Share Posted September 16, 2009 Some good info here: Spitfiresite Fantastic! Many thanks - thats answered my question nicely! Link to comment Share on other sites More sharing options...

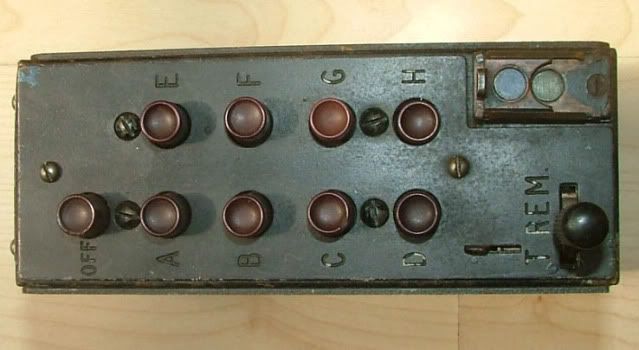

LDSModeller Posted September 17, 2009 Share Posted September 17, 2009 Slightly off topic, but if you are building a Spitfire with the TR9 series radio switch controller, it should be on the Port side of cockpit and is not the push button type I have seen moulded by some companies If you click on this link and scroll down you can see the TR9 Radio control types, Note TR9D especially TR9 Radio control The TR 1133 photos The TR1133 would have been located on the Port side also Of note for aircraft using the TR9D radio set, there was only the aerial between the mast and rudder post, had a range of around 30-40 miles. The TR1133 just had the mast with the aerial inside it, other aircraft types had the aerial for the TR1133 located on the lower fuselage generally near the main undercart. If you are doing an early Spitfire Mk I, if it was before the Battle Of Britain it would have had the TR9 depending on the time period would determine the radio set (eg TR9/C/D) and thus the aerial(s) carried. Hope that helps Alan Link to comment Share on other sites More sharing options...
AnonymousAA72 Posted September 17, 2009 Author Share Posted September 17, 2009 Slightly off topic, but if you are building a Spitfire with the TR9 series radio switch controller,it should be on the Port side of cockpit and is not the push button type I have seen moulded by some companies If you click on this link and scroll down you can see the TR9 Radio control types, Note TR9D especially TR9 Radio control The TR 1133 photos The TR1133 would have been located on the Port side also Of note for aircraft using the TR9D radio set, there was only the aerial between the mast and rudder post, had a range of around 30-40 miles. The TR1133 just had the mast with the aerial inside it, other aircraft types had the aerial for the TR1133 located on the lower fuselage generally near the main undercart. If you are doing an early Spitfire Mk I, if it was before the Battle Of Britain it would have had the TR9 depending on the time period would determine the radio set (eg TR9/C/D) and thus the aerial(s) carried. Hope that helps Alan Thanks Alan, It all adds to the overall picture! I'm building an early 92 Sqn Mk.I GR:U N3290, based at Hornchurch May/June 1940. According to the "On Target Profiles No 4" it certainly has the earlier post mast and aerial between the mast and the rudder post- so this would appear to have the TR9D. Thanks again - muchly appreciated!! Link to comment Share on other sites More sharing options...
Edgar Posted September 17, 2009 Share Posted September 17, 2009 Just to add a little more, the I.F.F. destructor circuit buttons would not have appeared in a Battle of Britain airframe. Supermarine didn't start to fit the equipment until 28-12-40. Edgar Link to comment Share on other sites More sharing options...
AnonymousAA72 Posted September 17, 2009 Author Share Posted September 17, 2009 Just to add a little more, the I.F.F. destructor circuit buttons would not have appeared in a Battle of Britain airframe. Supermarine didn't start to fit the equipment until 28-12-40.Edgar Many thanks Edgar Link to comment Share on other sites More sharing options...
