ollieholmes Posted December 23, 2008 Share Posted December 23, 2008 I thought i would start a new progress thread for this one so here goes. Im going to use the Italeri Spitfire IX kit with the AMC models conversion kit to make a floatplane. This should make a very interesting model once complete. So first things first the Italeri fuesalage: Box art for the conversion: Decal sheet: And the parts: Link to comment Share on other sites More sharing options...
ollieholmes Posted January 8, 2009 Author Share Posted January 8, 2009 A bit more progress on this one. Floats are now ready to be joined to the wing: And all the filling for now is done on the wing: Link to comment Share on other sites More sharing options...
TonyT Posted January 8, 2009 Share Posted January 8, 2009 I just saw a photo of that me thinks......... Link to comment Share on other sites More sharing options...
ollieholmes Posted January 8, 2009 Author Share Posted January 8, 2009 I just saw a photo of that me thinks......... A photo of the full size thing? I would be interested in seing it if you did. Link to comment Share on other sites More sharing options...
TonyT Posted January 8, 2009 Share Posted January 8, 2009 A photo of the full size thing? I would be interested in seing it if you did. Dang was a Mk V version from the thread on pprune http://www.pprune.org/aviation-history-nos...-merged-13.html Link to comment Share on other sites More sharing options...
Doug Rogers Posted January 9, 2009 Share Posted January 9, 2009 (edited) I don't think there are many pictures of the MkIX Floatplane around, in fact I think the only one I've seen of it is the one on the AMC box cover. I've got this conversion to do as well Ollie, so I'll be interested to see how you get on. What was the join like for the tail section, I'm not sure which donor kit to use as they vary considerably in thickness in the tail cross section. I'm intending to use an ICM kit, but they have relatively slender tails and I don't want a 'step' in the join if I can avoid it. Edited January 9, 2009 by Doug Rogers Link to comment Share on other sites More sharing options...
AnonymousDFB1 Posted January 9, 2009 Share Posted January 9, 2009 Now this will be a bit different Link to comment Share on other sites More sharing options...

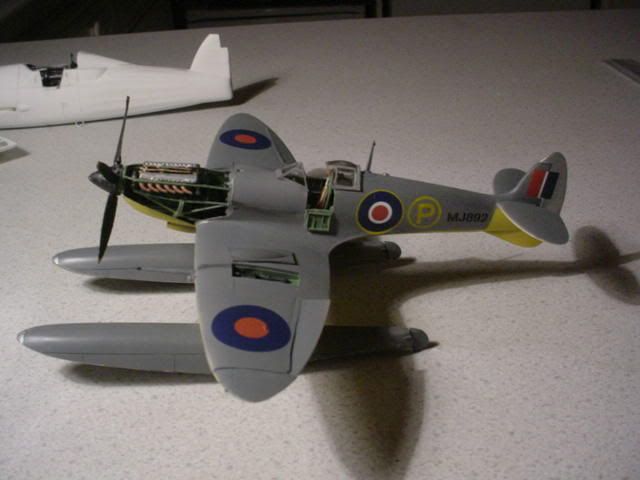

perry Posted January 9, 2009 Share Posted January 9, 2009 Here is the same conversion I did a while back using an ICM kit as donor. The only problem I found was the resin tail which is much thicker than the fuselarge of the ICM. I ended up cutting the bottom fin from the resin tail and glueing and filling to the bottom of the kit tail. Seemed a much easier option than trying to sand the 'step' away. Glad to see you've pinned the floats so that you can attach the floats to the lower wings Ollie, those resin floats are very heavy and you'd struggle to glue them and make them stay in place without Pez Link to comment Share on other sites More sharing options...
Doug Rogers Posted January 9, 2009 Share Posted January 9, 2009 That looks nice Perry, you were brave doing the engine as well! Link to comment Share on other sites More sharing options...
ollieholmes Posted January 9, 2009 Author Share Posted January 9, 2009 Ive pinned all the resin parts apart from the Tail section to the fuesalage. Dont ask about the step around the rear fuesalage. There is a fairly obvious one there even after sanding back the fuesalage as much as i dare. Im just going to finish it and hope no one looks to closely. Maybe in time i will rebuild it. Link to comment Share on other sites More sharing options...
bexwh773 Posted January 9, 2009 Share Posted January 9, 2009 This is one you dont see very often Ollie Looking good so far Bex Link to comment Share on other sites More sharing options...
