Airfix 1:72 Avro Vulcan B.2, 101 Squadron, RAF Waddington, c.1973.

[dr_gn]

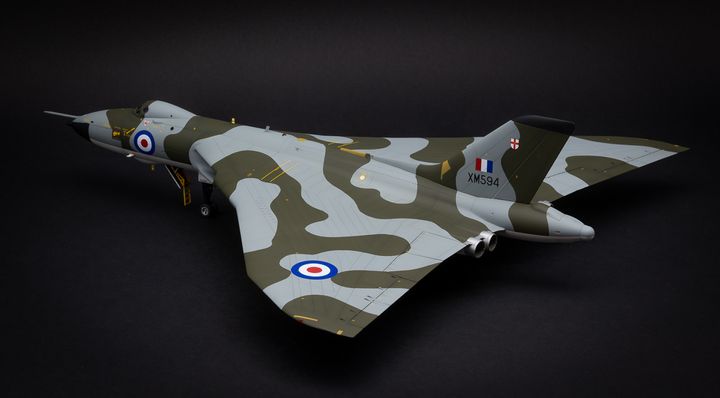

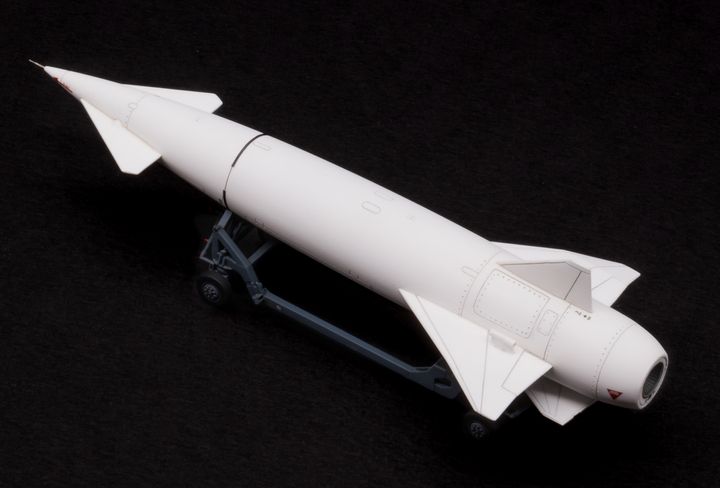

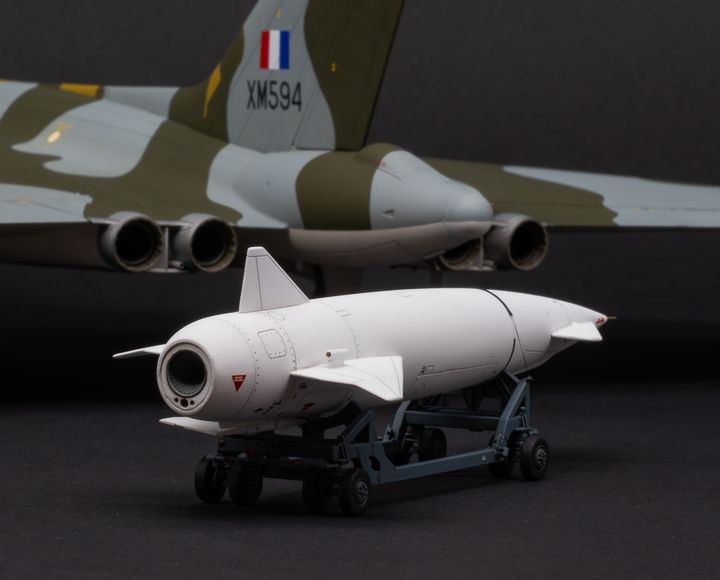

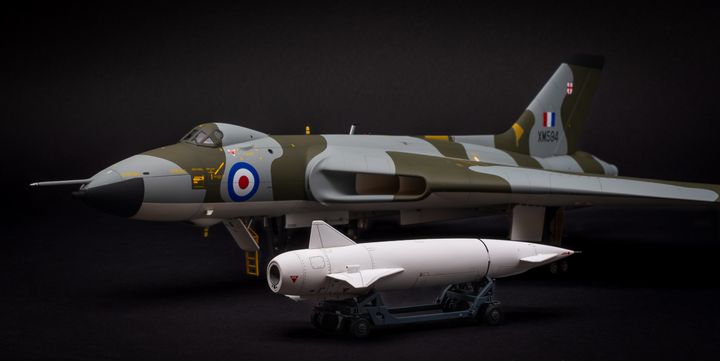

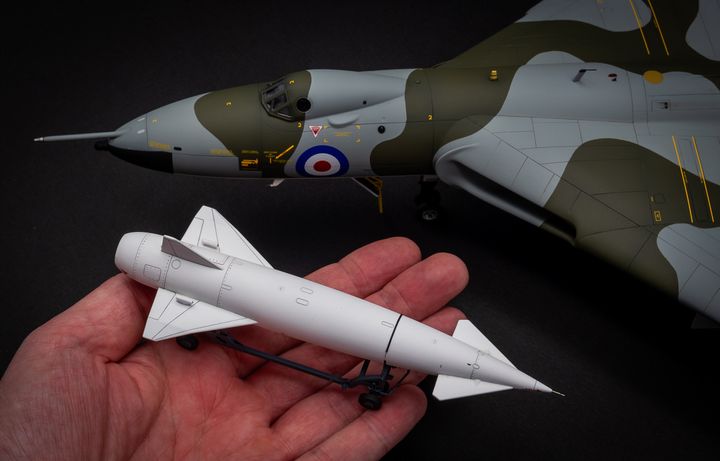

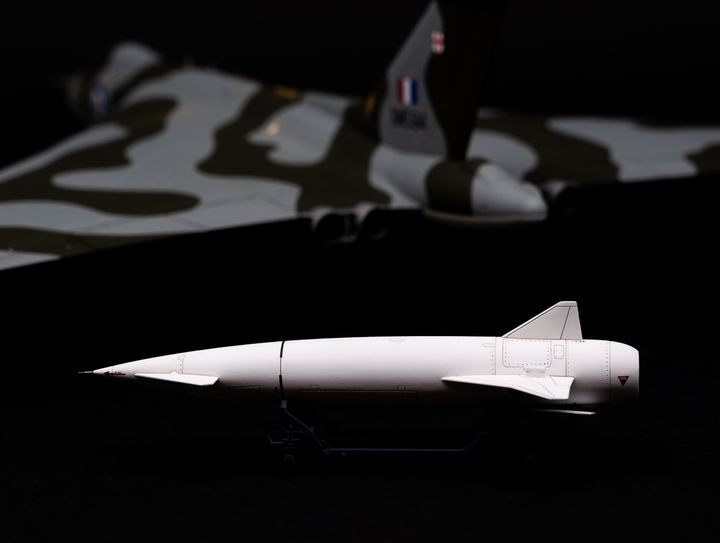

All, this is my completed Airfix Vulcan, and self-designed/printed Blue Steel maintenance trolley.

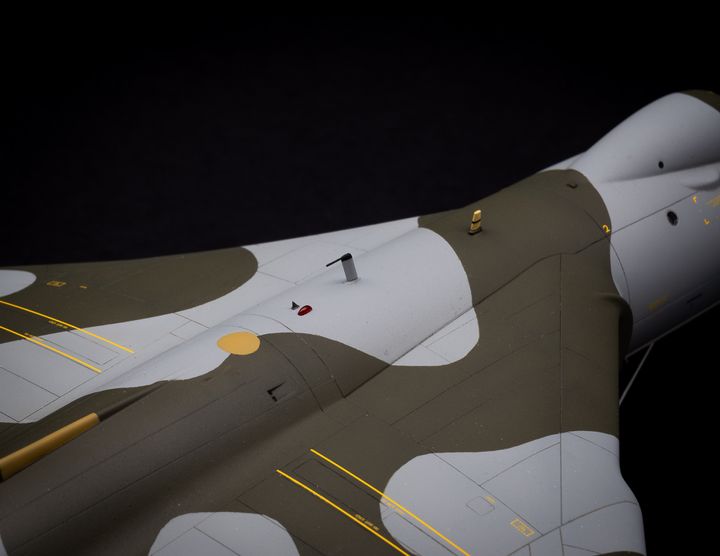

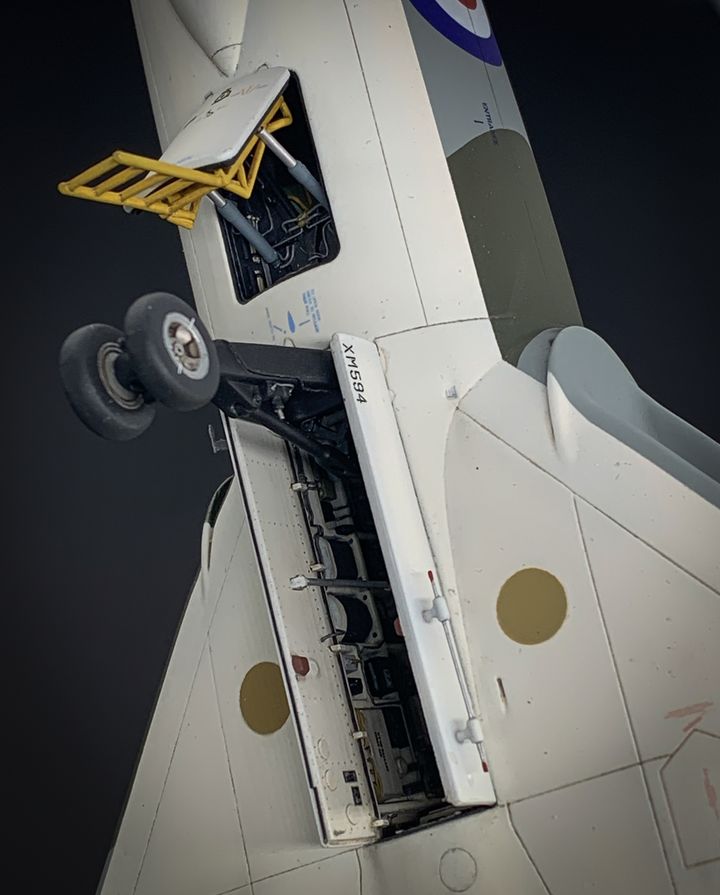

It's a model I won as part of the 2021 SMW Airfix Trophy. It has to be said, it's not without its issues. Part way into the build, I decided to add some detail to the bomb-bay, since there's effectively none in the base kit, and the real thing is incredibly complex. Then I couldn't not do the same with the wheel wells, crew access hatch, bomb-aimers position etc., etc. Some details are accurate, some "cartoon scale", some nothing more that added 'complexity' to give the impression that something's there. It's - retrospectively - based on a photo provided by a fellow BM'r of this aircraft in it's post "Blue Steel" configuration c.1973. I'm sure there are inaccuracies in terms of bomb-bay fit out, but as with the rest of the model "it is what it is"; there's a fair bit of modeller's licence here. When I started the model, the Eduard etch set wasn't available, and with hindsight I should have waited for it - it would have added something to the end result, but...



Very happy, grateful, (not to mention surprised) to win a medal at SMW last week, and the David Hannant Memorial Prize (which I've already spent at Hannants on more photo-etch sets for future models).



Partial build thread here:

Thanks for looking folks!



Airfix 1:72 Avro Vulcan B.2, 101 Squadron, RAF Waddington, c.1973.































































Notes on additional details:

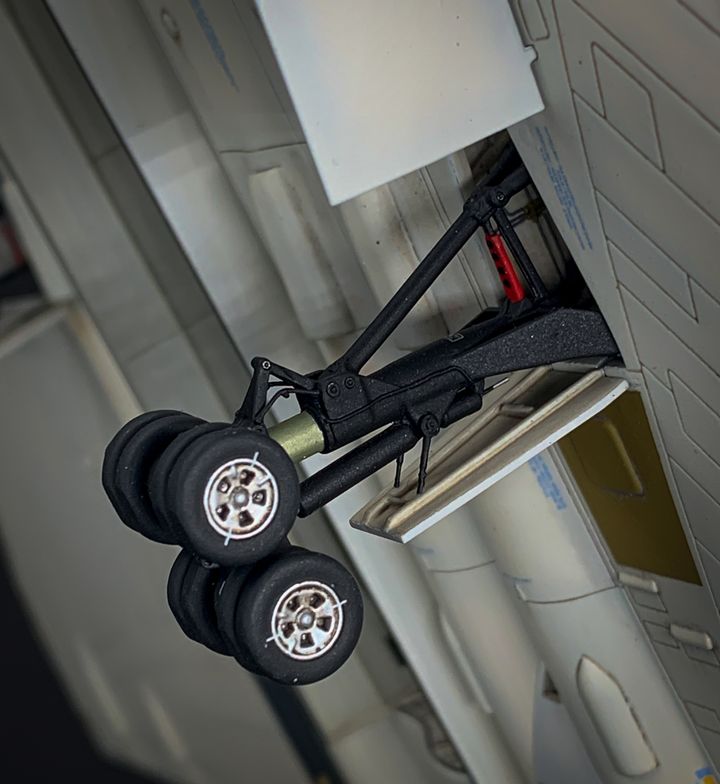

101 Squadron insignia & u/c serials (26 Decals STS7219 via. Hannants)

Various data plates (Mike Grant & Airscale decals)

Brass tube bomb-bay pipework (Albion Alloys)

Brass tube bomb-door rams (Albion Alloys)

Brass tube main u/c rear door stays (Albion Alloys)

Brass tube pitot heads (Albion Alloys)

Brass tube engine vent ends - adjacent to jet pipes (Albion Alloys)

Bomb cradle lift guides - flared brass tube (Albion Alloys)

Steel wire nose door antenna (Albion Alloys)

Brass tube nose wheel steering ram (Albion Alloys)

Brass tube main u/c load sensor pistons (Albion Alloys)

Flattened brass tube main u/c hydraulic scissors (Albion Alloys)

Brass tube and Plasticard Outside Temperature Sensor (Albion Alloys)

Aluminium tube crew hatch rams (Albion Alloys)

Bomb-aimers window demisters - lead wire & brass tube (Albion Alloys)

Various crew hatch, bomb-bay & u/c  stiffeners – plastic strips, U-sections

Upper & lower periscope fairings – shaped plastic rod (Albion Alloys)

Various crew hatch, bomb-bay & u/c bay electrical boxes (self-designed, 3D printed)

Various crew hatch, bomb-bay & u/c bay hydraulic blocks (self-designed, 3D printed)

Various bomb-bay gearboxes & mechanical actuators (self-designed, 3D printed)

Crew hatch actuator bodies (self-designed, 3D printed)

Main u/c debris guards (self-designed, 3D printed)

Main u/c load sensor bodies (self-designed, 3D printed)

Bomb sight (self-designed, 3D printed)

Blue Steel maintenance trolley (self-designed, 3D printed)

Bomb-bay arch-spar hydraulic lines (self-designed, 3D printed)

Dorsal & ventral navigation lights (cast from self-designed, 3D printed moulds)

VHF antenna (self-designed, 3D printed + stretched sprue)

Lead wire bomb-bay ventilation pipes

Lead wire bomb-bay hydraulic lines

Lead wire bomb-bay fire suppression lines

Lead wire u/c brake lines

Lead wire & Tamiya tape electrical wiring

Bomb-bay and u/c door weather strips (lead wire)

Ejection seat handles (twisted lead wire)

Ejection seat harnesses (Eduard)

Scrap p/e U/C bay surface details

Plasticard triangle antennae (front u/c door & stbd. Forward fuselage)

Plasticard bomb-aimers window deflector panel

Plasticard nose gear door hinges

Plasticard central windscreen wiper

Additional bomb-bay & u/c bay lights (punched Plasticard & PVA)

Bomb-bay air cylinders (scrap bombs)

U/C joint fasteners (Top Studio p/e rivets)

Tail strike boom (plastic rod)

Riveted u/c door internals

IFR probe illumination lamps (scrap decals)
