Airfix Boeing Chinook HC.1 (A06023) 1:72

[Mike]

Boeing Chinook HC.1 (A06023)

1:72 Airfix





The CH-47 Chinook is a tandem rotor heavy lift helicopter, developed by Vertol and manufactured by Boeing Vertol since 1962, and its incredible longevity is testament to the quality, flexibility and robustness of the original design. Over 1,200 examples have been produced, and the type has seen frontline service in conflicts as disparate as the Vietnam War, the Falklands Conflict in British service, both Gulf Wars, Iraq and Afghanistan where its utility was so much in evidence that many airframes became worn out by the end of their time there, causing availability issues for the forces that sometimes reached the newspapers. In its capacious loading area, the Chinook could lift a 24,000lb payload or carry anywhere between 33 and 55 troops.  The first variant to be taken into service by the British forces was the CH-47C, which was designated the HC.1, and after an initial cancellation of the first order due to “budgetary issues”, a decade later they were back again with an order of thirty airframes that entered service with British forces in 1980.



These aircraft were flown extensively before being re-fitted with composite blades that saw them change to HC.1B, and eventually they were returned to Boeing for a zero-hour refit to HC.2 standard, which was the British equivalent of the CH-47D.  The HC.1, like the American equivalent was fitted with more powerful engines than its predecessors, adding an additional 2,000lbs to its internal or external carriage capacity.  The passage of years saw the night-vision capable HC.3s entering service with Special Forces, the HC.4 and HC.5s developed from re-engineered HC.2s and HC.3s respectively, and being equipped with more modern avionics, a FLIR turret under the nose, and the HC.6 and 6As fitted with a fully digital flight system.  As of time of writing there are no more HC.4 airframes in existence, having all been converted in the meantime.





The Kit

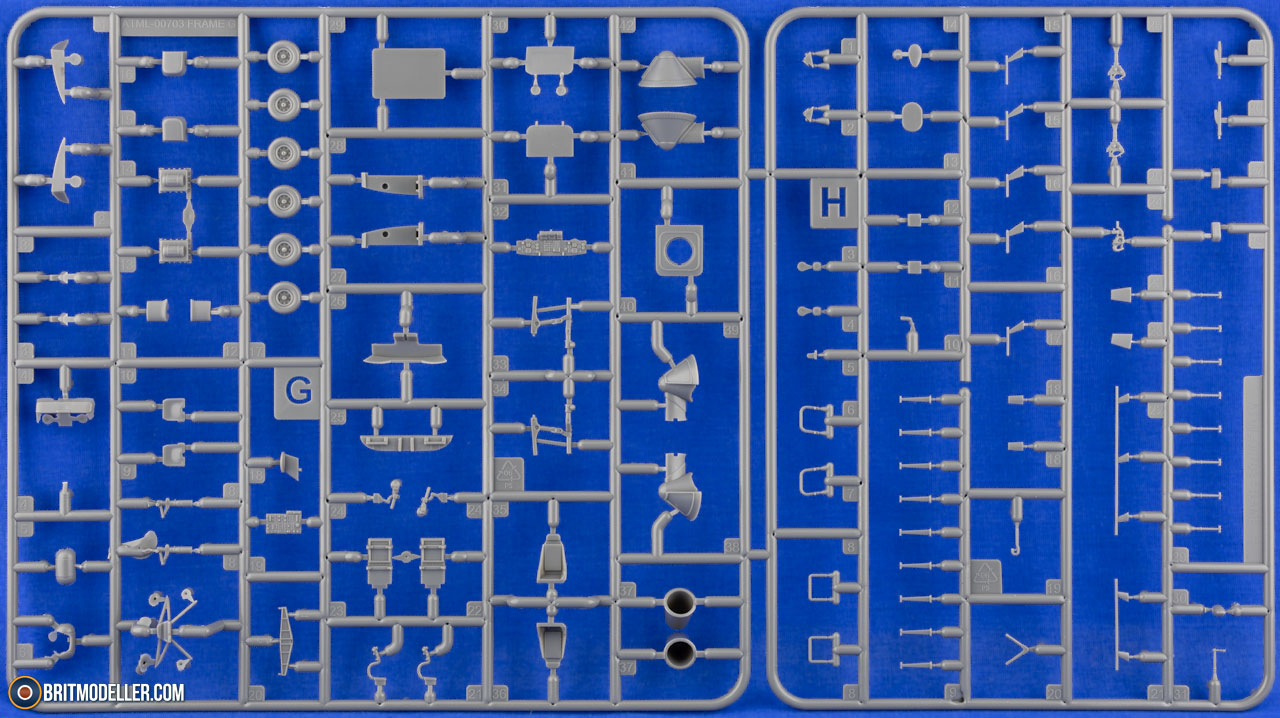

This a totally new tooling from Airfix, and appears to have used all the lessons learned on the recent 1:48 Sea King only in smaller 1:72.  The kit arrives in a sizeable red-themed top-opening box with a painting of the subject flying over a wide seascape somewhere near the Falklands with a cargo ship in the background on the waves.  Inside are six sprues of darker grey styrene, a clear sprue, decal sheet and the instruction booklet that is printed in spot colour on matt white paper, with colour profiles on the rear pages for the decal options.  Detail is excellent throughout, with a lot of detail on the interior, including ribbing throughout the entirety of the passenger cab, although there will be some ejector-pin marks to deal with by necessity too.  The clear parts will show off the details within the cockpit, and the thick rotor blades that give the Chinook its distinctive blade slap are moulded with their curves pre-formed, which is always good news (unless it’s upside down!).



























Construction begins with the floor, which extends under both the cab and cockpit, requiring six ejector-turrets to be cut from the underside to achieve a good fit later.  The edge of the floor is slotted into a curved console moulded into the underside of the nose, then the centre console is glued to the other side, applying a decal after painting.  A tunnel between the crew and passenger areas is created from two parts, the outer faces having sound-deadening quilting moulded into it, fixing on a step at the rear of the cockpit, and adding a pair of equipment racks behind the seat backs, taking care to remove more raised ejector-pin turrets before you glue them in place.  The crew seats are each made from two parts, and attach to the front, as shown by a scrap diagram nearby, followed by a collective and cyclic stick for both pilots.  The coaming has a pair of raised circles moulded into it that must be cut or sanded away to improve fit, joining with the instrument panel face and a dial decal before it is attached to the cockpit floor, completing work on that portion of the interior.  The passenger area has a well-detailed floor moulded-in that should respond well to careful painting before adding the rows of canvas and tube seats to either side, which are each moulded as single parts, but with excellent detail.  Another scrap diagram shows how they should be oriented once installed on their legs, which would be wise to be done as late as possible to avoid breaking the legs off the individual chairs during handling.



Preparation of the fuselage halves is first, drilling holes into the sponsons for one decal option, and more above the side door for both.  There is also some nice detail to be painted near the load door, and some ribbing that could be the basis of a little more detail if you felt the urge.  Before proceeding however, there are two jigs included on one of the sprues that permit accurate drilling of three holes under the nose, but don’t be tempted to apply glue between the jigs and the fuselage halves though, or you’ll be very sad when you realise your mistake.  Two detail inserts are supplied to block off the view inside the fuel tank sponsons, and these too have ejector-turrets to be removed on the inside, after which they are be pushed into the fuselage halves, locating the circular spacers in raised circular shapes in the depth of the tanks.  The inserts have a small part fitted to the tapered end near the door before installation, and these too have a small tab to remove, marked in green like the others.  The fuselage halves can then be closed around the interior, ensuring that the cockpit is correctly bracketed between the forward ends.  The underside of the fuselage has ten 0.9mm holes drilled in it before it is fixed to the inner floor on six posts, lining the fuselage halves as carefully as you can to reduce clean-up of the seams, then placing another jig on the top of the fuselage between the rotor turrets, which will align with a pair of holes in the roof so that you can drill out two pairs of 0.7mm holes, and a solitary 0.8mm hole in the roof before attaching the avionics spine between the turrets and capping off the tops with circular(ish) panels that have arrows on the underside to assist with alignment.



The two decal options wore different filters on their engines during the time they are depicted, so you must choose which ones to use on your model.  The basic engine comprises of two cowling halves with a conical exhaust at the rear, built in a handed pair for installation on the recess either side of the aft rotor turret’s base.  The conical filters are made from two shallow halves, and they fit on pegs that insert into the fronts of the engines, aligning the supports inboard toward the turrets.  The cylindrical filters are formed from two half cowlings, with a circular front, and they support a separate part that hangs downward on the finished assemblies, as illustrated in the accompanying diagrams.  The landing gear is comparatively simple because it is fixed, with two straight struts at the front with T-axles that hold a pair of one-part wheels each.  The rear wheels are mounted on a box frame that has a short axle on the outer side only, holding just a single wheel each, half-recessed beside the load ramp, which is next to be built.  There are three options for the ramp, fully closed, open level with the floor, and open for taking on or offloading cargo, all of which use the same outer skin portion for the main part of the ramp.  The closed ramp has a pair of brackets added to the sides, and is glued to the rear of the fuselage along with the top section, closing it completely.  The level ramp has a detailed floor glued to the external skin, and is slid into position on two pegs for a strong join, while the loading option adds a fold-out ramp section to extend the end and smooth the journey for anything using it.   For the two open options, the top portion of the outer skin is unused, as it is retracted out of harm’s way until needed to plug the draught in the rear.



The circular portholes on the fuselage sides are applied from the outside, adding the main canopy plus the two side doors to the nose, then mounting the two-part side door with clear porthole in the open, partially open or closed positions, the former having a more detailed part that will be visible when flipped down.  Numerous small parts are glued around the cockpit, with more around the rotor turrets, including a choice of a grab-rail antenna or a box on each side of the rear rotor.  If fitting the winch, the body is made from two halves, adding the support frame to the rear, and a hook underneath, gluing it to the holes drilled earlier over the side door with the help of a scrap diagram.  There is a forest of antennae on the spine and under the aircraft’s flat belly, with two towel-rail antennae around the winch hatch in the floor, and here you have another choice.  The hatch can be covered with a panel, or fitted with a beam and winch block, and a pair of stabilising winch blocks further away from the main winch location.  The Chinook has a long antenna running down the port side of its fuselage, supported on a run of nine masts, which plug into holes in the side of the fuselage.  There is a fine antenna wire running through these posts if you feel like increasing the detail on your model a little more.





The last step is to create the twin rotors that keep the Chinook aloft, and give it its distinctive “WOKKA!” sound.  The front and rear blade sets are similar but use different parts, so be sure not to mix them up during the build process.  They share a simple base plate, and the rotor-head is glued into the centre, fitting the three wide blades to the flat ends, doubling the thickness at the attachment points.  When both sets are built and painted, they can either be glued or placed on the tops of the rotor turrets, spinning around a hole in the centre if you leave them loose.  It would also be sensible to leave them loose if you have limited display space, or intend to transport the model to shows at any point.





Markings

There are two decal options included on the sheet, one in the traditional green/grey over black camouflage that we know so well, and the other in a desert scheme from what we called Operation Granby in the UK, or Desert Storm as it was otherwise known.  From the box you can build one of the following:



• ‘Bravo November’, No.18 Sqn., RAF, ‘Operation Corporate’, Falklands Islands, South Atlantic, May-June 1982
• No. 7 Sqn., Operation ‘Granby/Desert Storm’, Gulf Region, May 1911







Decals are by Cartograf, which is a guarantee of good registration, sharpness and colour density, with a thin gloss carrier film cut close to the printed areas.





Conclusion

There’s a lot of detail packed into this model, along with plenty of options to personalise it to your taste.  The decal choice was intended to appeal widely for this first boxing, but many more will be along, if not already in the works.



Very highly recommended.
