22" MPC/Round 2 Eagle Transporter #2


Recommended Posts

I enjoyed building my first one earlier this year so much that I bought another! You can see my previous build here:

http://www.britmodeller.com/forums/index.php?/topic/234996587-mpcround-2-148-scale-22-eagle-transporter/

For this build I want to ty to do something a bit more special, so there will be lighting, fixes to the overlong springs, enhanced paintjob and decals and most likely a Emergency/Rescue pod paintjob. This build was inspired by my visit to the Smallspace show last weekend where I got the designer of the Eagle, Brian Johnson to autograph the box I carry the first Eagle model to shows in



I'll not be following the constructin sequence of the instructions very closely this time around as I have specific things that need to be done to support my other plans. So to start with, I began with one of the leg pods. My plan is to mount white LEDs in the front two legs pods to act as landing lights...

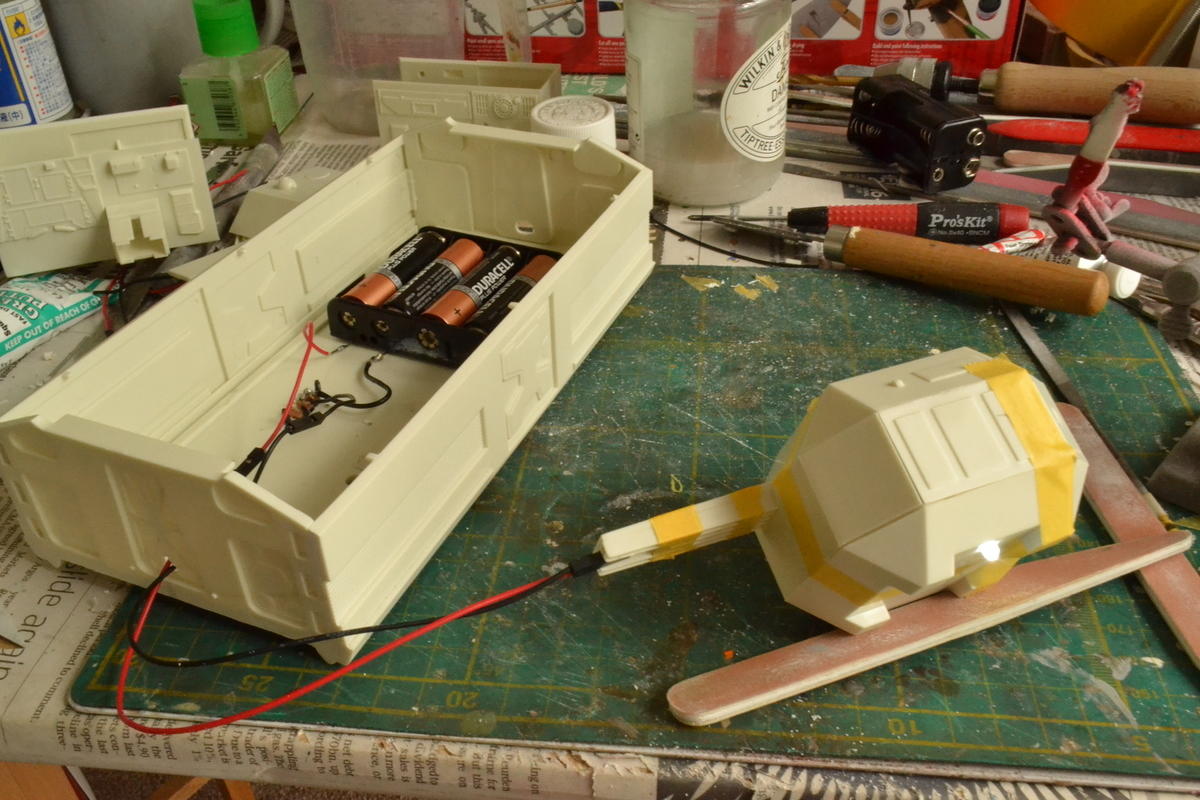

As you can see, this time I'm using some serious battery power which will be mounted in the passenger pod. This will feed power to the LEDs in the leg pods and in the cockpit. So once again I've put power socket into the joint to support the cockpit



and the cockpit internal bulkhead has been painted


This time I've used Tamiya BUff and Deck tan colours istead of Desert yellow and white as I did in the previous build/ It still needs some touch ups and of course washes to bring out the detail. Now the power supply this time will be a block of AA batteries. These need to be mounted in the passenger pod is a manner that they can be accessible to change without having to disassemble the model. There should also be an on/off switch...

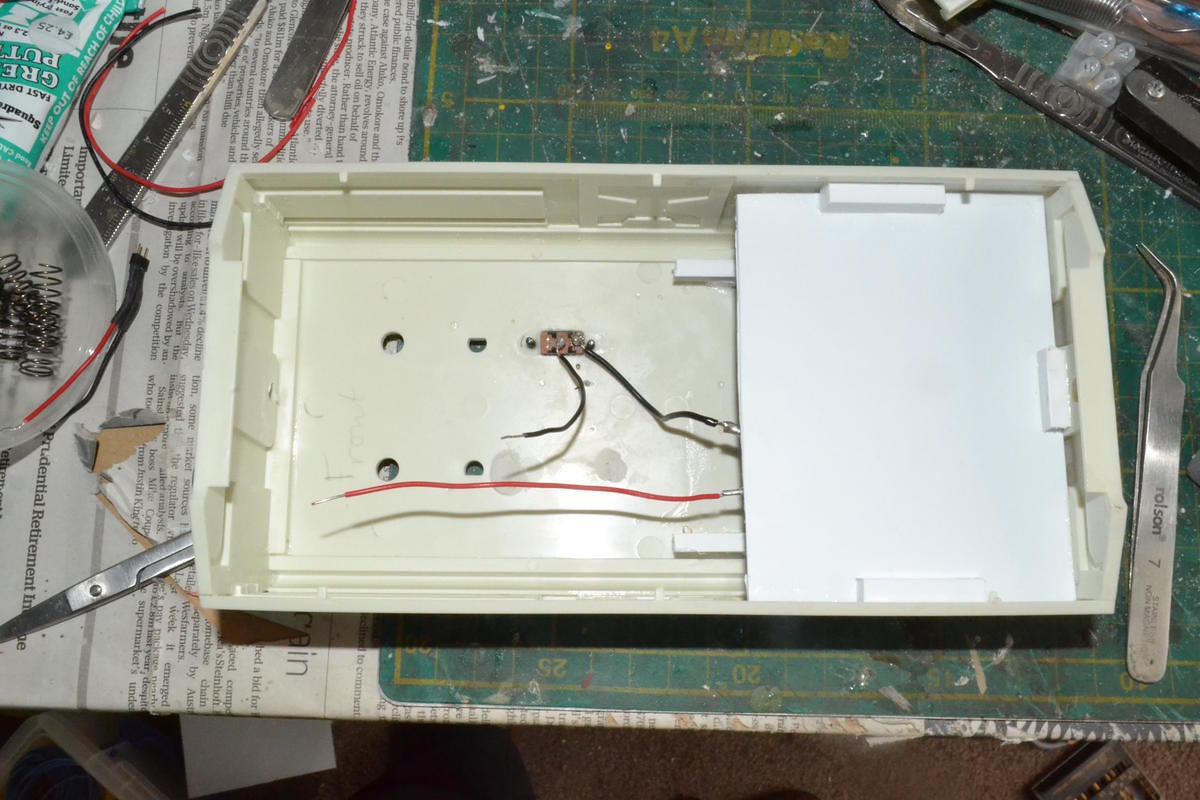

On/off switch working... how about accessibility of the batteries?

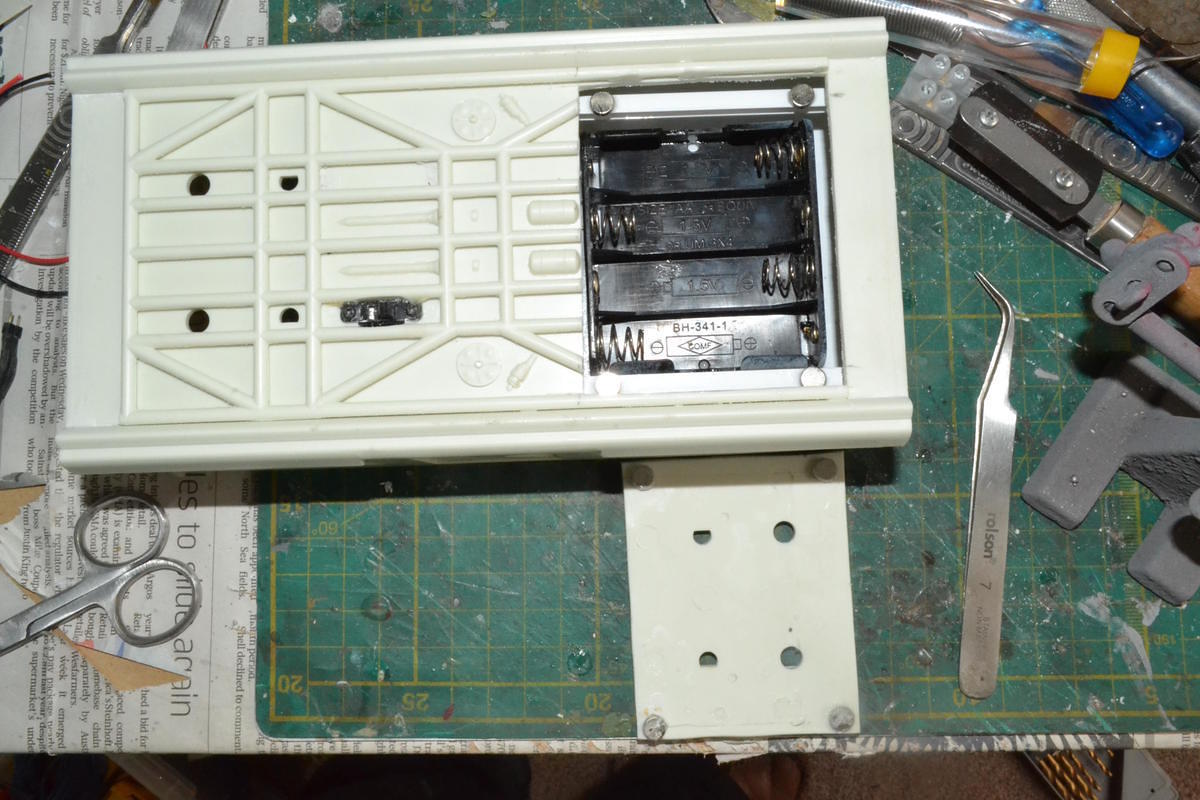

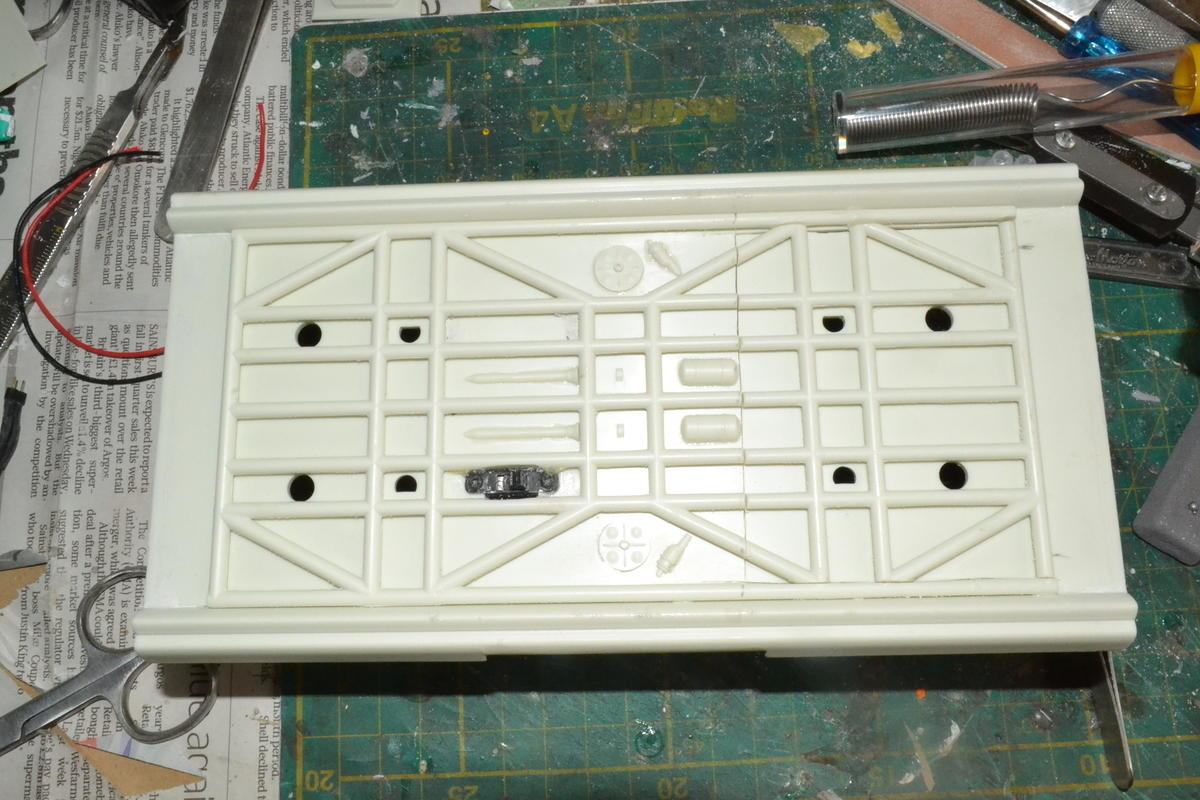

Panel cut out of the base with magnets holding it in place. Up the other way we see the mounting for the batteries

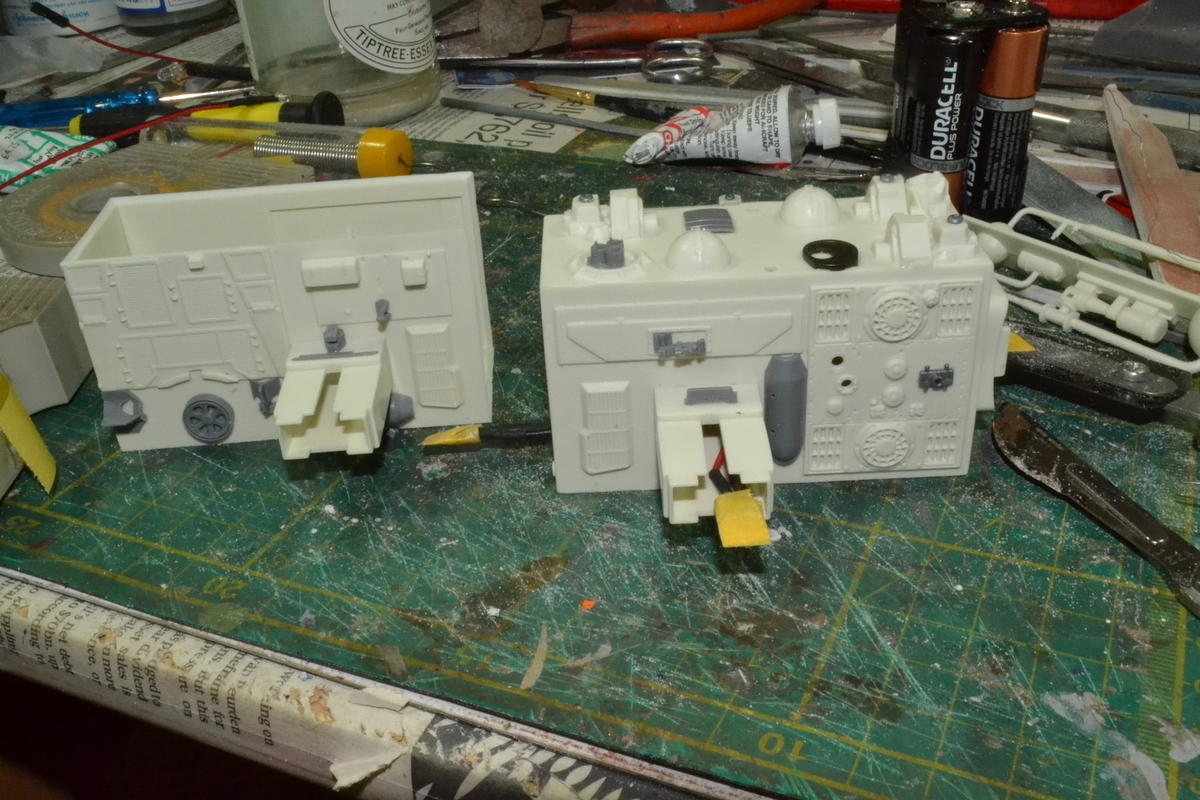

So back to the leg pods, I've had to chop some plastic out of the support brackets inside the walkway modules so that the wires can come out of the pods


This still leaves plenty of support for the leg pods. The connection between the pod and the leg is via plugs that allow the legs to be attached later for ease of painting, as is shown here:


The internals of the walkway module start getting quite busy once all the wires are added


but testing showed everything is working...



Next task it to arrange the electrical connection between the walkway and the passenger pod/battery box and then sort ot the rear leg pods. I have a slightly different plan for those, more of that later...

Edited by Kallisti
  • Like 6
Link to comment
Share on other sites

Nooooo.... I feel like I'm going to have to start mine now, and there's a few others that I should finish off before I start yet another kit.

  • Like 1
Link to comment
Share on other sites

Progress has stagnated a bit recently with other things getting in the way, however I have managed to make one small but important modification... the springs that support the legs!

The original springs that come with the kit are a bit to long.strong to the effect that the completed model sits about 1cm higher than it should. In my earlier build I left them as they are but I promised myself on this build I'd fix that problem. Bakc in February when I built the first I attempted to cut the spring but even with tin snips, I couldn't cut the wire. I didn't waste too much time on it back then, but since then I'd been advised to use a file to cut away part of the wire to make it easier, so this i did using one of my needle files with a sharp edge to cut a V-shaped slot in the spring wire and lo and behold it became trivial to snap a piece of the spring off, so now I have springs shortened by two loops of the wire

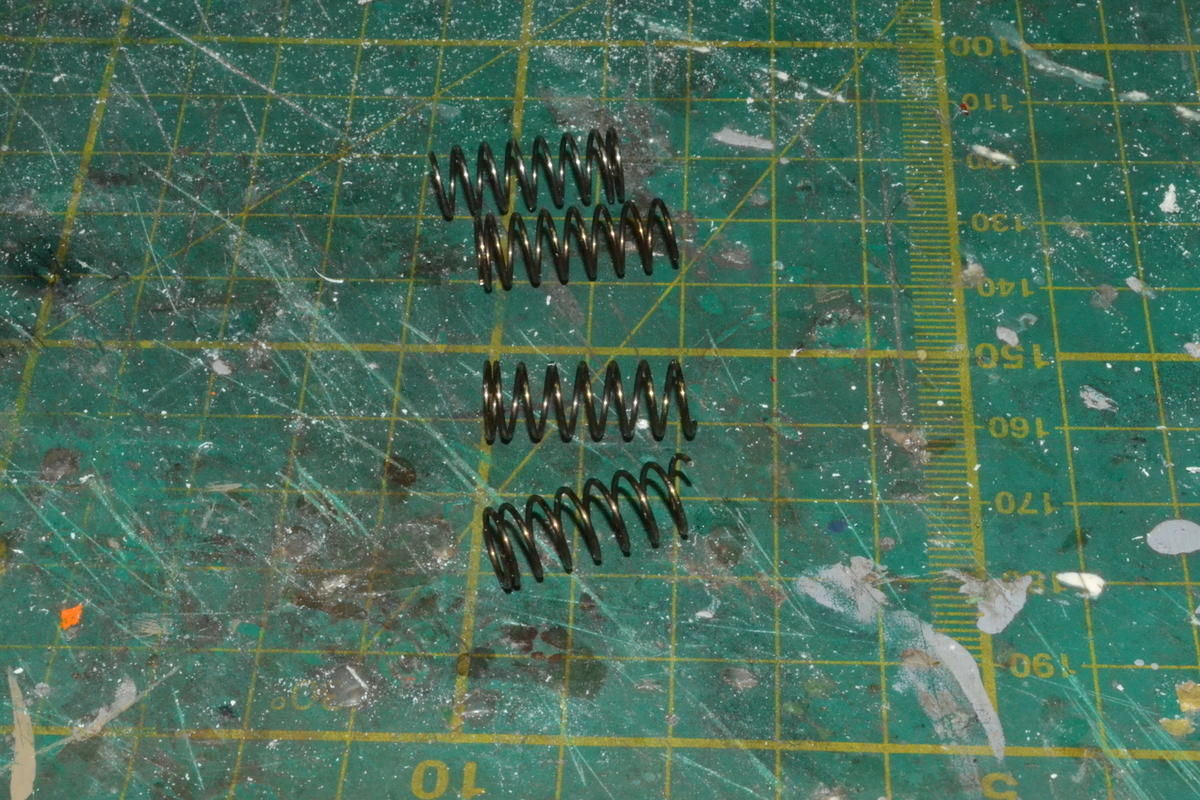

Sadly I forgot to take a "before" shot, but here is a photo from my earlier build that shows the full spring


As for further progress, the spine has been assembled and the upper panels of the passenger pod with windows in have been added to the PP. I'm hoping to get more progress this coming week...

  • Like 4
Link to comment
Share on other sites

  • 4 weeks later...

Well this build is taking its time... to be honest I'm struggling with motivation at the moment :(

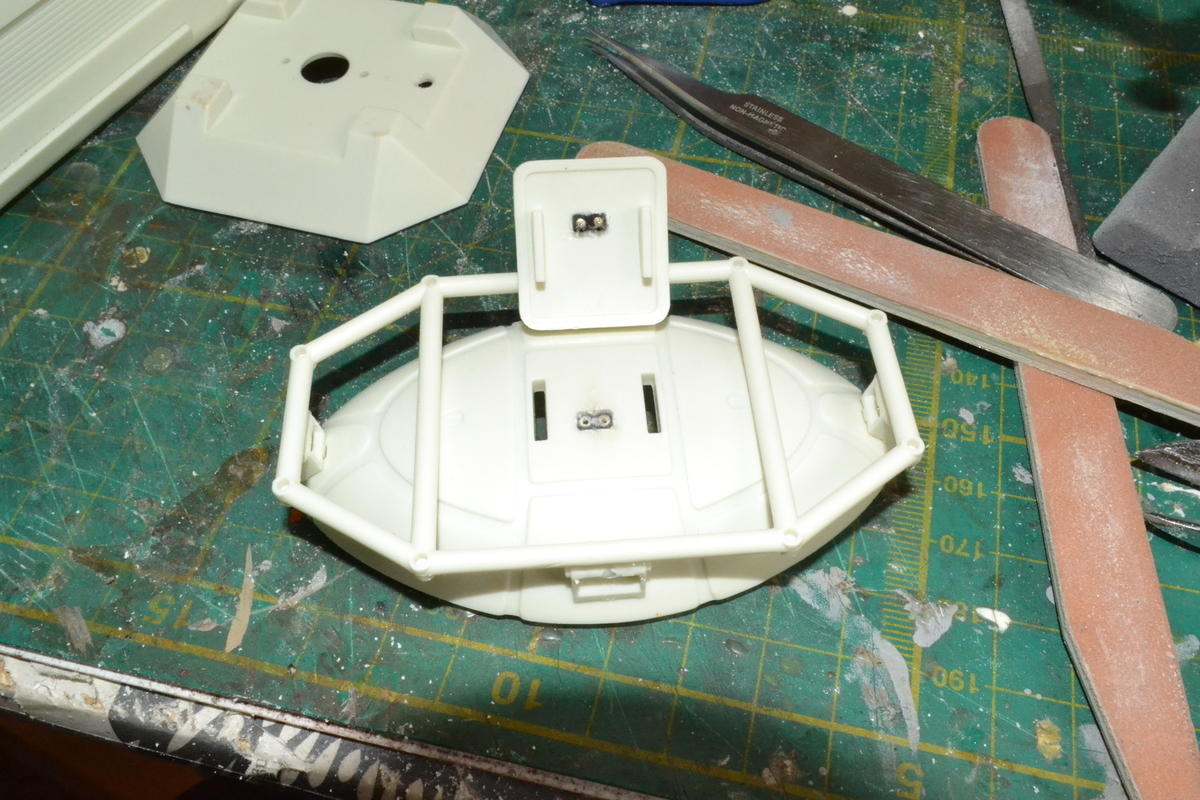

Anyway, things have slowly been coming otgether. I decided to add some extra details to the front and read walkways


This is the rear one, fully assembled and wired up ready for the lights.



You can see the additions I've made. The rear engine assembly as gone together without too much trouble - this is probably the single most complex part of the assembly.

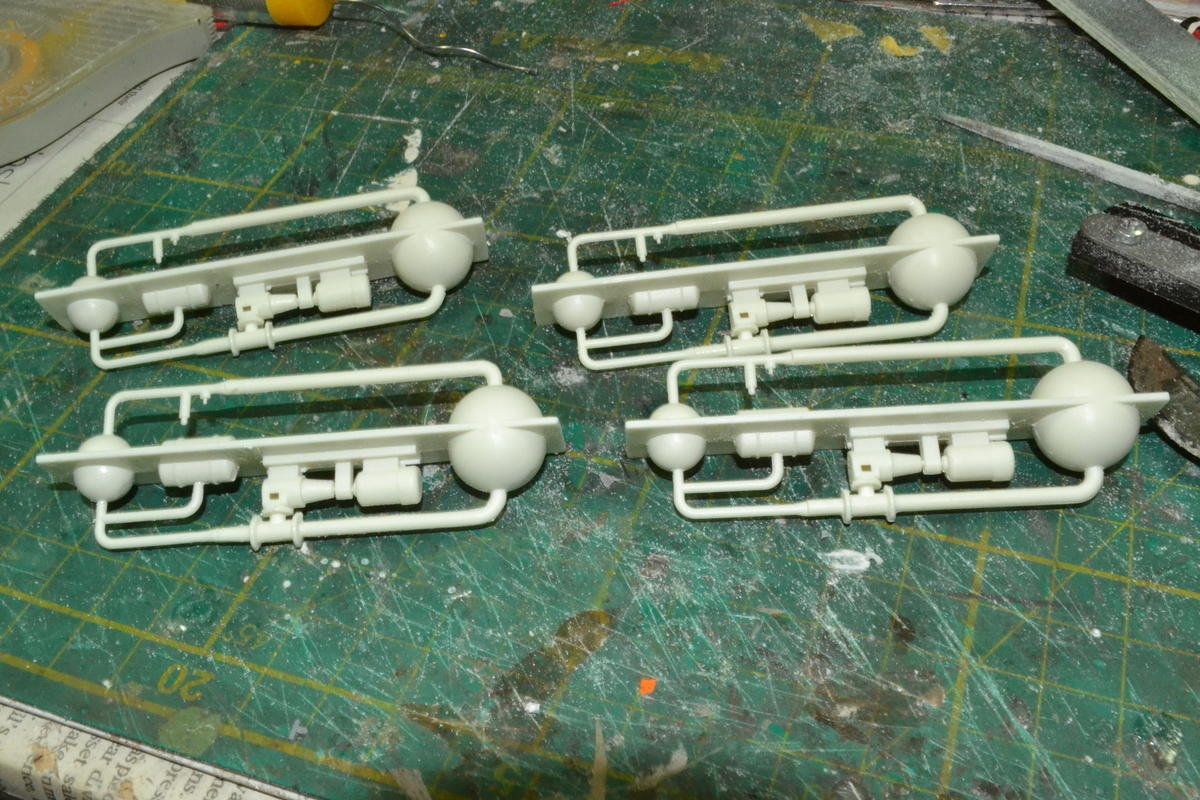

Finally in this update, the four shelves that fit on the walkways.


These were taken over a week ago - since then a lot of painting has taken place and things are progressing... slowly...

  • Like 4
Link to comment
Share on other sites

  • 2 months later...

I posted this in the wrong thread!!!! This is the build that I have restarted!!



So almost 2 months later, we come back to this build, having spent the intervening time on building the Fireflash+TB4 diorama and the monster North Cormorant Oil Platform. The latter is waiting for the bathroom sealant water effect to dry (link is in the sig), so I've come back to this build.



First thing was to re-familiarise myself with how far I'd got and then to proceed... In the down time, I made an effort to collect various decals to use on this build. This includes some generic red and blue lining decals as well as a generic sci-fi set of decals that I picked up from somewhere i saw on the Starship Modeller FB page






Don't ask me where I got it now, but there lots of useful bits on here and as you can see I've already used some of them :) Speaking of which, where did I use them then?

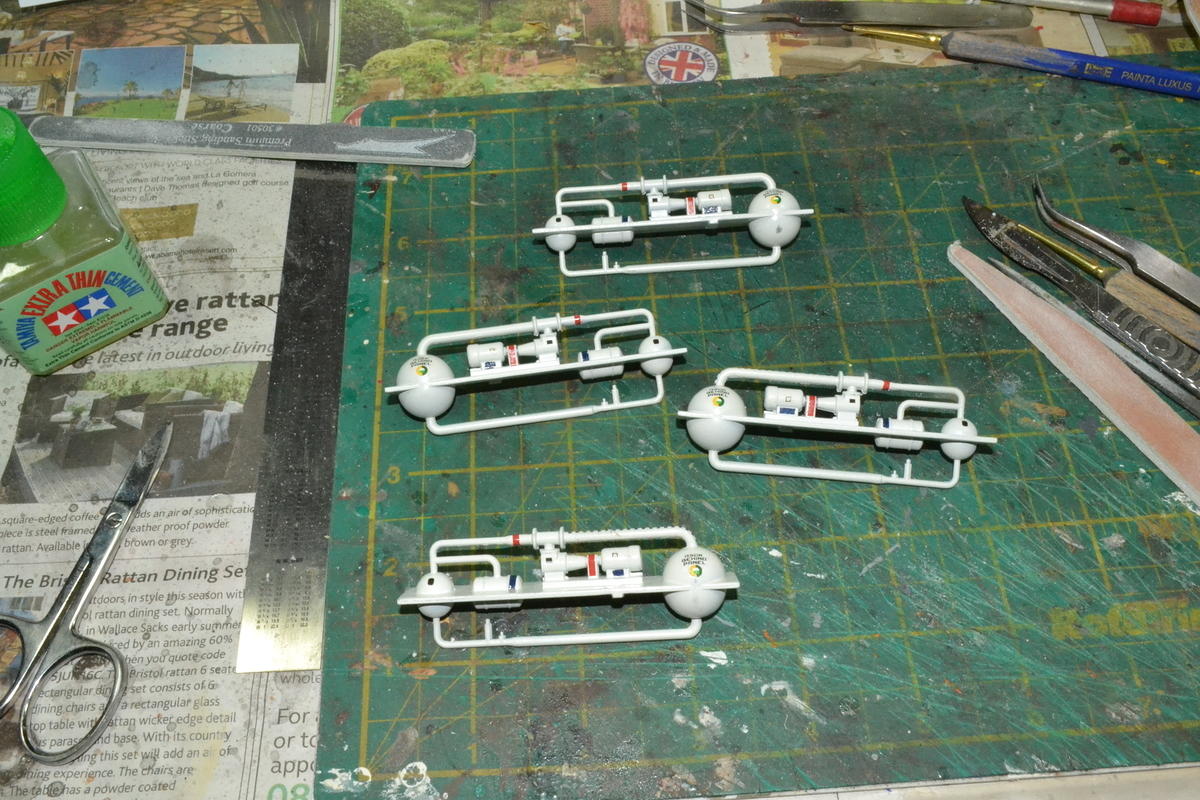

These are the 4 shelves that go under the cages on the two walkways, they've had some red and blue stripes added and the greenish decal on the larger sphere was taken from the set. These now need a dark wash to bring out the detail and they'll be ready.



Next was to revisit the engines






This is a mix of decals from the kit, from the scifi set and from a pdf uploaded to the Space:1999 Ships FB group.



Next job will be detailing the spine and further assembly of the cages.



  • Like 2
Link to comment
Share on other sites

Onwards and upwards!

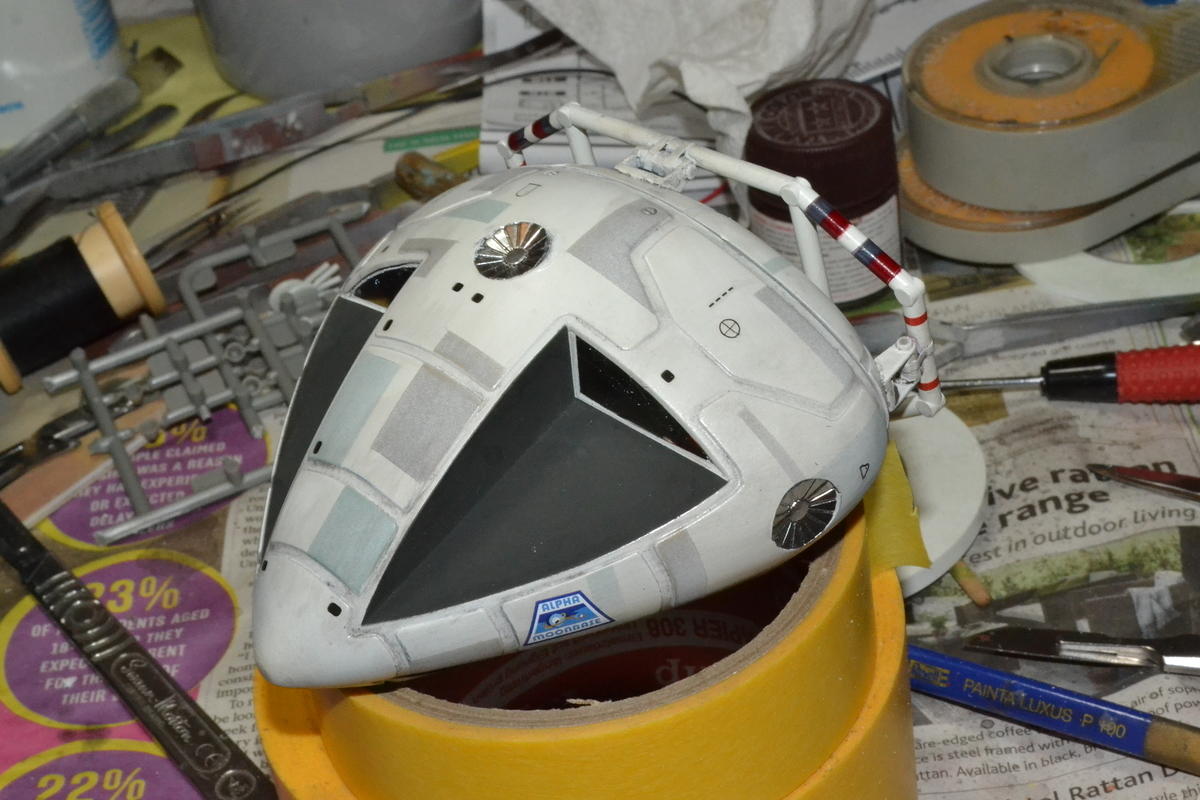

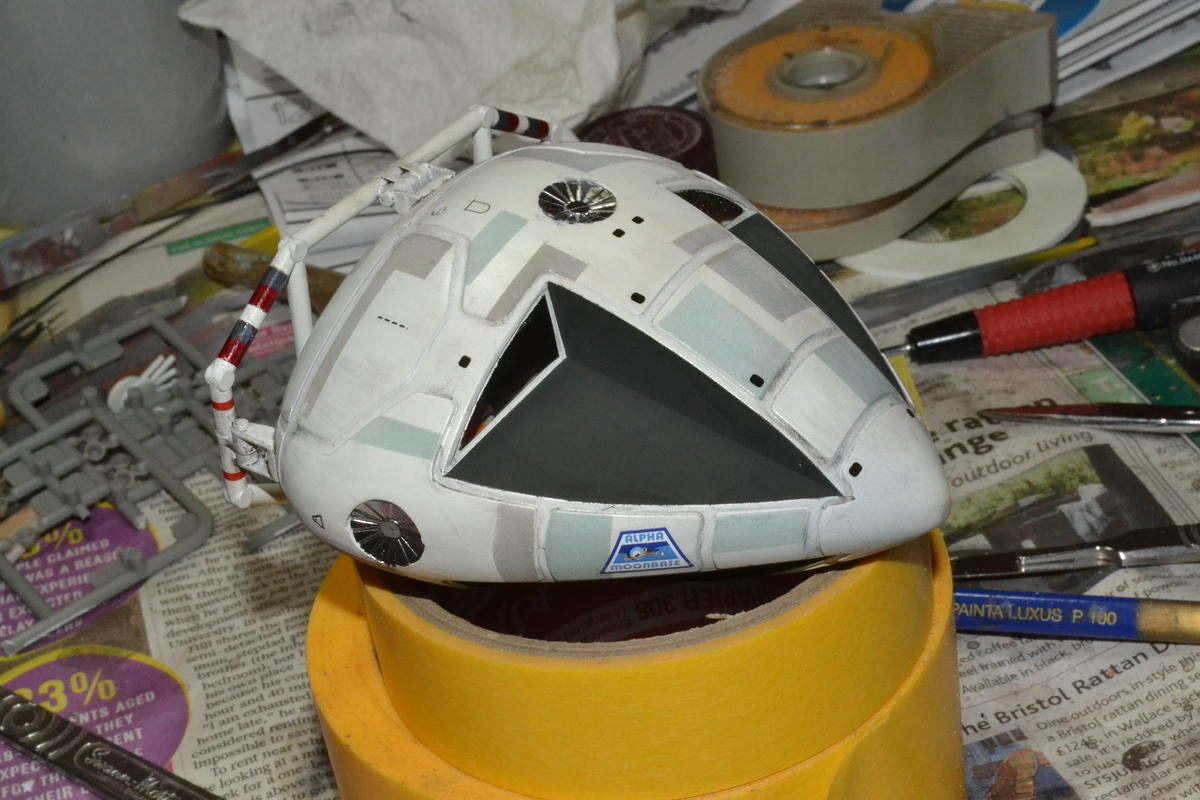

The command module is essentially complete, with panels, decals and weathering all applied:









I painted the black areas rather than use the decals provided in the kit. The sensor disks have been painted with Alclad and are plastic not metal. I've tested the LED in the cockpit and its a bit dim. I think I may have the wrong resistor in the circuit - unfortunately that is now behind the cockpit bulkhead in the cockpit and although I havn't yet sealed upt he CM yet, it will still be difficult to access without the risk of causing damage. I'll see how this pans out - I may end up adding a second LED in parallel with the first which may add more illumination...



Next the walkways have been finally assembled with the detailed shelves from before, decals from several sources added and weathering using a dilute MiG dark wash:

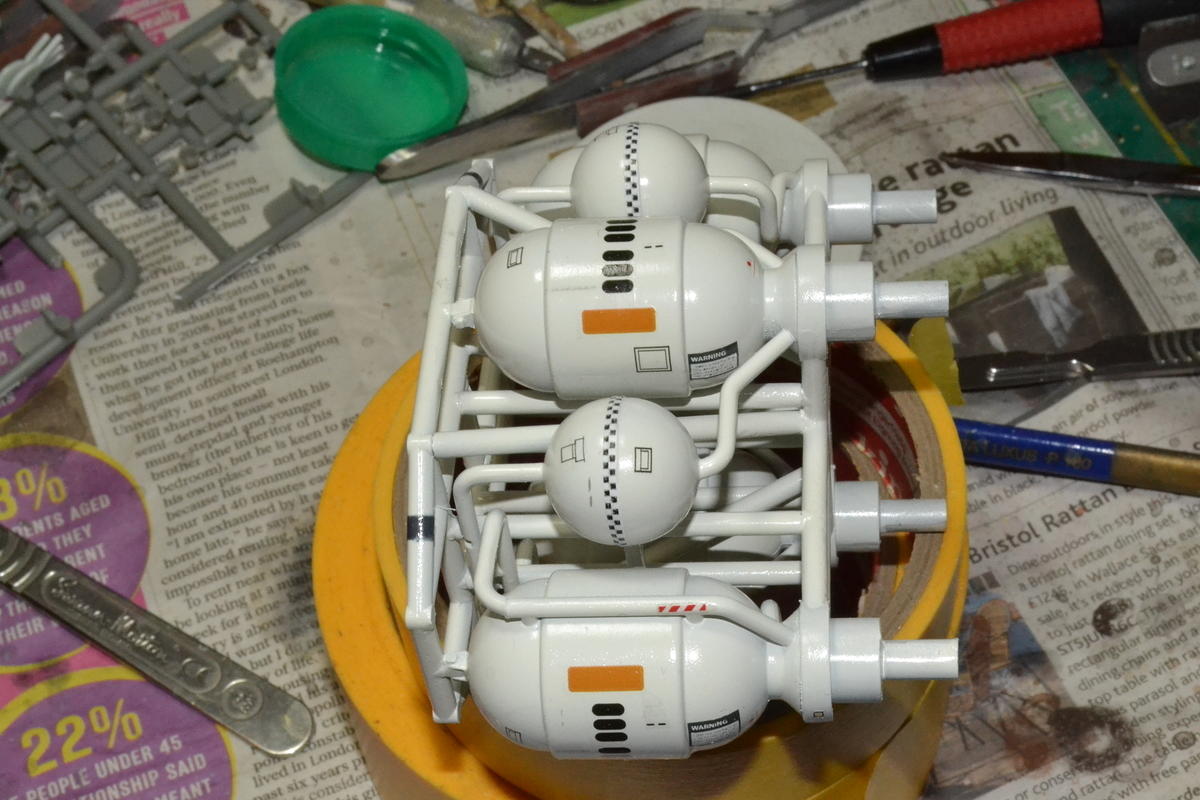

Next the engine block has had more decals applied. This still needs a weathering wash and a matt coat.












(blast, just noticed the two dashes on the top engine are crooked :( )

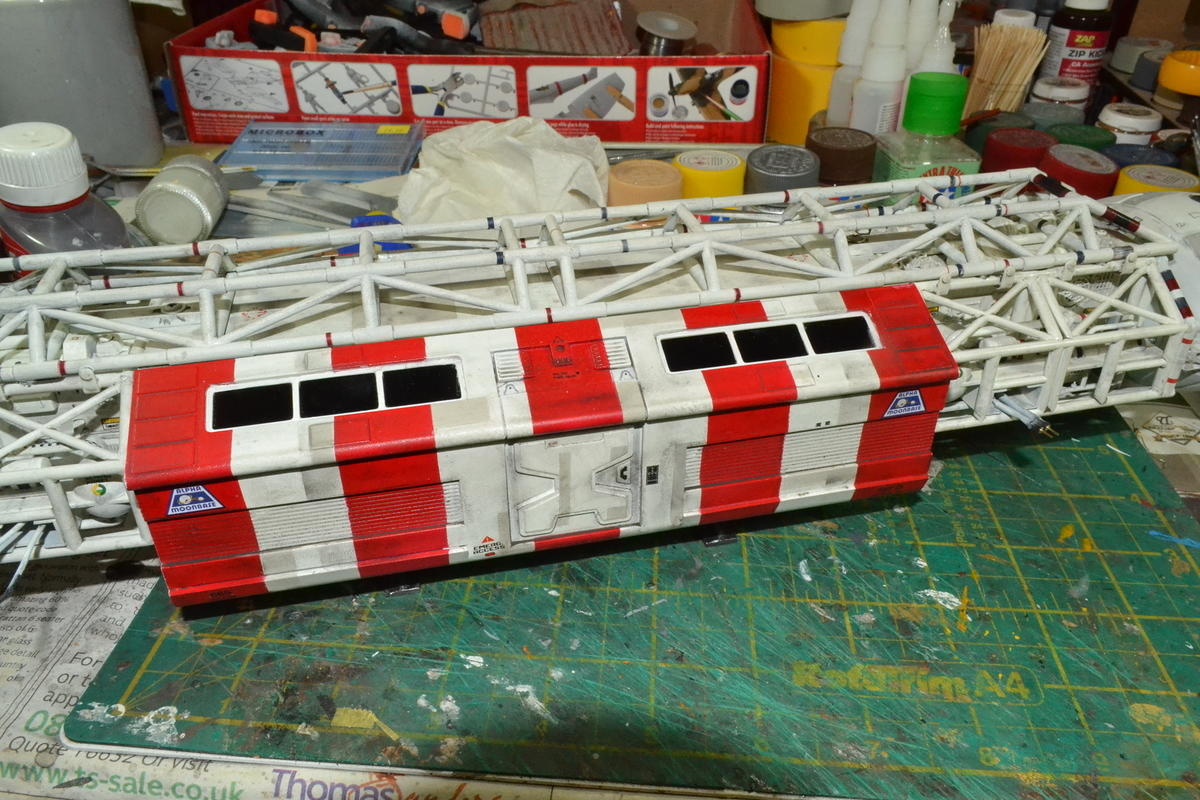

The passenger pod has had panels added and now needs to be weathered

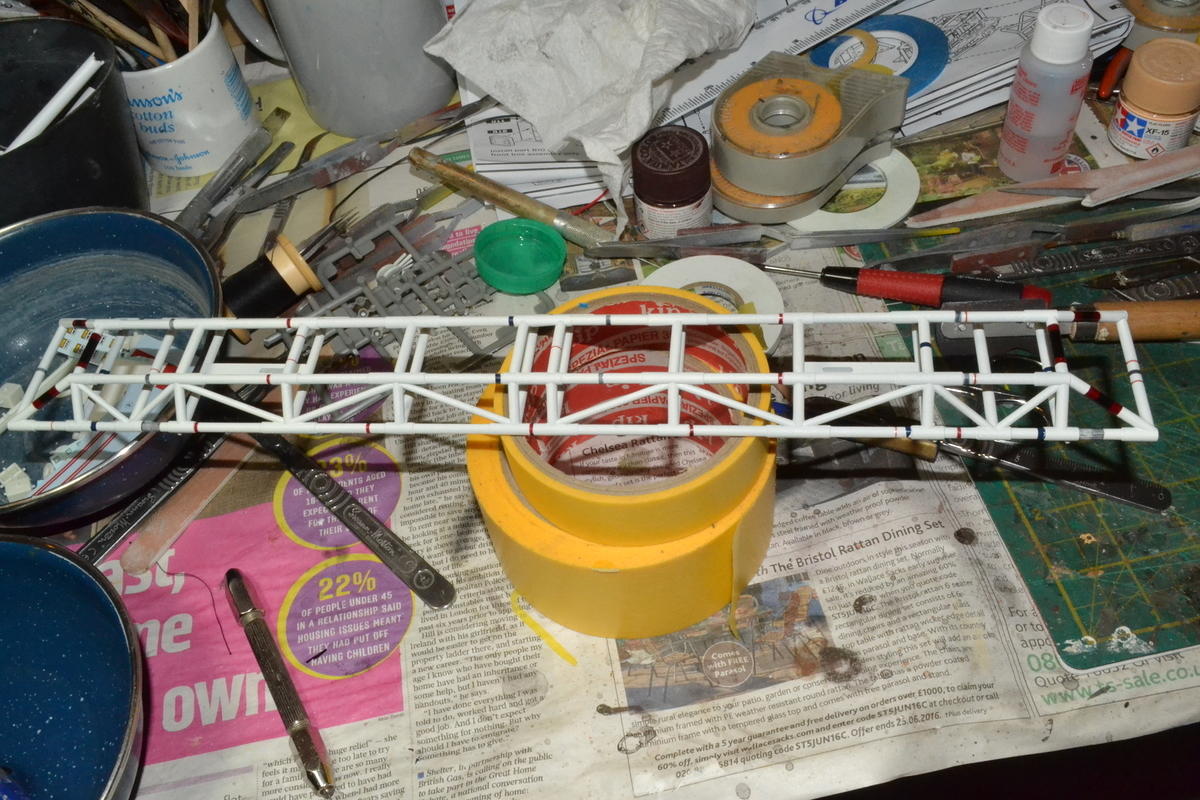

Finally, the spine has had lots of stripy decals added to give it some more interest
