Scratch build Caterpillar 120b motor grader

[IvanGouveia]

Hello, here is another project that started with the pictures found in the internet. Even the tires had to be built from the zero. The scale is 1:25

The project is half made in resin, although my models are mainly built in tinplate

In this picture the tires are from the old project that I made years ago.

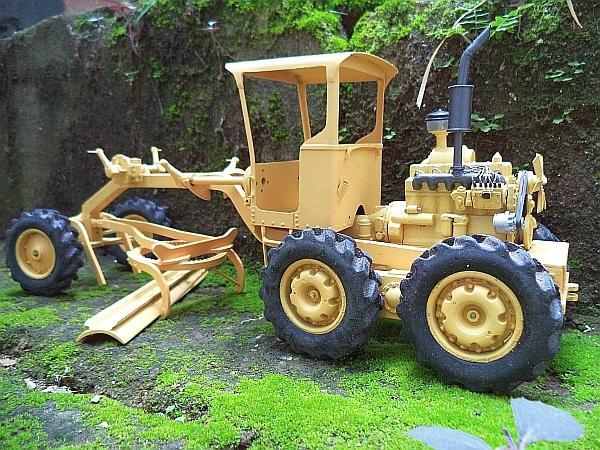

In this picture the tires are from the new project that I made this month.

Edited December 29, 2015 by IvanGouveia

[keefr22]

That is superb, great work!

Keith

[TGA]

Please Ivan, can I have some of your skill?

[IvanGouveia]

keefr22, thank you very much;

TGA, thank you very much.

Making these models in tinplate is not difficult, but it surely consumes a lot of work to accomplish.

For I am not born under the English language, I antecipatedly ask anyone who may feel insulted or offended by any misused word by me to forgive me.

Edited February 11, 2016 by IvanGouveia

[busnproplinerfan]

Beautiful is all I can say.

[Mickd]

Fantastic work Ivan.

[busnproplinerfan]

Can you take a picture of the bottom side showing the rear half under the engine please?

[Rishi]

Superb work. Please tell more about your scratch building process like drawings, pattern, casting. How did you cast these tires resin or rubber??? Master for the tires?

Happy modelling,

Rishikesh

[Codger]

A spectacular accomplishment Ivan and beautiful execution. Where did you find detailed references for such an obscure project?

Please show us your other scratch-built projects.

[roymattblack]

I just love scratch built stuff.

Flippin' brilliant.

Now - blow us all away (even more than you already have done) with one in 1/12 or even 1/8 scale...

Roy.

[kpnuts]

Superb simply superb, I am gobsmacked such skill.

[IvanGouveia]

busnproplinerfan, thank you very much,

I will take the picture that you want, but I am not sure that I can do that this week. For now, I will leave other pictures of the engine. So please tell if the pictures are enough.

Mickd, thank you very much.

Rishi, hank you very much,

On my website there are a lot of explanations on this. Rubber tires. I am translating the site, but I seldom have time to do that.

http://www.oficinaaberta.com.br

Codger, thank you very much,

I made a prototype with the pictures that I found on the internet.

As I said above, on my website there are a lot of explanations on this.

http://www.oficinaaberta.com.br

roymattblack, thank you very much,

I am sorry, but, at the moment, I am making these models only in 1:25 scale. The other projects are in 1:10 scale.

kpnuts, thank you very much.

Here are some other pictures. I hope that by the end of next week this Caterpillar will be ready.

[busnproplinerfan]

Thanks, I've never seen the transmission parts of a grader before.

[IvanGouveia]

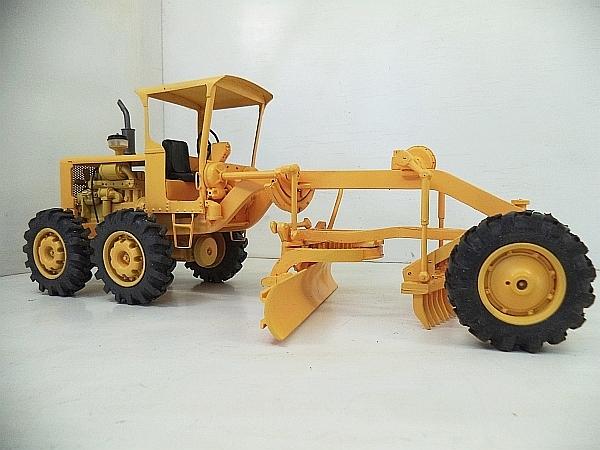

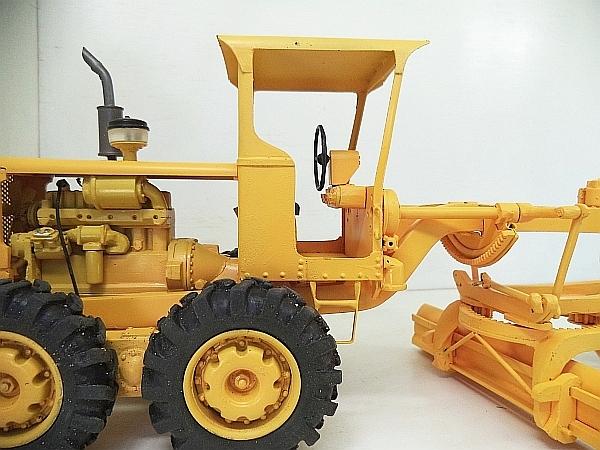

The pictures of the scale Caterpillar 120B almost done.

Edited April 5, 2016 by IvanGouveia
