Revell Messerschmitt Bf 109 G10 1/72 - Defence of Berlin (picture heavy)


Recommended Posts

Dear Fellow Modellers,

I've finished yesterday my first Luftwaffe fighter: Revell's Bf 109 G10 in 1/72. Of the two options offered by the kit, I chose the option of the IV. Gruppe/JG 27, early 1945, Berlin aircraft, with yellow underside wing tips.

The WIP thread is here

My main objective when I started this build was to learn how to paint mottled camouflages. I managed to do it successfully and also learned a lot more.

The notable learning points of this build were the following:

  • this was my first Luftwaffe mottled camouflage
  • also my first use of resin parts: the exhausts
  • I scratch built several parts:
    • seat belts, using painted masking tape and electrical wire for the buckles
    • armoured glass support structure made out of plastic sheet
    • armoured glass and gun sight made out of acetate
    • I cut the canopy piece and assembled the moving part in the open position
    • canopy's support arm made out of elastic fishing line
    • engine cover hinges made out of elastic fishing line
    • navigation lights on the wings' tips
    • cannons made out of plastic rods and masking tape
    • cannon cartridge ejection holes on the belly
  • first use of chipping fluid
  • first use of pigment fixing fluid (this didn't result very well)

Here are the pictures of the finished build. I apologise in advance for the large number of pictures.

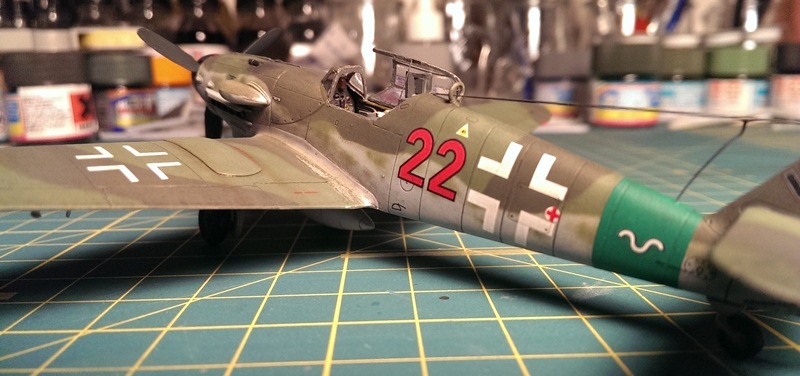

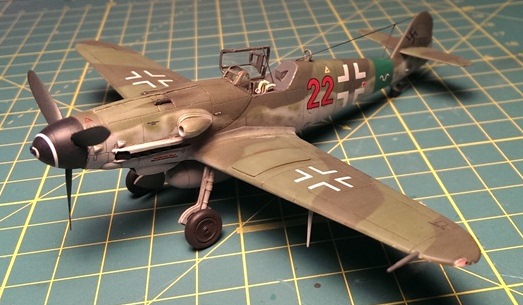

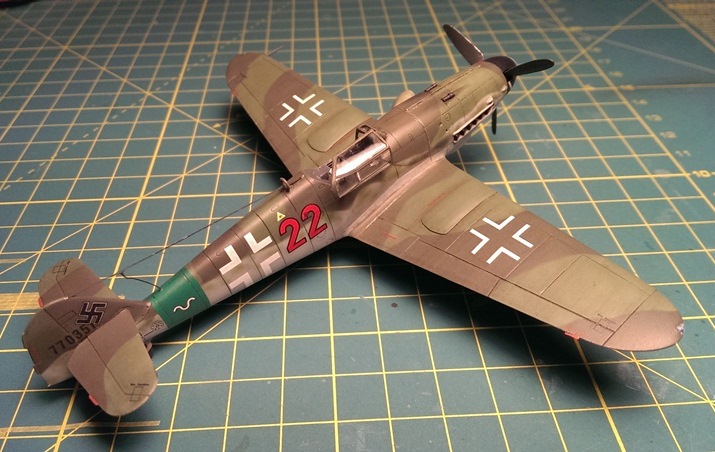

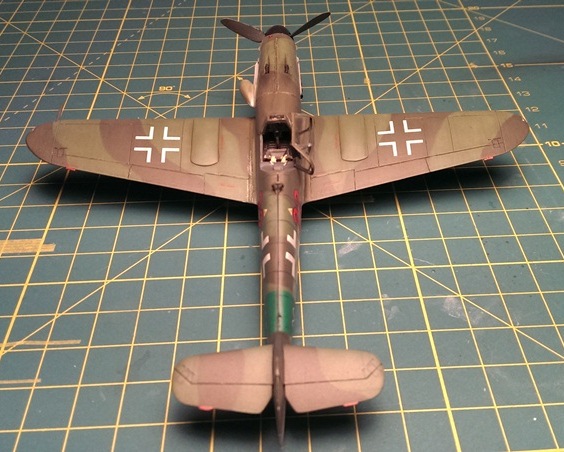

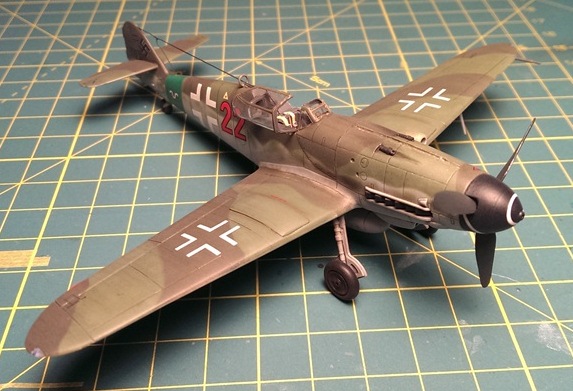

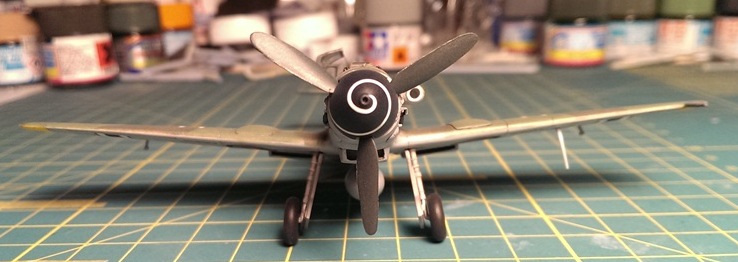

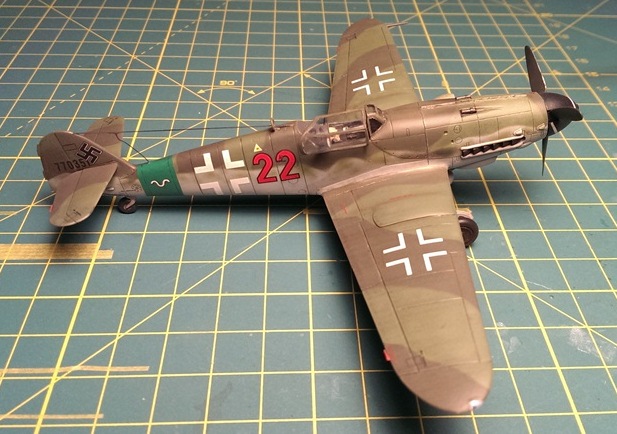

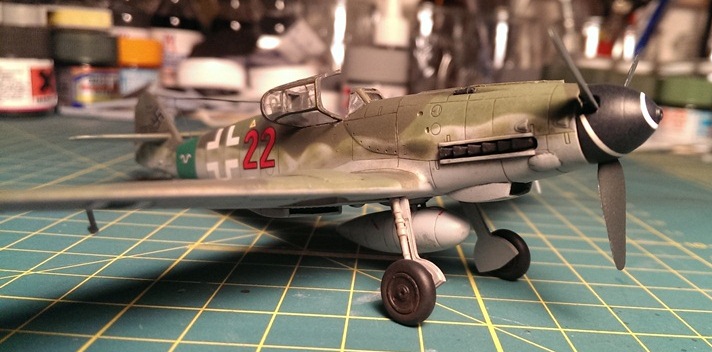

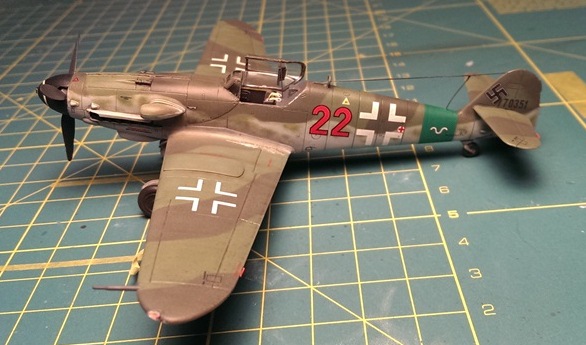

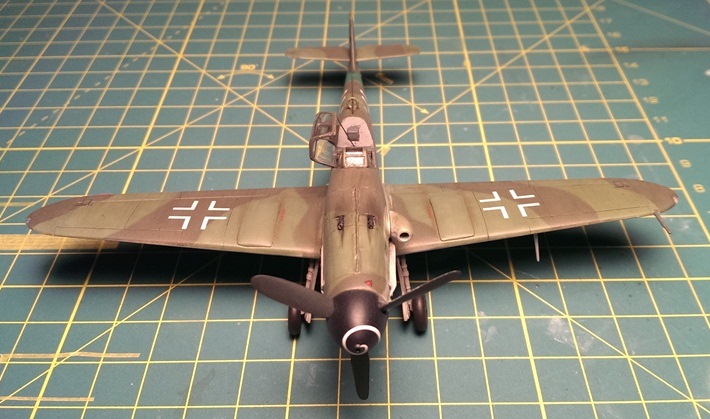

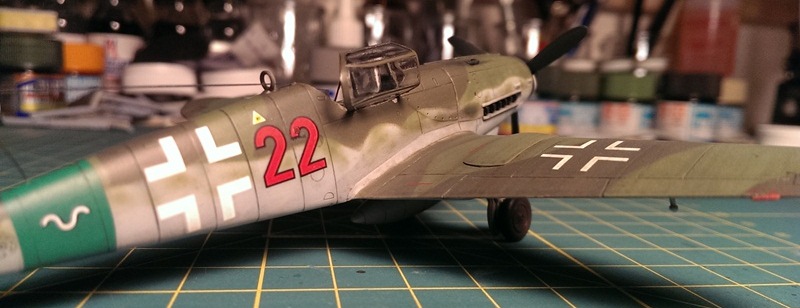

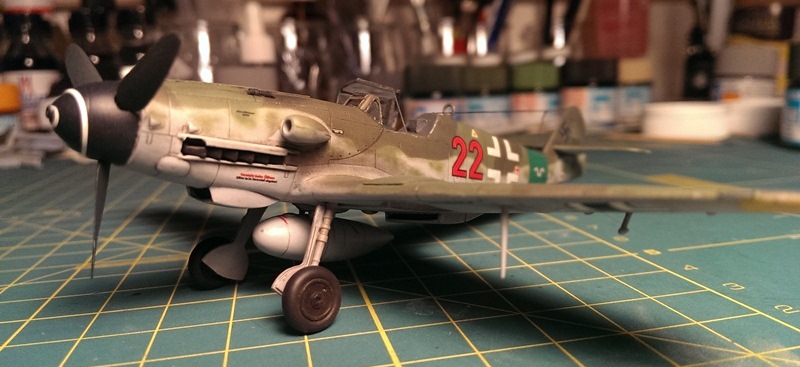

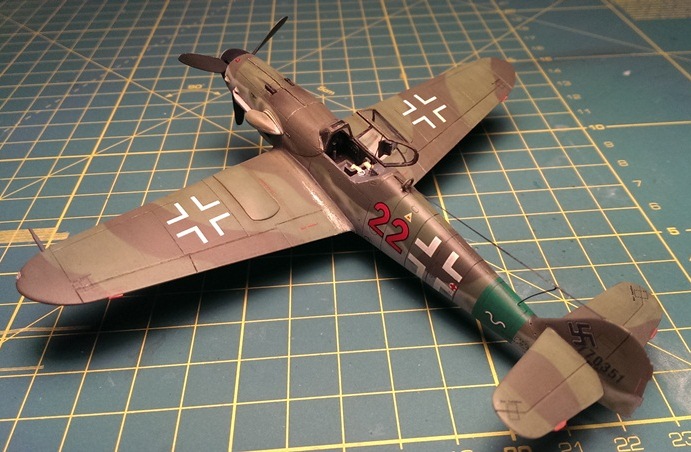

First, the general views:

y4mCUrNuQ4y_XqHFOWhxwMrJTB60WJHJcG6Cn8mS



y4mThHee23tCVphb3ufeVpap7JykqEUSon4yUFLX



y4mqwZQxTc-5DpthB_k757OWjrycgUKsHSGv7OR9



y4mqDGQBjnerXq9y3Xdf_C3QFk7gg5zbvcipk2-Z



y4mXQMtSh0eHskLzAyUZichbh3UYGGC7VoovXZcQ



y4mE_KJZP1aQ5ohn69vm4WAhpY7HwHvK-nnILORY



y4mE01LT_pe98LGrIlO9rWJeD_Luf4K4gnd_-13d



y4ml7Me3lUPV8fPMsTvG2QPPPyD0sIInqdVsitPR



y4m9crd_36_8-_1v-qtvP7nLgcs9YCrIBIkL4OQW



y4ms6VsMkPyFIWa2pADDSGNwOpMi130YYFz6eiFb



y4mGAfGiaGfsFGylR2UYXyUuPvWxNMX7f1cO3XEe



y4mccDRXqQkP2-k9wXAE2ojWnNZuwdqxNf_uHJ4f



y4mUlkq5sy6VdKZZ0moxlC-cifYIeWWCMhRGSmO2



y4mLtHBPa6bjNs5iCtwWjJr_LskJ5C5putATT-ib



And now, some details.

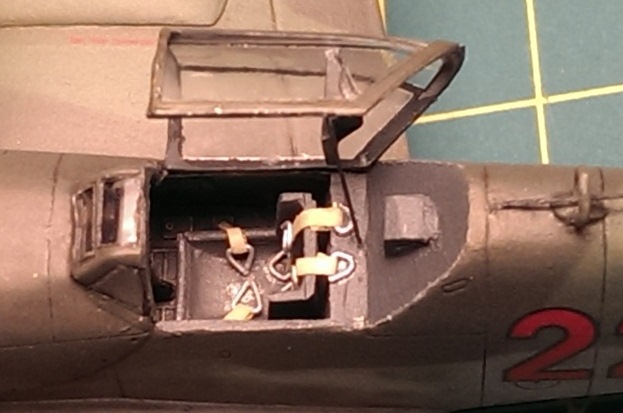

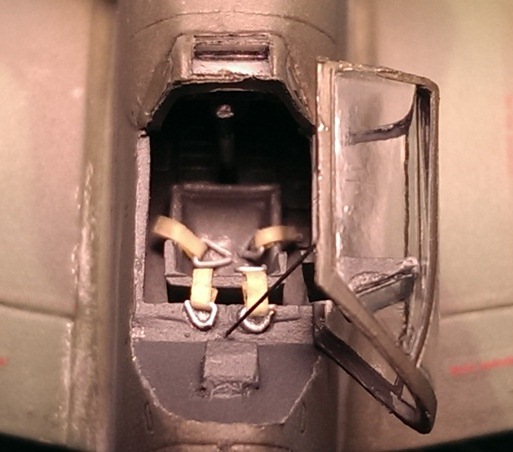

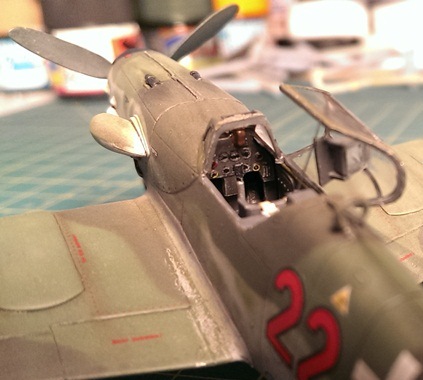

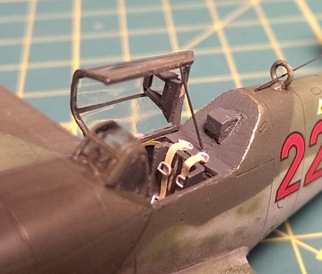

The cockpit with open canopy, showing the seat belts and (further down) the instrument panel:



y4mH4i5k6YIdddYCLbWKXvn8z6ngHC3YlD_VRXum



y4meubBj7yWu0NWjDDuWE2bVa4_9L3o32U4G9tKw



y4mu0buH4rPMb2kqvIVRoGkwLplpnWW1_uQIXchd



y4m5wdoVsHSTYb_MQ3FYz6MXOvc_ie4g-i7geou3

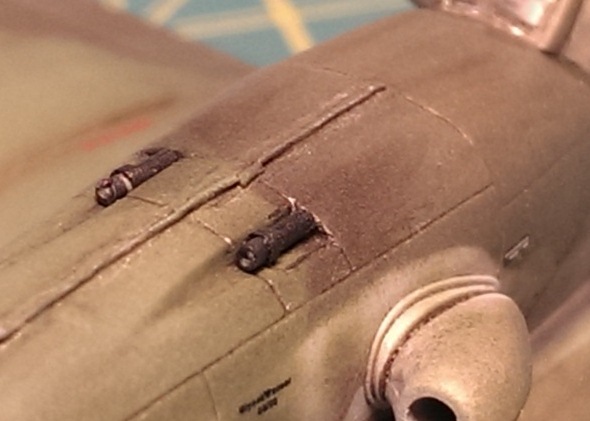

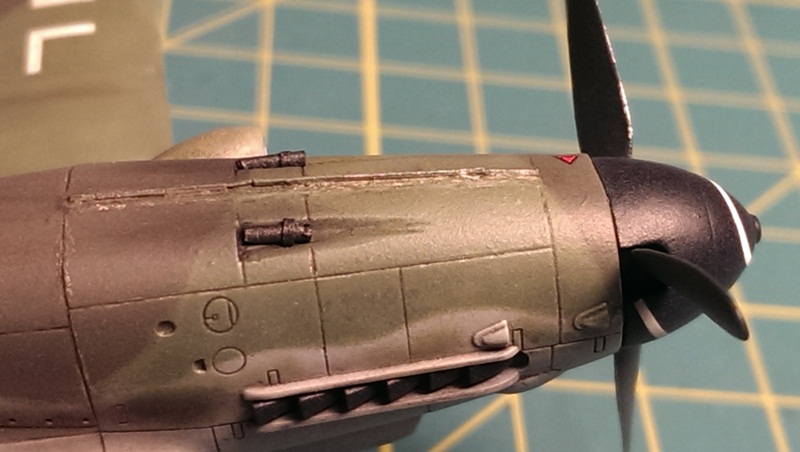

The cannons:

y4mrGs0lkyIxdCTElwGNVIMtOCKYuu36b8m-HjRl



y4mhkSKYGyypsuK5--6Jyo3n2J25FyVH9HgnoSyC

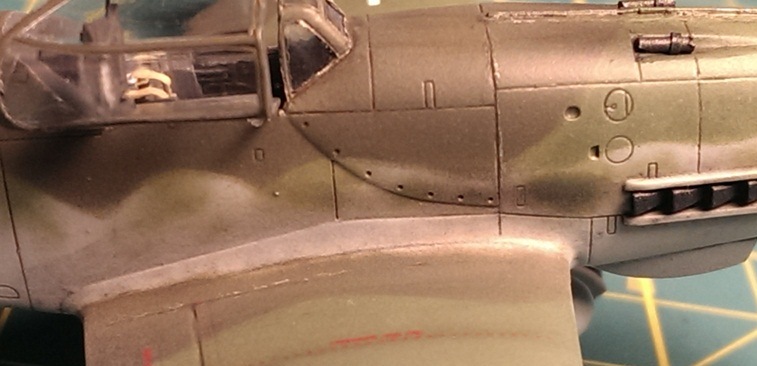

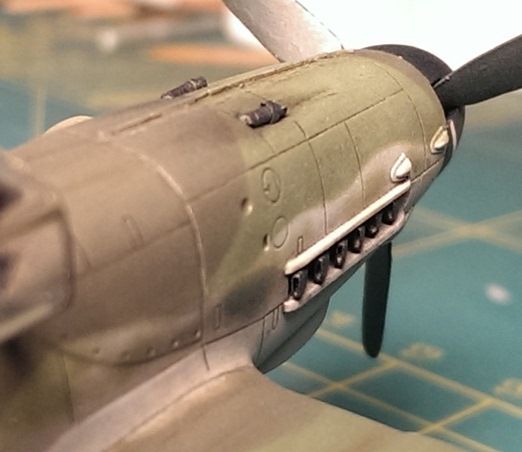

The exhausts and exhaust stains on the sides of the fuselage:

y4mX4_89xFF4VlH9J_GJ41HPwsIc4NerI3fwzfuP



y4mUGasXeLD2jaPKsxumu8OVHF762s_z4IIonnky



y4mtDfM6J6nYSWYyz0JFxJf2QMZmt1nkW4cGwdeQ

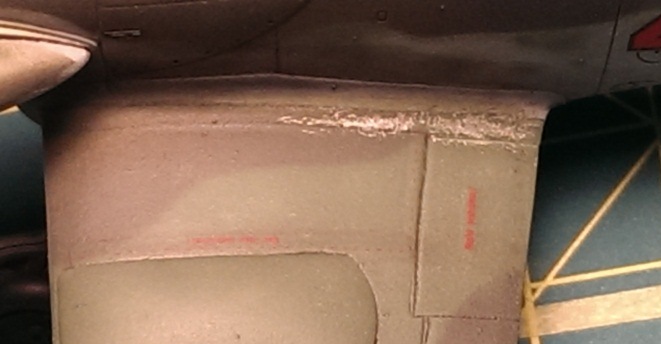

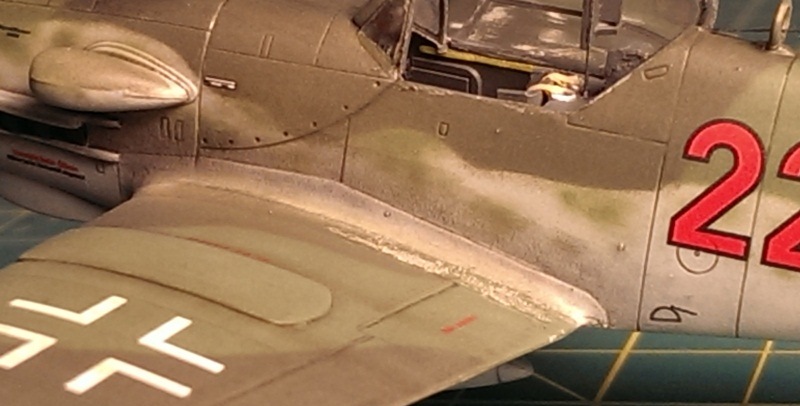

The chipped paint on the port wing root, over which access to the cockpit was made:

y4mzAqoVnhnnnyfRhqnDXT811h3EwODykb3uxdPM

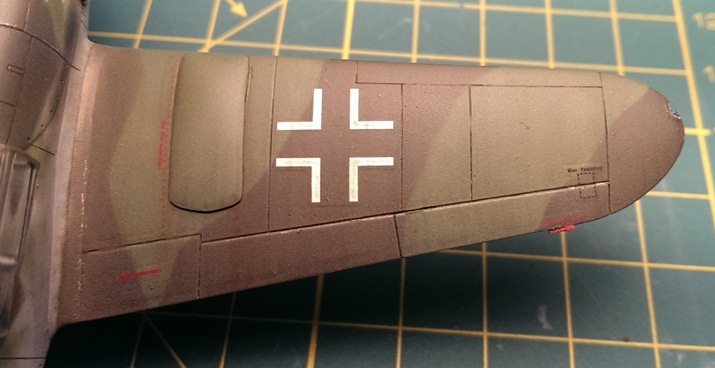

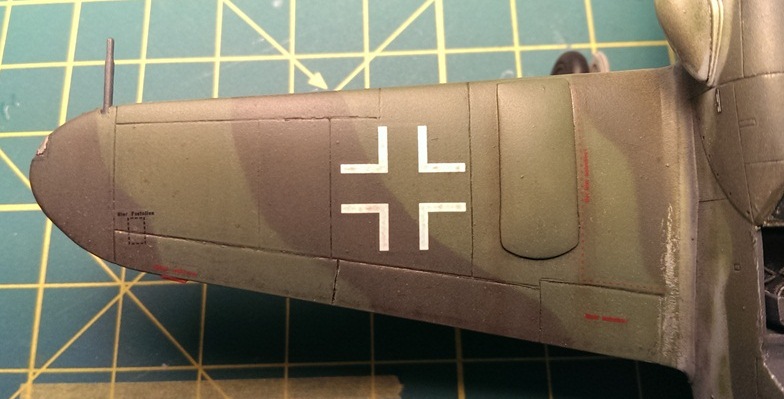

The weathering of the wings' top surfaces, showing dirty streaks along the direction of air flow, and the navigation lights on the tips:

y4m7nRg5NPRf8I_2y767VyerIku0AG0n8VDbOxOd



y4mwgDGn4EUHOTLMd9wUUfXWJcoeABCgbqemjlJg

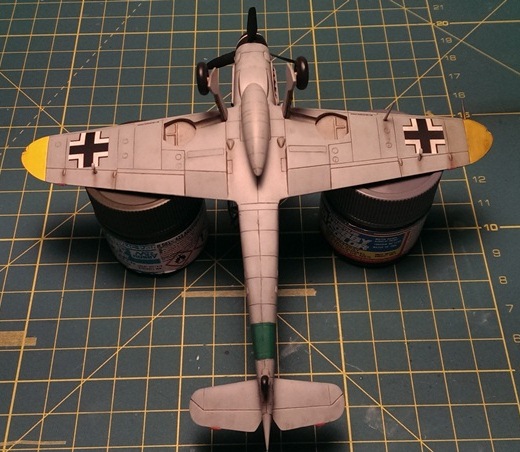

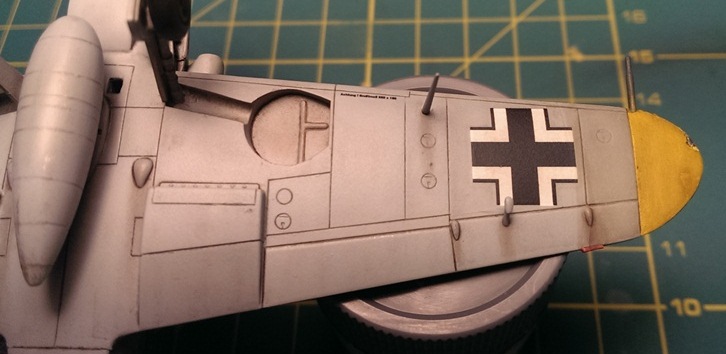

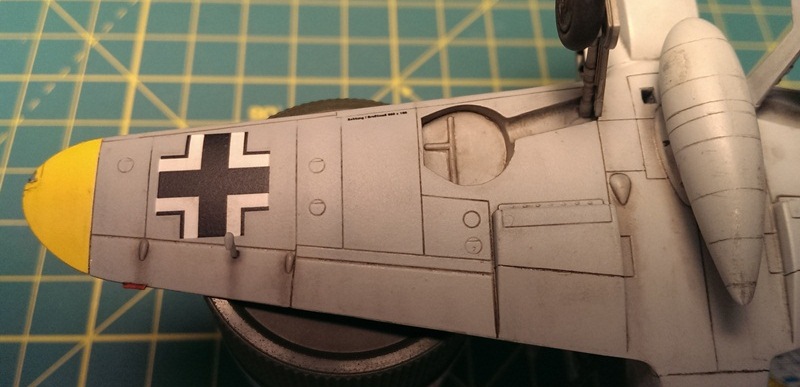

The same for the under surfaces:

y4mQ1OGUln5xFUmEVMmR3vkPaopdaNVVTvwNttai



y4m8hA8cQjntANdZcgxaVVPGgkn-W4vc5AYw-DgX

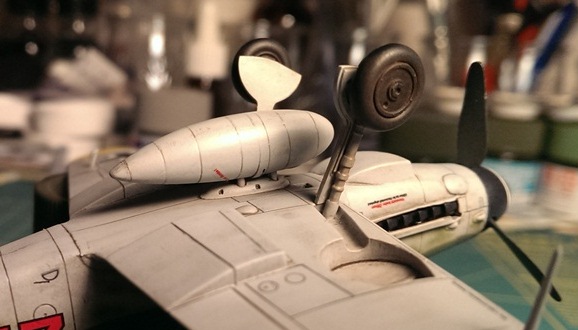

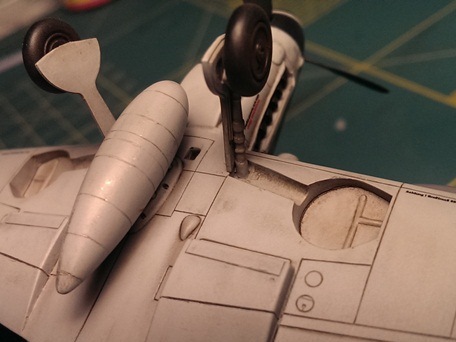

The fuel tank, landing gear and wheel wells:

y4mS8Xp30DbASMjN3yT8c-FaT7XfHHi6NJdN40wQ



y4mvjJ-KmZhi2hCtJEa0N_c7zp7Pt9vUTpUjYKH0

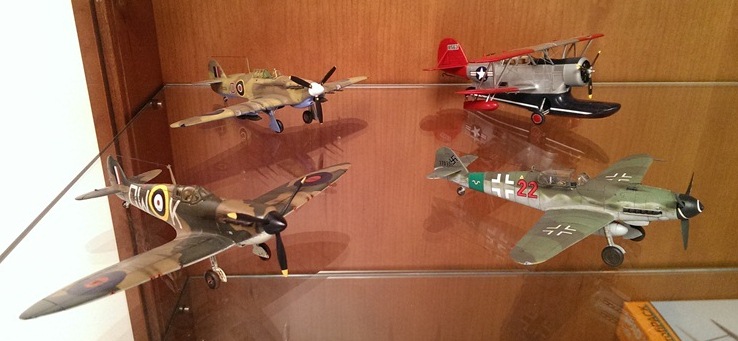

And to finish with, the Bf 109 together with my other finished models (Spit Mk I, Hurry Mk IIc and Grumman Duck - I've published RFI posts for all of them):

y4mM6DOpgdqDkUVFFO4e4hGH4RwlYOvkZIec5Ae5



I hope you liked. All comments are much appreciated.

Cheers,

Jaime
