desmojen Posted December 20, 2007 Share Posted December 20, 2007 Hi Guys, I have here a nice new 1/35 Fieseler Storch to build. It is in the form of a test shot so what I have is a bunch of sprues with a lot of bits. And no instructions.............. Due to the way the kit has been designed and laid out on the sprues a lot of it is fairly self explanatory, however, I could really do with some pictures of the cockpit and the engine bay just to make sure. I have had a look through google without much luck, lots of blurry black and white exterior shots, not much else. I'm also looking for some info regarding colour schemes and markings. I fancy doing a winter camo one, and one that has caught my eye is a hack used by the JG54 Grunherz squadron which appears to wear white distemper over its standard scheme. Can anyone point me towards some profiles or photos of this machine? (or a similar one?) Thanks, Jen. Link to comment Share on other sites More sharing options...
Edgar Posted December 20, 2007 Share Posted December 20, 2007 Wings & Wheels Publications, Special Museum Line no.12, is the Storch in detail. If you can't get hold of one, and would like to borrow mine, let me know. You'll need to be sharp, though, because I'm away, again, tomorrow, 'til next year (and I'll probably need a reminder of the address!) Edgar Link to comment Share on other sites More sharing options...

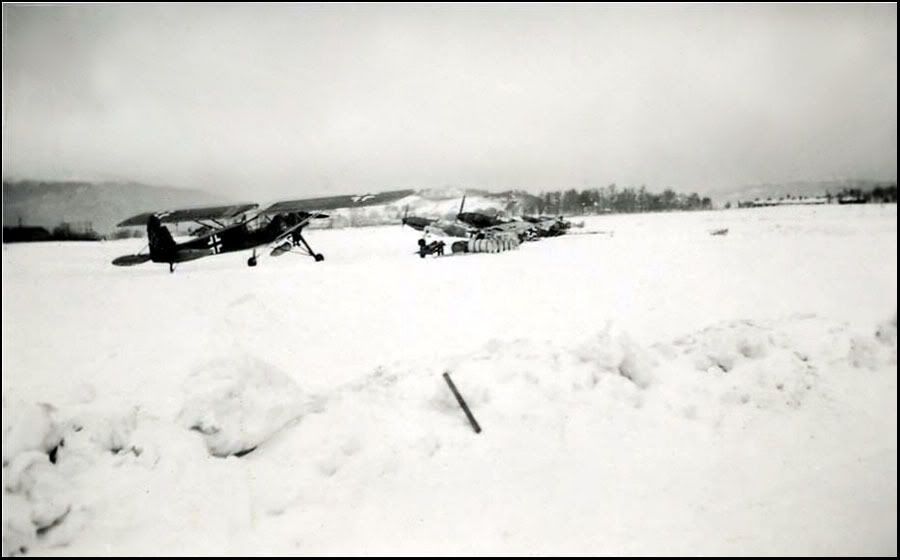

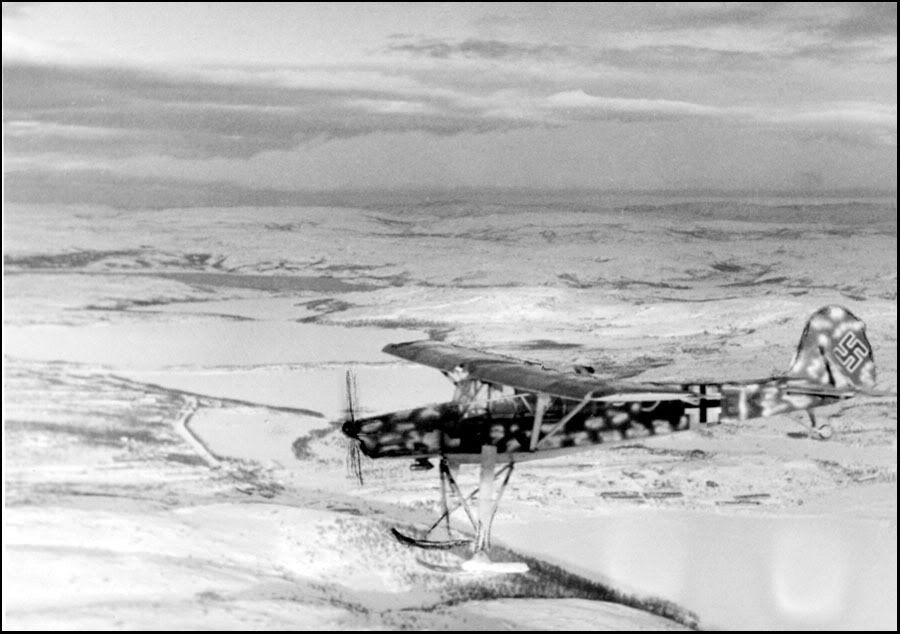

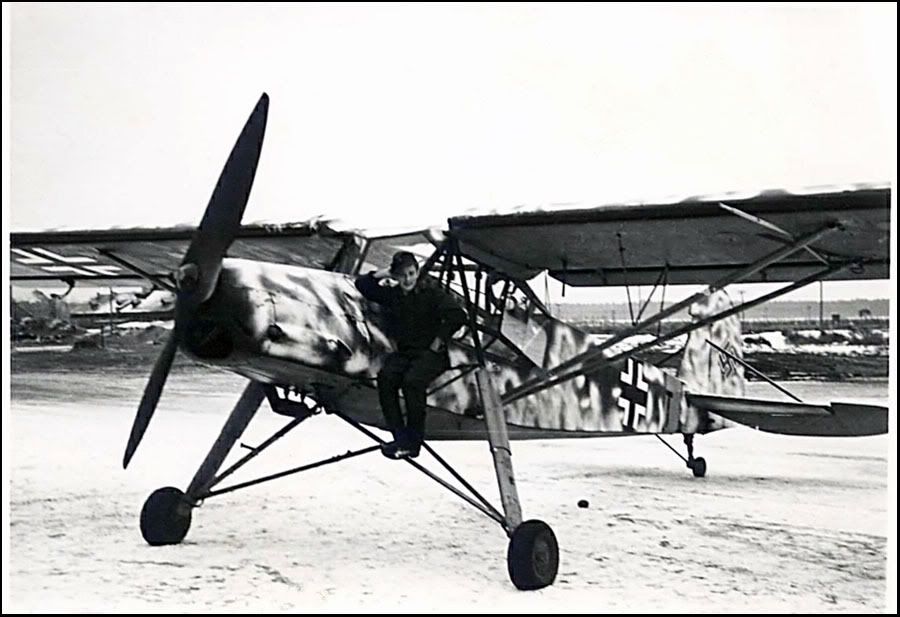

Kyrre Posted December 20, 2007 Share Posted December 20, 2007 Some JG5 Storchs in Northern Norway and Finland. Link to comment Share on other sites More sharing options...
T-Tango Posted December 20, 2007 Share Posted December 20, 2007 Afraid this is all I've got Jen taken at Duxford this year. Link to comment Share on other sites More sharing options...
desmojen Posted December 20, 2007 Author Share Posted December 20, 2007 Oooh, some nice pics there, just what I'm looking for! Thanks Kyre and Tango, thanks very much! Jen. Link to comment Share on other sites More sharing options...
entlim Posted December 20, 2007 Share Posted December 20, 2007 (edited) Jen, loads here: http://www.airliners.net/search/photo.sear...inct_entry=true Edited December 20, 2007 by entlim Link to comment Share on other sites More sharing options...
Ali62 Posted December 20, 2007 Share Posted December 20, 2007 Hi Jen I have the WWP book for sale that Edgar mentions, without wanting to push a sale, it is just if you want one. You could drop me an email or PM, The post is the only draw back at this time of year. The total price including post wil be £10.00. cheers Ali Link to comment Share on other sites More sharing options...
desmojen Posted December 20, 2007 Author Share Posted December 20, 2007 Thanks Ed, I don't know why I never think of looking on Airliners They're mostly restored aircraft but there are still one or two useful ones. Ali, thanks for the offer mate but Edgar is lending me his and it's already on the way, otherwise I'd have taken you up on that one Jen. Link to comment Share on other sites More sharing options...
John Posted December 20, 2007 Share Posted December 20, 2007 I can't really help myself, beyond suggesting that tracking down a copy of the instructions for the 1/32 Hasegawa kit might be useful? John Link to comment Share on other sites More sharing options...
Paul Bradley Posted December 21, 2007 Share Posted December 21, 2007 Here's a couple I took of one of the French-built ones a couple of years ago. Basically the same layout as I recall, though a French a/c expert can help here. Anyway, the pics: Link to comment Share on other sites More sharing options...
desmojen Posted December 21, 2007 Author Share Posted December 21, 2007 Perfect Paul, thanks. Now if the book has a couple of rear facing ones I'm sorted Doesn't look very comfy in there does it Jen. Link to comment Share on other sites More sharing options...
Paul Bradley Posted December 21, 2007 Share Posted December 21, 2007 Your welcome. Well, they weren't made for a Sunday drive up the autobahn, were they? Link to comment Share on other sites More sharing options...
desmojen Posted December 21, 2007 Author Share Posted December 21, 2007 Not fast enough for a start! Jen. Link to comment Share on other sites More sharing options...
sealeopard Posted December 31, 2007 Share Posted December 31, 2007 Hi Jen, Dunno if these piccies of rear cockpit details are of any use: http://airwar.hihome.com/gwp/fi156/gwp-fi156-seat.jpg http://airwar.hihome.com/gwp/fi156/gwp-fi156-backgun.jpg In any case, it would seem that rear cockpit fittings would vary depending on the role the aircraft was being asked to fulfill - air ambulance, staff transport, AOP or whatever. Cheers, Leopard. Link to comment Share on other sites More sharing options...
tango98 Posted December 31, 2007 Share Posted December 31, 2007 Hi Jen, If they would be of any use I have a copy of the factory-applied splinter scheme for the Storch as well as a considerable collection of material regarding which aircraft went to which unit. With JG 54 for example, Storch aircraft would be assigned to the Geschwaderstab (Wing Staff) as well as to the individual Gruppenstab (Group Staffs) and frequently to the individual Staffeln (Squadrons). If you decide on the white over 70/71 scheme don’t forget the yellow fuselage band and yellow-painted lower main wing tips. Here and probably more than you wanted anyway, is a list of Storch aircraft known to have been assigned to JG 54, all are the C-3 version: W.Nr. 5421 coded DO+AW assigned to the Gruppenstab of JG 54 at Witebsk, Russia in Sept.1943. W.Nr. 5563 coded SB+UG assigned to the Stab of the I Gruppe at Malmi in Sept. 1942. W.Nr. 5649 coded BG+II assigned to the Stab of the IV Gruppe at Lohnde near Hannover in Sept.1944. W.Nr.8139 code unknown, assigned to the II. Gruppe in the Kiev area of Russia in Sept. 1943. W.Nr. 110318 coded BL+MH assigned to the Gruppenstab at Krasny-Bor in Sept. 1943. W.Nr. 110332 coded BL+MV assigned to the 4. Staffel at Idriza in Dec. 1943. Hope this is of some use. If you’d like a copy of the camo pattern, drop me a line at [email protected] and I’ll fire a scan off to you. Cheers Dave Link to comment Share on other sites More sharing options...
tango98 Posted December 31, 2007 Share Posted December 31, 2007 Hi again Jen, Just another bit of Storch trivia for you - if this is the Tristar kit then the code letters supplied on the decal sheet for RR+KM are in fact for W.Nr.475089 which was a later C-7 version and not an early A-0/C-1 as claimed by the kit box art/instructions. Cheers Dave Link to comment Share on other sites More sharing options...
