I picked this one up from the recent inbox review pile as it represents a first for me in many ways, and I was inspired to do a UAV by Spence's excellent build here the other day. I also wanted to build something quickly that I could have some fun painting & decaling.

I started it last night, choosing the offensive Hellfire toting version. This requires a few choices throughout the build, the first of which being the shape of the underside fuselage part, of which there are two. The differences all centre around the front of the underside, so check your references and the supplied drawings carefully, as it's easy to get confused. Remembering the addendum, I added fishing weights to the front upper & lower fuselage halves, which were secured with CA, then encased in PVA and left overnight to set up.

The wings interlink and sit on two pegs within the fuselage, so these were added to the lower half and held in place with a clamp to ensure a good bond. When cured, I could add the top fuselage, being careful to choose and install the correct sensor "dustbin" that hangs from the underside of the nose. I elected not to bother with a spinnable prop in case I broke the blades off during building, as they are quite weak & prone to damage. They were glued into the spinner and set aside for later.

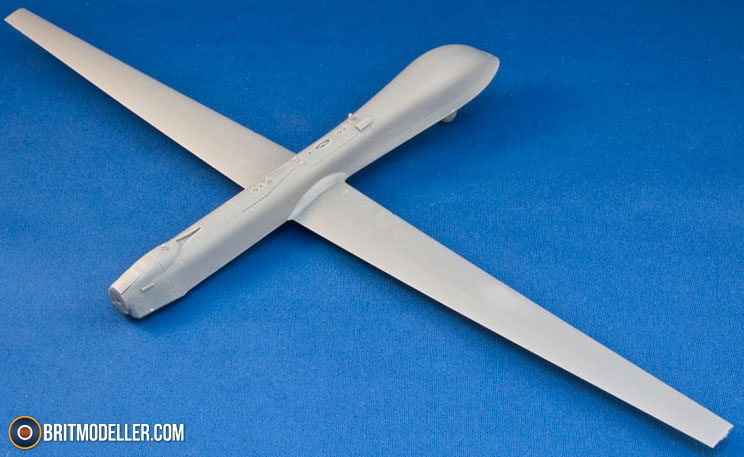

Posted Image

The airframe by this point was looking surprisingly finished, and the work I'd done straightening the wings with hot water and a stint taped to a flat surface showed up well. It is now a case of choosing which parts can be added to the airframe to simplify painting, so I have begun building up the missile rails, landing gear struts and the various lumps, bumps and fins that finish off the build. The only flaws in the design of this kit has been in location of some of the parts. The central fin A37 doesn't have a corresponding depression to the fuselage's pip, but a quick measure, mark & drill with a 0.8mm drill soon resolved that one. You have to be careful to sight the vanes by eye to ensure they end up perpendicular to the wings - something that could have been resolved with more substantial mating tabs. Still - not to worry! :)

The landing gear struts are made from a relatively large number of parts, but I have left off the wheels for ease of painting. At time of writing, the front wheel yolk looks like it could be a bit of a problem, as the contact patch is miniscule, the mating pips soft, and I can just see it snapping off at some point. I'll look at addressing this by using some brass rod to pin it in place, I suspect.

#2 Mike

Mike

    Proud dad

  • Root Admin
  • 1,029,954 posts

Posted 07 April 2010 - 01:00 PM

The nose-wheel proved to be very weak, as I expected, so I pinned the join with a piece of steel micro-tubing, taking the opportunity to offset the wheel a little to the port to give its stance a little interest. once that was done, the various antennae were added, together with two tiny little clear parts, which suprisingly I managed not to lose. The diagonal tail parts have a small pin to attach them to the fuselage, and could probably do with an extra pin to secure them, but as the mating surface was quite large, I decided to risk it, ensuring plenty of liquid glue was used to make a strong bond.

The instructions would have you make a sprue antenna for the nose, but I elected to use some fine brass wire I have in stock, as I figured it would be more resistant to knocks. The instructions don't tell you the length, but a quick measure on the painting instructions set the length at around the same as the chord of the diagonal tail, so I cut a little extra and drilled out the receptacle so that it would be well anchored.

It turns out that Mr Surfacer primer is remarkably similar to the finished paint color, but I will be adding a little pre-shade around panel lines to break up the grey, so there will be another painting session, hopefully later today.

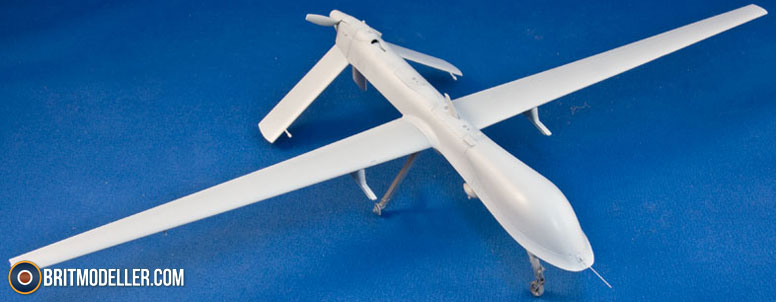

Posted Image

#3 smeds

smeds

    Obsessed Member

  • Members
  • 783 posts

Posted 07 April 2010 - 02:34 PM

Looks like a great little kit, but where's the 1/48 Global Hawk !!

Found this, quite funny.

http://www.youtube.c...feature=related

smeds

Edited by smeds, 07 April 2010 - 02:52 PM.


#4 Mike

Mike

    Proud dad

  • Root Admin
  • 1,029,954 posts

Posted 10 April 2010 - 03:58 PM

Ok... I did a very clumsy thing, and dropped a bottle of deionised water on this... inside its bottle. It snapped off the landing gear, but not at the attachment points, so I was right about them being strong! :lol: A bit of CA and some resetting of angles, coupled with some rooting round in my spray booth to find the missing small parts, and we're off again ^_^

A pre-shade of panzer grey was put on, followed by a coat of Light Compass Grey to all but obliterate the pre-shade. Over that I added a slightly lightened coat on the upper surfaces and leading edges of the wings, just to add a bit of interest and simulate light falling on the airframe.

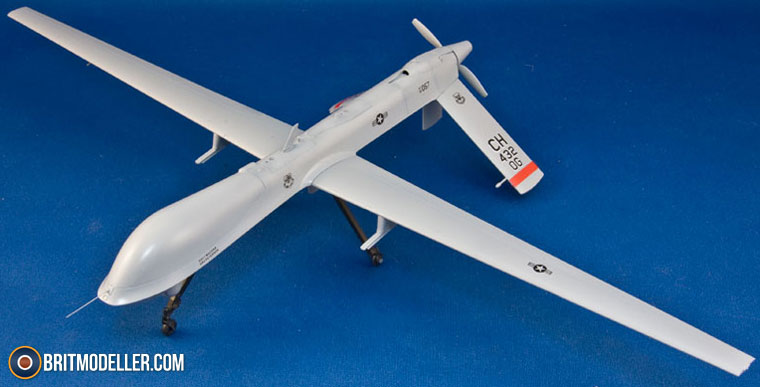

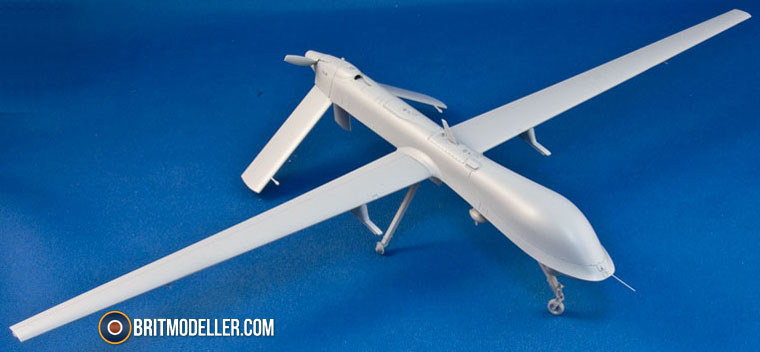

Posted Image

Posted Image

It doesn't look too much different from a coat of primer, but the subtle shades show up a little better in the flesh :)

Detail painting next, then decals. Told you it would be a quick build ;)

#5 Mike

Mike

    Proud dad

  • Root Admin
  • 1,029,954 posts

Posted 12 April 2010 - 07:18 PM

Shiny coat added yesterday, decals added today, which took all of 20 minutes. Bronco's decals take a while to lift off the backing paper, but they are lovely & go down wafer thin on the model. I'm very impressed :)

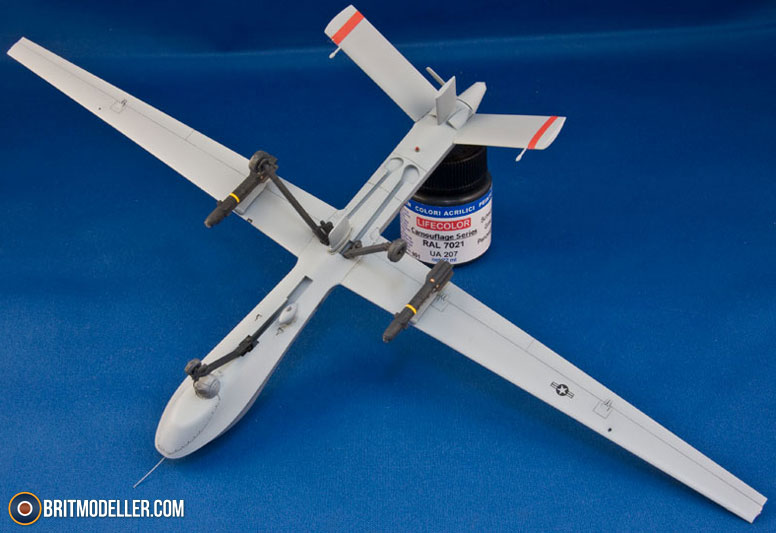

Posted Image

I'm just putting a neutral panel line wash on, then onto the internet to see whether these things get dirty or not :)
