Looking for Sea Vixen cockpit pictures


  • Please log in to reply
14 replies to this topic

#1 FredCC

FredCC

    Newbie

  • Members
  • 35 posts

Posted 18 May 2009 - 02:52 PM

Hi all,

I'm currently building Xtrakit Sea Vixen for MAI.
Well, I'd say it's not an easy build...

I found some nice details pictures on Prime Portal but couldn't find a single cockpit picture.
Does anyone know if there are some available on internet?

Thanks in advance,
Fred

#2 Graham T

Graham T

    From a time when dinosaurs weren't just confined to zoos!

  • Members
  • 2,103 posts

Posted 18 May 2009 - 02:54 PM

"Google is your friend"!

http://images.google...d...l=en&tab=wi

#3 FredCC

FredCC

    Newbie

  • Members
  • 35 posts

Posted 18 May 2009 - 03:04 PM

I went there:
http://www.primeport...he_airstrip.htm
But never tried Google....no comments!

Thanks Graham.

#4 Graham T

Graham T

    From a time when dinosaurs weren't just confined to zoos!

  • Members
  • 2,103 posts

Posted 18 May 2009 - 03:07 PM

I had always thought that there was direct communication with the navigators compartment but looking at those pics it appears they are isolated from one another??

#5 Edgar

Edgar

    Very Obsessed Member

  • Members
  • 4,992 posts

Posted 18 May 2009 - 03:19 PM

Although probably not able to talk, directly, there was a hole, in the starboard cockpit wall, just above the armrest of the pilot's seat; I suppose they could have held hands, in an emergency.
If what you have isn't enough, I have several photos of the pilot's cockpit, and the observer's "coal-hole."
Edgar

Edited by Edgar, 18 May 2009 - 03:21 PM.


#6 FredCC

FredCC

    Newbie

  • Members
  • 35 posts

Posted 18 May 2009 - 03:35 PM

Hello Edgar,
I'd be more than interested in getting your cockpit and coal-hole pictures.
Would you be so kind as to post them here or email them to me?
Thanks,
Fred

#7 Lightningboy2000

Lightningboy2000

    Obsessed Member

  • Gold Member
  • 759 posts

Posted 19 May 2009 - 12:19 AM

Hi all,

I'm currently building Xtrakit Sea Vixen for MAI.
Well, I'd say it's not an easy build...

I found some nice details pictures on Prime Portal but couldn't find a single cockpit picture.
Does anyone know if there are some available on internet?

Thanks in advance,
Fred



Hi Fred, just saw this and thought that some pics of mine would help. I took these pics for the very same reason!
Posted Image
Posted Image
Posted Image
Posted Image
Happy modelling!
I still havn't got round to starting mine yet which will include the airwaves sets and the resin nose radar set.
Can't wait to see the article!

#8 Lord Mureth

Lord Mureth

    New Member

  • Members
  • 87 posts

Posted 19 May 2009 - 07:41 AM

There's plenty more good ones on ThunderandLightnings; apparently, the observer was able to give the pilot a jab with a pen if necessary!

#9 FredCC

FredCC

    Newbie

  • Members
  • 35 posts

Posted 19 May 2009 - 05:52 PM

Many thanks to both of you.

#10 spike7451

spike7451

    Very Obsessed Member

  • Members
  • 3,215 posts

Posted 19 May 2009 - 07:09 PM

The was a supliment in Fine Scale some time ago & the main feature was superdetailing the Sea Vixen,I have it somewhere.

#11 seavixenxj494

seavixenxj494

    Established Member

  • Members
  • 225 posts

Posted 20 May 2009 - 10:26 AM

i reconise that sea vixen cockpit anywhere , thats 494 :) just want to add a quick point some of the instrumentation is not as you would expect in a FAW2 i.e the radar altimiter at the top of the center consul where you would find the strike sight saw removed to fit martel missile trials equpiment :) compare with thunder and lightninings to get a better example :)

#12 Edgar

Edgar

    Very Obsessed Member

  • Members
  • 4,992 posts

Posted 20 May 2009 - 12:44 PM

Hello Edgar,
I'd be more than interested in getting your cockpit and coal-hole pictures.
Would you be so kind as to post them here or email them to me?
Thanks,
Fred

Fred, if you still want to borrow my spare set (7" x 5" & 6" x 4") you're welcome; there are around 100, in all, of more than one airframe, and include wheel wells, and odd areas. The "coal hole" photos will need a bit of head-scratching, since I was almost upside-down, in a just-about-adequately-lit Halton workshop, in pre-digital days, so it was "point and hope." To try to keep distortion to a minimum, I always used a 35mm lens, and there was barely enough room to get at it. If you'd like to let me have an address, I'll get them to you.
Edgar

#13 Fmk.6john

Fmk.6john

    Doesn't know enough about Lightnings!!!.

  • Members
  • 1,620 posts

Posted 20 May 2009 - 02:41 PM

Afternoon all,


I had a dig about the hard drive this afternoon and came up with these......

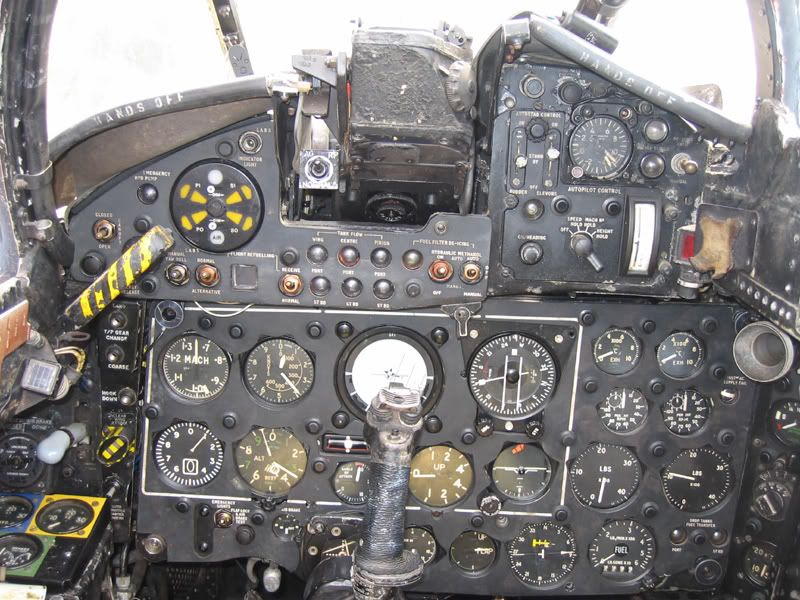

Pilots main panel....

Posted Image

Posted Image

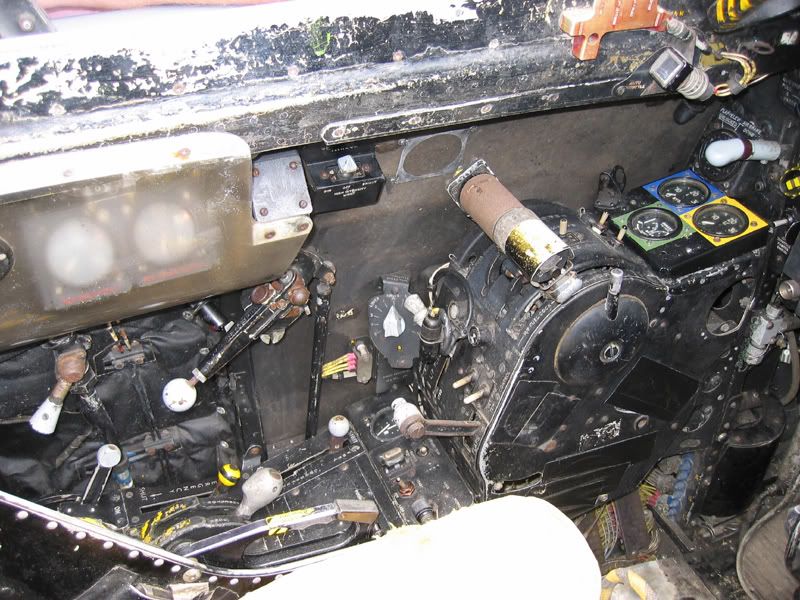

Left hand side of the main cockpit....

Posted Image

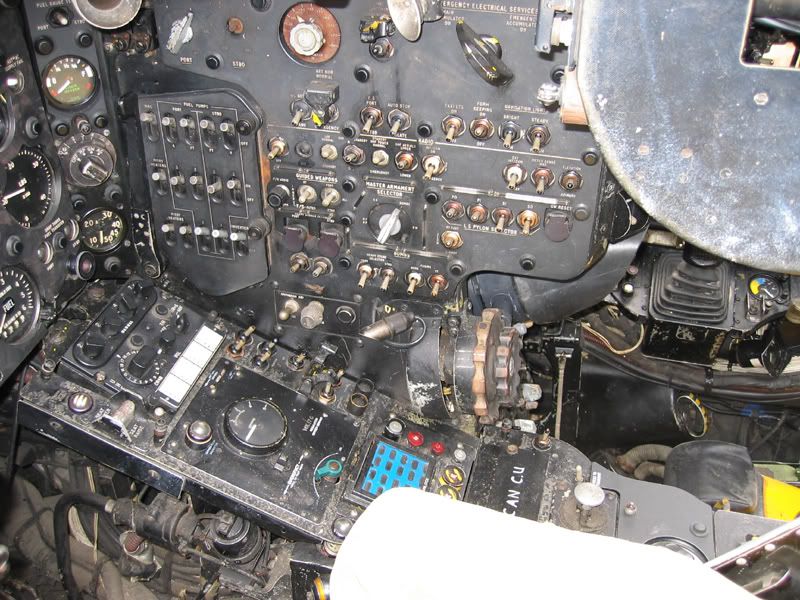

Right hand side of main cockpit....

Posted Image

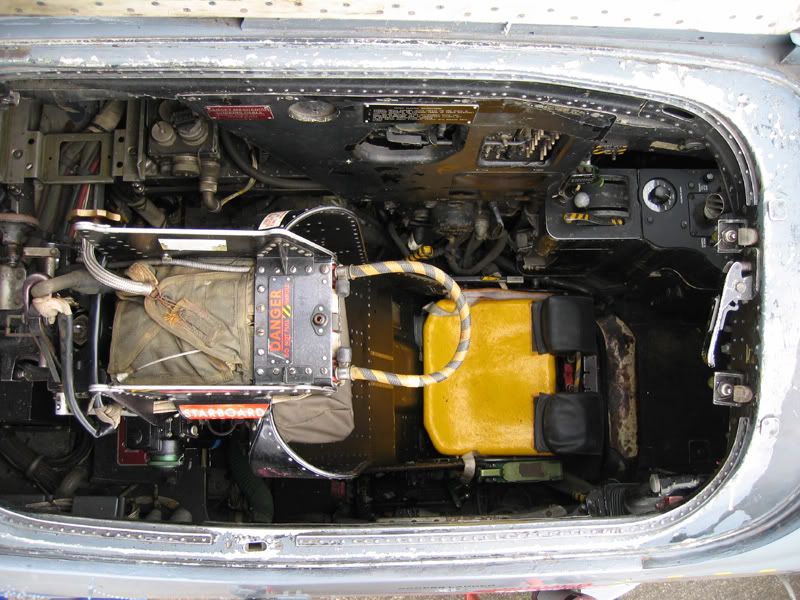

looking down into the 'coal hole'.....

Posted Image

Left hand side of 'coal hole'....

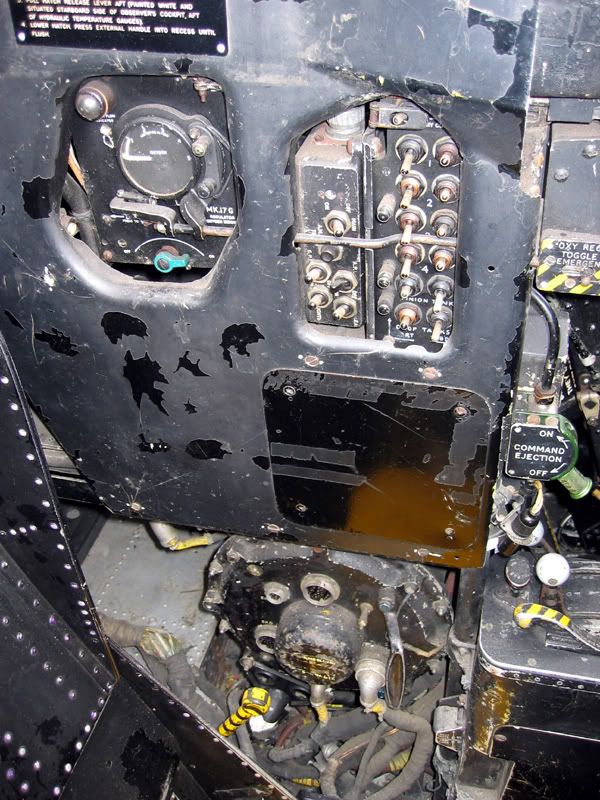

Posted Image

Right hand side of the 'coal hole'.....

Posted Image

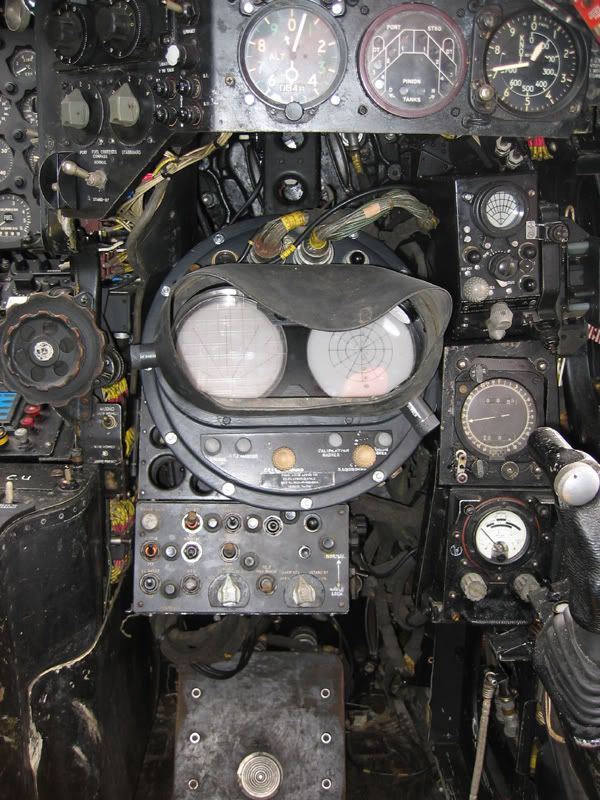

The Nav's main panel....

Posted Image


All pics are from XN651, hope these help!,


Regards,


JB.

#14 Julien

Julien

    Super Samurai Sweeper

  • Walkaround Coordinator
  • 13,297 posts

Posted 20 May 2009 - 08:07 PM

A couple of the one at the Mossie Museum
Posted Image
Posted Image
Posted Image

Julien

#15 FredCC

FredCC

    Newbie

  • Members
  • 35 posts

Posted 30 May 2009 - 06:08 AM

Thanks to both.
Picyures will be usefull.

Fred, trying to survive to his MPM Sea Vixen!
