I have been looking for ways to contact John Adams on site to see if he still has his article on making vac-form models available, but have not found a way. Maybe he will come across this thread & give us an answer. Carl T

#22 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 13 August 2012 - 09:52 PM

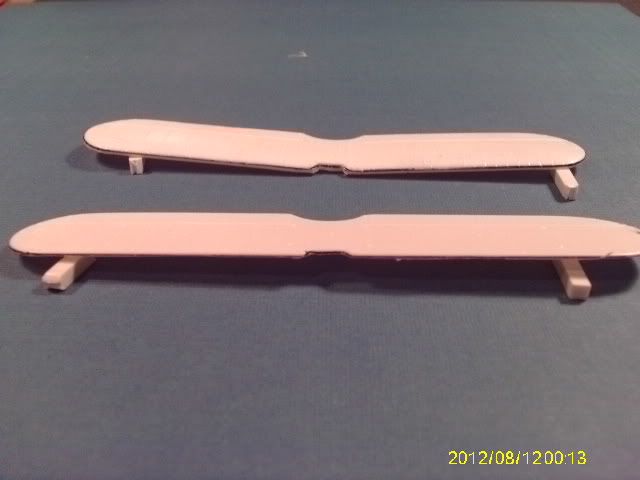

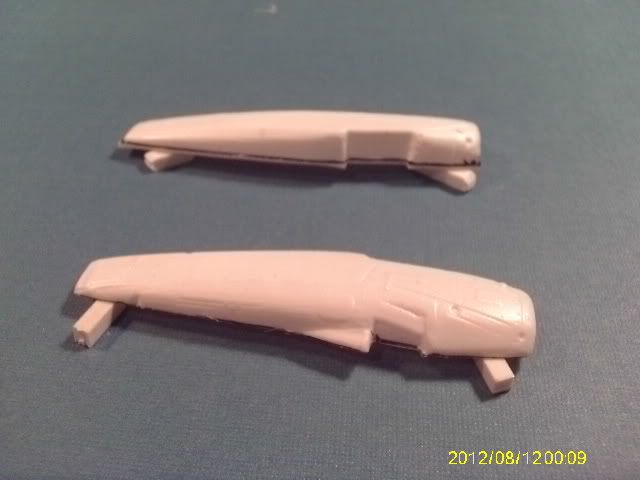

These first 2 pictures show the before & after sanding of the fuselage & upper wing of a Flycatcher.

Posted Image

Posted Image

What I do when sanding down the parts is to lay a length of Scotch brand 2 sided tape on the model part. The fuselage only needed 1 piece. On the wing I put one piece as close as I can to the leading edge, & another as close to the trailing edge & overlapping the other one. Due to having to pick up the part to check my progress, I generally have to do this twice.
I would advise anyone contemplating building a large number of these models to wear a respirator while sanding the parts. The dust & powder that comes from the sanding is very fine. I am betting that like resin dust that is not good for you. I am not trying to dissuade anyone from building this type of model, I am just trying to offer good advice.
This next picture is my workbench covered with a piece of lightweight black cotton. Carl T

#23 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 13 August 2012 - 09:56 PM

This is my workbench covered with a piece of black cloth. Carl T

Posted Image

#24 Matt Bittner

Matt Bittner

    Newbie

  • Members
  • 10 posts

Posted 14 August 2012 - 09:26 PM

Or, sand your model in a sink, using water. Then the slurry of "stuff" will be washed away.

#25 Don McIntyre

Don McIntyre

    Very Obsessed Member

  • Members
  • 1,554 posts

Posted 14 August 2012 - 09:51 PM

I like Matt's method, but those of us "of a certain age" can feel the back aching just thinking about it… :clif:

#26 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 14 August 2012 - 10:13 PM

Or, sand your model in a sink, using water. Then the slurry of "stuff" will be washed away.

Matt the sandpaper that I am using cannot be used wet, I am sorry to say. I like this kind because I can set in my comfortable padded chair while I am working on my models. At nearly 81 years old I am as lazy as I can get too. Carl T

#27 Dave Swindell

Dave Swindell

    Obsessed Member

  • Gold Member
  • 636 posts

Posted 14 August 2012 - 10:35 PM

I have been looking for ways to contact John Adams on site to see if he still has his article on making vac-form models available, but have not found a way. Maybe he will come across this thread & give us an answer. Carl T


Carl, John's article is here

#28 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 15 August 2012 - 12:03 AM

Thank you both Matt & Dave for your kind help. I really appreciate any input given by anyone that makes these vac-form models. Matt is very right about being able to sand these models under water.And now anyone that wants to can print out John Adams article.It is my hope that others with more experience in building these models well likewise feel free to have their say, & to add to the dialog.
My aim in doing this thread is to show that any average modeler can build a vac-form model easily with a little patience & practice. I am building them in this way, & with these tools simply because they work easily for me. I have right now over a dozen models cut out waiting to be sanded out. This includes the Douglas PD-1 flying boat. I also have another 3 dozen or more in boxes awaiting their turn under the knife.
In the July 2012 issue of Model Aircraft on page 76 is a full page write-up about the DVD reprint Of Richard Staszak's book Building & improving vacuum formed model aircraft.
Now to get back to my models. I have only a few more parts to sand & the first Flycatcher will be ready to assemble. I am going to sand down all 6 models before I start the assembly stage. I am also trying to make up my mind which models that I want to add interior detail in. Carl T

#29 Don McIntyre

Don McIntyre

    Very Obsessed Member

  • Members
  • 1,554 posts

Posted 15 August 2012 - 03:41 AM

Another method of marking your parts was shown to me by Bill Koster many years ago at a NOREASTCON. Instead of using the "Sharpie" pen method, Bill Sprayed the plastic sheet with Gray Primer. Then he cut out the parts and using, essentially, Carl's method above, you sand back until you can see the primer don't see any white on the edge of the part.

#30 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 15 August 2012 - 04:04 AM

I remember Mr.Koster showing me that method too. I did a couple of models using it & it worked very well. Bill is one excellent vac-form model builder as well as a designer & producer. He is always very approachable & free with advice & guidence. I was fortunate enough to be able to talk with him at many of the shows in northern New England when he lived down in Mass. He very often showed the modelers present how he made his models. They were always as good as any regular plastic model.
:thumbsup2: To our UK fellow modellers I hold Bill in the same reguard as I do John Adams. Both are the best that there is. We are very lucky that they both have been a part of this great hobby we enjoy. Carl T

#31 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 16 August 2012 - 07:35 AM

Today I finished sanding out the first 4 of the 6 models. I have 1 each of the Flycatcher & Nimrod left to sand down. I have found myself taking more off the wings & tailplanes, making the leading & trailing edges thinner with the last model compared to the first one. It has been interesting ,also, to fing out that although all 6 models are from the same producer, Esoteric, the thickness of the plastic used in the different models varies so much. One was so thin that I had to be very careful so that I did not over sand, more than was necessary; while another one seemed to never going to get done it was so thick. Barrring there being any problems coming up, I should have the remaining 2 models sanded out by tomorrow night. Carl T

#32 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 16 August 2012 - 05:57 PM

Since I plan on adding interior detail to most of these models, I have decided to do one of the Fairey Flycatchers with the cockpit parts as provided with the model with no extra detail added. just to show how that looks. Carl T :thumbsup2:

#33 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 17 August 2012 - 03:33 AM

I just finished sanding out the last of the 6 models. It has gone along much easier & faster than I had anticipated. I will now combine doing these models with finishing my SOYA models. Should all be a lot of fun when I have finished everything. I am looking forward to it.
About the sanding process. On each of the fuselages I put on 1 long strip of clear 2 sided Scotch tape, which allowed me to use as many of my fingers as was necessary to put even pressure all along the fuselage part. On the wings, & tailplanes I used 1 piece on both the leading & trailing edges. I did this so that I could apply pressure on either side as I felt it was needed. For some reason I cannot explain the leading edge always came out thinner first. The only model that took a long time to sand out was the Blackburn Dart. On each part I changed the tape 2 to 4 times. Carl T :thumbsup2:

#34 martin hale

martin hale

    Barking Mad!

  • Gold Member
  • 5,635 posts

Posted 17 August 2012 - 09:36 AM

Looking forward to seeing the builds underway, especially the Dart.

Martin

#35 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 17 August 2012 - 12:07 PM

Martin, the Dart is one of the models that I am going to do some extra work on. The wing is a single piece, not with an underside piece. I also have a set of plans by Harry Woodman that have interior detail which I have had enlarged to the model size. Very little of it will be seen but I would still like to add it.
The detail for the T4M-1 I am getting from a thead on ARC discussion forums where ollieholmes scratchbuilt built a 1/48th scale model of it & included interior detail. The thread has a picture of a stripped down fuselage & his work in progress.
The cockpit detail for the Flycatcher I am getting from reading the build/review of the Silver Wings model on thier site.
The cockpit detail for the Nimrod I am getting from the Mushroom publications book.
Out of all of this we will see what I can come up with. None of these fuselages are very big to begin with. We will see whar happens. Carl

#36 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 17 August 2012 - 03:13 PM

I was just given one of the Rareplanes 1/72nd scale Bell XFM-1 AIRACUDAs vac-forms thanks to my friend Bob G. I will be outlining & cutting out parts over the weekend. It reaslly looks like a very nice model. Carl T :thumbsup2:

#37 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 18 August 2012 - 07:08 PM

One of the nice things about being a modeler of my age is that when I was in my 20s & 30s model aircraft magazines often had scale aircraft plans by some of the best draughtsmen of the time. Model Airplane News in the US, & Aeromodeller in the UK, with Aviation News a little later were the main magazines that I followed. The draughtsmen were William Wylam, Joseph Nieto, Bjorn Karlstrom. Begen Hardesty, Ian Stair, Peter Westberg, Harry Woodman & many others. I bring this up now because I want to show where I have gotten the ideas for the detail I plan to add to 2 of my models. The first is for the fuselage detail in the Blackburn Dart. The full plan is by Harry Woodman, & I had it enlarged to the model size. I have included my 6 inch steel rule for size comparison.

Posted Image

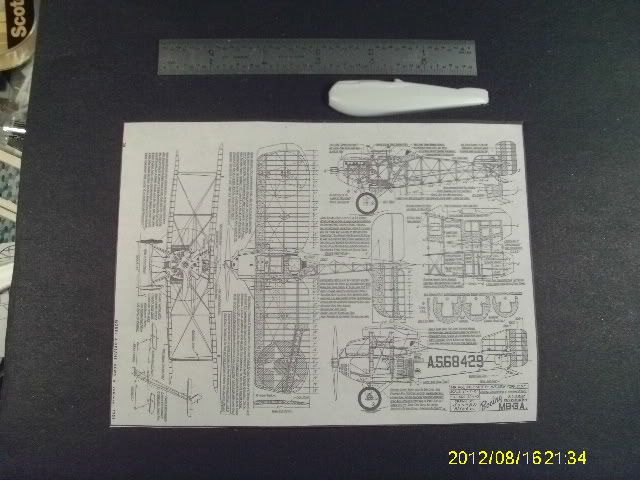

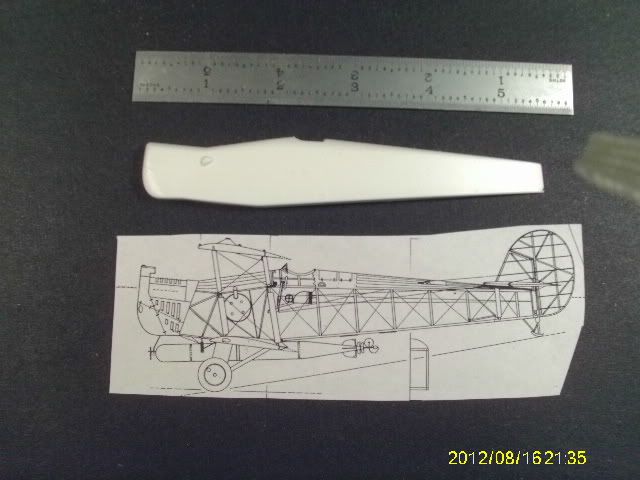

This next picture is for a Boeing MB3A model by Sierra Models in 1/72nd scale. The plan is by Joseph Nieto & is reduced down from 1/48th scale. It was printed in the January 1952 issue of Model Airplane News. You can see plainly the extensive detail that may be added. This is a model that I will be making a bit later. A model fuselage half is next to each plan. Carl T :thumbsup2:

Posted Image

#38 airhead

airhead

    New Member

  • Members
  • 136 posts

Posted 18 August 2012 - 07:16 PM

I agree, those drawings are little goldmines.

#39 p-26luvr

p-26luvr

    Very Obsessed Member

  • Members
  • 1,158 posts

Posted 18 August 2012 - 08:09 PM

For anyone so inclined to look it up. I did a google search for the Blackburn T3 Velos, which was a 2 seat version of the Dart specifically designed for the Greek navy for coastal patrol work. I found a 7 minute 47 second video of the T3 Velos prototype, I think, flying, taking off, landing, & dropping a torpedo, plus shots of it on a beaching trolley.
The video is listed under; Live Leak.com-Unknown Torpedo Plane ( comments )
For me it is a very interesting video because the plane was huge for the single seat version, & to watch the floatplane version taking off & dropping torpedos, particularly the first one.
I also found in the same searc some pictures & a plan that shows both the early & developed version that is very tempting to make as a conversion of my Dart model. Carl T :evil_laugh:

#40 Matt Bittner

Matt Bittner

    Newbie

  • Members
  • 10 posts

Posted 19 August 2012 - 12:01 AM

Carl, willing to share those MB3 plans/drawings?
