1/24 Airfix Fw 190 A?


  • Please log in to reply
34 replies to this topic

#1 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 29 April 2012 - 01:00 AM

While I await some bits for the Stuka from overseas I broke open the Anton. The plan is to just concentrate on doing exterior detailing and have a bit of fun painting. Much like i did with the Hurricane I built at the start of the year.

Not too sure which exact kind of Anton yet but leaning towards an A6.

Have started work on the major panels, thinning edges and sanding & fettling to get a better fit but I obsessed on the ETC 501 and got it finished less paint.


Posted Image

Posted Image

Hope you like. Itching to get back to work on the Berta....

Dan

#2 woody37

woody37

    Completely Obsessed Member

  • Product Reviewer
  • 6,483 posts

Posted 29 April 2012 - 09:35 AM

Wow, that's a great start. A work of art in itself !

#3 jacksdad

jacksdad

    Very Obsessed Member

  • Members
  • 2,802 posts

Posted 29 April 2012 - 09:40 AM

Superb work Dan.
I'm really looking forward to your work on this. I will certainly be using it for reference when I do my next one.

Steve

#4 Mottlemaster

Mottlemaster

    Obsessed Member

  • Members
  • 551 posts

Posted 29 April 2012 - 10:07 AM

Very much looking forward to seeing this come together So far WOW

#5 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 30 April 2012 - 12:28 PM

Progress;

Done a fair bit of fettling and dry fitting of the major parts. So far so good.

Posted Image

Posted Image

Major problems in the front on top of the cowl just at the gun troughs( hope to fix it with some major shims). I'll need some shims at the front of the wing roots and on the belly at the back of the wing joint. Pretty good really for such an old kit. Cockpit fits in from the bottom but the wings needed a whopping great big brass spar to get some dihedral going. Shudder to think of how I'm going to get the landing gear to have that threefold angle right but I'll worry about that later.

Most of the rest of my time is on thinning edges down and drilling out vents and the like.

Posted Image

Starting to put the exhaust in from squished ali tube.

Posted Image

All good so far and trucking right along.

Woody and Mottlemaster--Glad you like Anton so far. I'll see if I can keep up the good work.

Steve--You're too kind. Don't know what kind of reference this old lump will end up. Just hope to have some fun with this old kit and get some practice in painting.

Thanks for dropping in for a look see.

Dan

#6 Radleigh

Radleigh

    totallyrad.co.uk

  • Members
  • 3,835 posts

Posted 30 April 2012 - 01:17 PM

Nice work, Subscribing!

#7 Silverstone 2

Silverstone 2

    New Member

  • Members
  • 181 posts

Posted 01 May 2012 - 09:05 AM

WOW, this is looking to be the best build of this model yet!

How are you going to tackle the famous Engine assembley length issue?

Are you going to miss out the oval peice inbetween the engine mounts?

I'm extremely interested in how you get on with this Fw-190A!

One of my favourite airplanes, think Trumpeter is releasing a 24th of the A6 this year?

Great job so far by the way!

#8 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 01 May 2012 - 11:15 AM

Hope I can keep you interested Radleigh :)

Silverstone2-- You are too kind Sir. I'm not going to do much detailing of the engine as such as I'm concentrating on the exterior details and paint for this build.

I've started to assemble and clean up the engine parts and I have managed to lop off about 1.5mm out of the engine block between the cylinder rows. From what I've

read I need to take out another 4ish mm to get the fan to sit right inside the cowling. Need to play around with the engine bearers and see if I can get about that much

without making new ones. Priority goes to getting the exhaust done first. I'll post pics as soon as I have something worked out.

I'm not too fussed with Trumpeter kits. I like the way that Airfix have managed the surface detail and shapes on all these old kits.

I just wish there were replacement resin wheels for all the yucky rubber ones. I'm going to have to make holds and cast some up for the Stuka....

Dan

#9 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 04 May 2012 - 08:09 AM

Mr. Rutman cast me up some of his magic.

Posted Image

Got em in the post today and I'm stoked! Just need to build up a gear bay and insert all the bits and away I go.

The gear legs have brass rod in em to give strength. Nice work Mr. Rutman you are both a gentleman and a craftsman of high caliber.

I'm looking over my references and I think my exhausts are a bit too small... in two minds as to how or if I'll make them bigger.

I want to tackle the three cowl flaps this weekend too. I'm also playing around with using my new laser printer to heat transfer resists to make home made photo etching.

More later if it all works as advertised. All that and a hobby swap meet on Sunday. Looks to be a top weekend!

Dan

#10 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 06 May 2012 - 11:26 AM

Not much to report as I spent much of the weekend trying to etch bits of brass :(

Also at SWMBO request(order) started to clean up the man cave.

Posted Image

Posted Image

Posted Image

Got my old eMac up and running and working with the new laser printer so more etching awaits.

Fw-190 got a new exhaust pipe, tricky sucker as lots had to be hacked out to make room for it.

Posted Image

Started work on the cowl flaps;

Posted Image

Posted Image

Posted Image

But on looking at these pics I may just rip it all out and do it again. Concept worked but execution pretty poor :(

Forgot to curve the lone flap and the others not too straight. Need to sleep on it before deciding.

Heaps more to do but will have to wait.

Thanks for looking.

Dan

#11 jacksdad

jacksdad

    Very Obsessed Member

  • Members
  • 2,802 posts

Posted 06 May 2012 - 06:17 PM

Lovely work Dan.
I can't believe your going to miss out the engine. :whistle: It's one of the best bits of the kit. Honest!!

#12 Canuck63

Canuck63

    New Member

  • Members
  • 183 posts

Posted 06 May 2012 - 06:43 PM

A thread I'll follow with utmost interest Dan!How do you like the venerable Airfix Anton?I never had the chance to have one and if we'll wait for the announced Trumpeter release I think we'll starve like the horse that was waiting for the grass to grow!I better get a move on and get myself one!
A modeler can literally go to town detailwise with such a big Wurger.
Those rivets would look more realistic with a coat of primer...I'll leave the sanding dust inside them and fix it with future or Alclad primer....done that on a 1/32 Trumpeter Schwalbe on which I even fuilled up the panelmlines in a way that they could only be "guessed" and I loved the end result!
Hope to see more soon!
Manu

#13 James G

James G

    Obsessed Member

  • Members
  • 757 posts

Posted 06 May 2012 - 07:16 PM

Seriously jealous of your 'man-cave' Dan! I should be so lucky....

#14 PaulT 876

PaulT 876

    New Member

  • Members
  • 144 posts

Posted 06 May 2012 - 07:28 PM

Nice build so far, this is a hard kit to do it justice.
I have one which when I get the time and guts to start it will be made as a NC 900 the French version they used these after the war.
Paul

#15 Canuck63

Canuck63

    New Member

  • Members
  • 183 posts

Posted 06 May 2012 - 07:57 PM

Seriously jealous of your 'man-cave' Dan! I should be so lucky....


+1

#16 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 09 May 2012 - 11:12 AM

Progress;

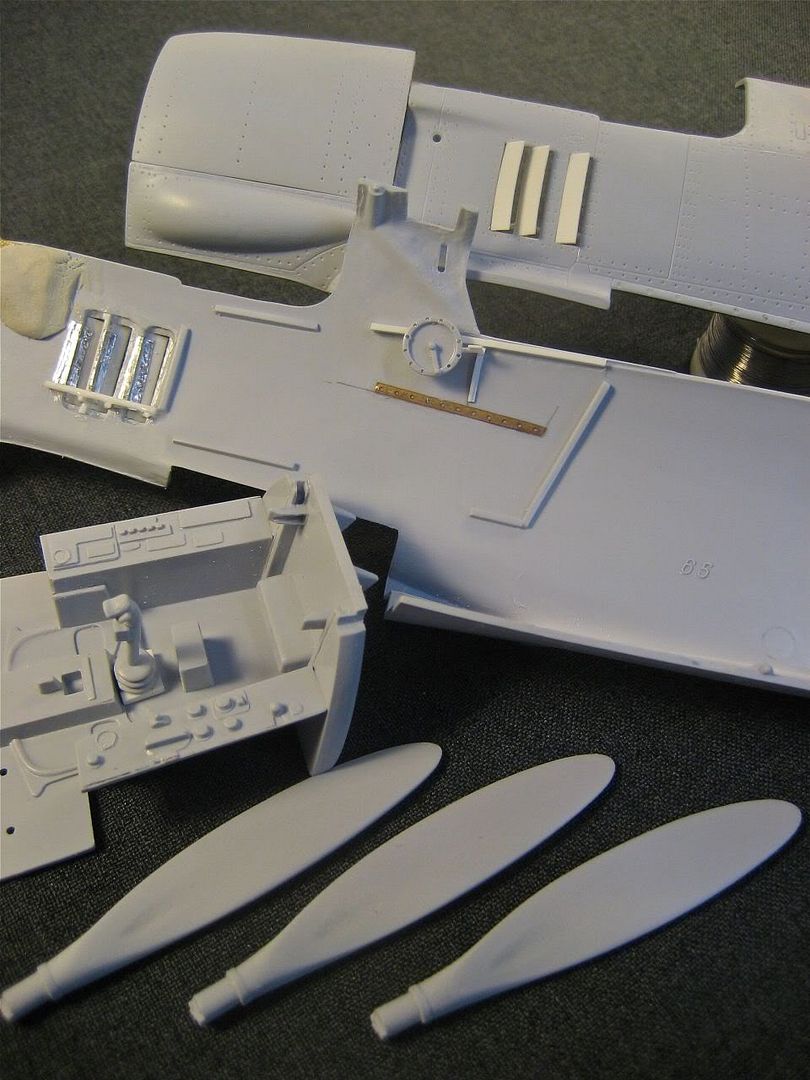

Started work in the cockpit, filled those blinking sink holes in the prop and did the other side of the cowl flaps.

Posted Image

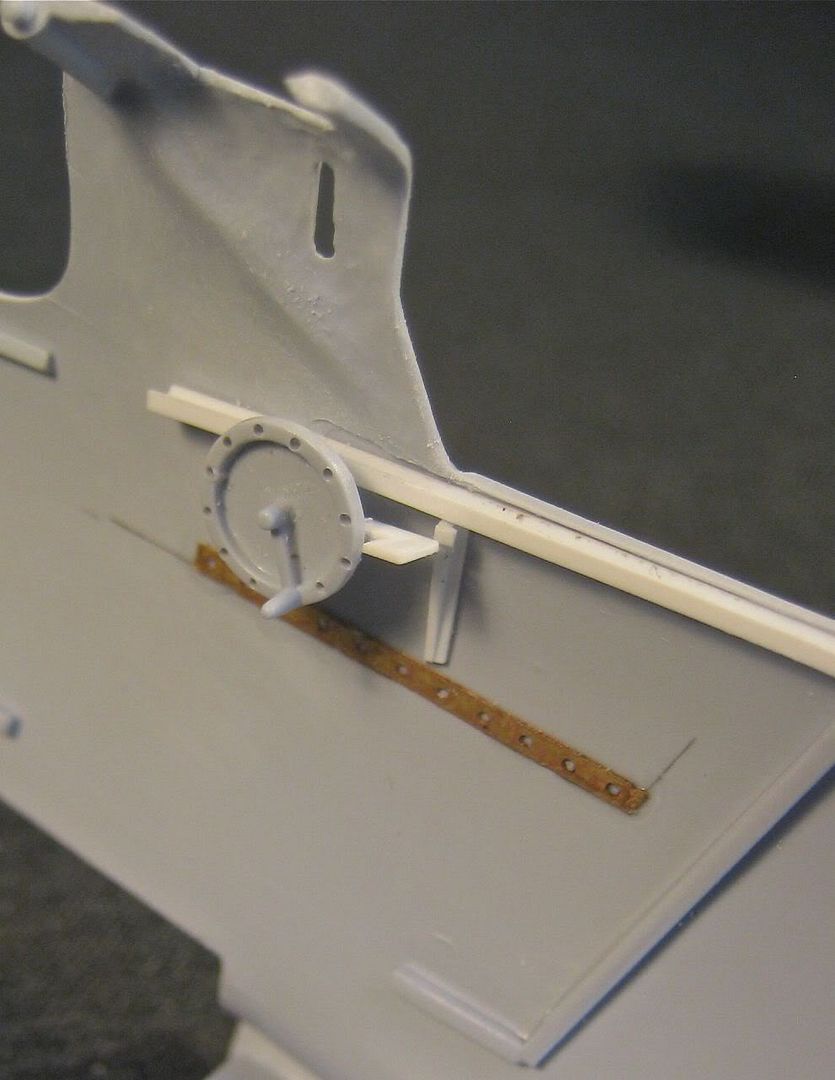

Really thinned the canopy retract and added an emergency jettison lever.

Posted Image

Started to add rivet detail to the underside of the fuselage with a tiny round Dremel ball cutter. ( The kits rivets get real soft on the top and bottom of the fuselage, molding limitations I think.)

Just started mucking about with the engine.

Jacksdad64-- I was concerned that if i mess with the engine too much I'd never get this built. Started to play around with it and it's quite nice.

Manu-- Love it. not to fussed with the rivets as they are quite small. Be better if they had a more stressed skin look and were circles rather than dots but you take what you get. I'm blessed with a nice bungalow to weak off to. One of the main reasons we bought this house was a big detached bungalow.

Paul--Ohh, French scheme. Neato idea! Get building I'd love to see it.


Dan

#17 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 12 May 2012 - 04:48 AM

Progress;

Posted Image

Thinned the IP and added some bitza. Now I have to figure out what I'm going to use for instruments as the ones from Eduard aren't up to scratch. Might have to order the decal ones and go with them as I've wasted a fair bit of time today seeing if I could use the kit glass piece now that I've thinned the IP. Sigh, a bit more thought might have saved me some work. I'm also considering printing some onto clear acetate then flipping it around and painting the back white(old school). Fixed up the step with some pinned brass and the kit part. Doing a lot of cleaning up of parts and test fitting but not much else to show.

Dan

#18 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 15 May 2012 - 12:23 PM

Progress; (If you don't count going half blind cutting tiny bits of brass tube.)

Posted Image

Just wanted to do some hinge detail as not much offered in the kit. Lots more done around the kit but nothing much to take pics of...

Only two more hinges to go. 'Bout had it trying to cut all those 2.5mm bits of brass tube....

#19 ScanmanDan

ScanmanDan

    New Member

  • Members
  • 109 posts

Posted 16 May 2012 - 09:52 AM

Progress;

Cockpit surround. Filed out the channel for the canopy eject rod added another piano hinge and some more spurious details. Got to whip out the paint, yeah!

Posted Image

Posted Image

Worked over the gun cowl.

Posted Image



Dan

#20 andym

andym

    Scot wi mony a post

  • Members
  • 1,270 posts

Posted 16 May 2012 - 09:59 AM

How did you fit these extra shelves in the Ikea glass cabinets in your workroom? I've been wondering how I can do it myself?

Thanks
Andy
