1/32 RB-51 "Red Baron" racing Mustang


  • Please log in to reply
94 replies to this topic

#1 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 22 July 2008 - 09:20 PM

I am just about to start building the "Red Baron", a famous American pylon racer from the 1970's, and winner of many air racing trophies and the worlds fastest piston aircraft until quite recently. I won't go into too much history here, there is plenty of info on the web and in print, except the Baron crashed while competing at the 1979 Reno Air Races, thankfully the pilot Steve Hinton survived.
This build follows on from Voodoo, another modified Mustang with a truly wacky but awesome paint scheme that I completed last year. I hope to draw on my experiences there and improve the quality of my build. Voodoo was converted from the 1/32 Hasegawa kit, dated now, but an excellent starting point. It has raised panel lines for a start, so no filling there-most of these racers have their panels lines filled in to improve aerodynamics, so they can look a little spartan in areas( especially if you are unaware of that). They just got sanded off. Again I won't go into too much detail about Voodoo, suffice to say that I had to build a new radiator assembly, cockpit, fuselage spine, tail, tailplanes chopped down and elevators separated, wings the same, new scratch built wheels, nose, spinner, props etc...and of course canopy. I then had everything cast up so I could produce more in the future, effectively making it a kit. Luckily the Baron shares some commonality with Voodoo, so the conversion from that won't be as extreme, but she will need a new stock radiator which I will graft on from another Hasegawa kit, and new nose and counter rotating prop which will be the biggest job. The cockpit is different too, but not too bad, though the canopy sliding mechanism is slightly different.
Anyway, I will post some pics of my Voodoo parts, and I've added the stock kit main assemblies as a guide to the difference in shape.


Posted Image

The beige coloured fuselage parts will be what I'll be chopping up as it's just standard fast cast resin. The clear fuselage half at the bottom is what the new pieces will be cast in, it's extremely tough, stable resin.

Posted Image


Posted Image


Posted Image

And my references...

And Voodoo.

Posted Image

Edited by turnerdad, 01 September 2008 - 08:26 PM.


#2 Muller

Muller

    Very Obsessed Member

  • Members
  • 1,284 posts

Posted 23 July 2008 - 02:06 AM

I'll be watching this one. :popcorn:

That Voodoo build is fantastic. Is that Tom Cruise sitting in the cockpit?? ;)

#3 Boonie

Boonie

    Newbie

  • Members
  • 15 posts

Posted 23 July 2008 - 06:06 AM

I shall also be watching this with interest, but I think you will find that to be Richard Hammond in Voodoo and not Mr Cruise, he clearly has brown hair! ;)

#4 Dr_Fester

Dr_Fester

    Obsessed Member

  • Members
  • 515 posts

Posted 23 July 2008 - 07:37 AM

Oh yes, looking forward to this Nick. :popcorn:

(sharpening pencil ready to take notes :coolio: )


Doc

#5 PHaTNesS

PHaTNesS

    Very Obsessed Member

  • Members
  • 3,919 posts

Posted 23 July 2008 - 08:48 AM

Come on then, chop chop!

Can't wait for this... :popcorn:

#6 keefr22

keefr22

    Rebel without a clue....

  • Gold Member
  • 5,720 posts

Posted 23 July 2008 - 09:01 AM

Voodoo was without doubt my favourite model in last years Telford comp, the finish on it is simply outstanding!

So, I'll also take my seat in the audience to watch this one take shape! :popcorn: (dunno how you'll be able to hear yourself think with all this popcorn crunching going on!! :D )

Keef

#7 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 23 July 2008 - 02:32 PM

I'll be watching this one. :popcorn:

That Voodoo build is fantastic. Is that Tom Cruise sitting in the cockpit?? ;)

Yup that's Tom Cruise allright, he's sitting on a cushion though... :innocent:

Gonna turn up the spinner on Friday, then I can work back onto the nose. But I'm gonna start fettling tonight, I really hope I get this finished in time for Telford. I will, I will.

#8 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 03 August 2008 - 08:25 PM

Had a relatively quiet weekend, so managed to spend around 14 hours working on the Baron. First was dealing with the canopy area, as the canopy is a slightly different shape from Voodoo. The front and rear slopes are steeper so I blocked them back according to my plans. I had to build up the area where the canopy front would sit when closed, and then had to bed the rear. The process of "bedding" is basically a process to mirror a surface shape where 2 otherwise differently shaped surfaces meet. Once I was happy with the angle and quality of the canopy I stretched some parcel tape over the back...
Posted Image
I then smothered some car body filler on the fuselage...
Posted Image

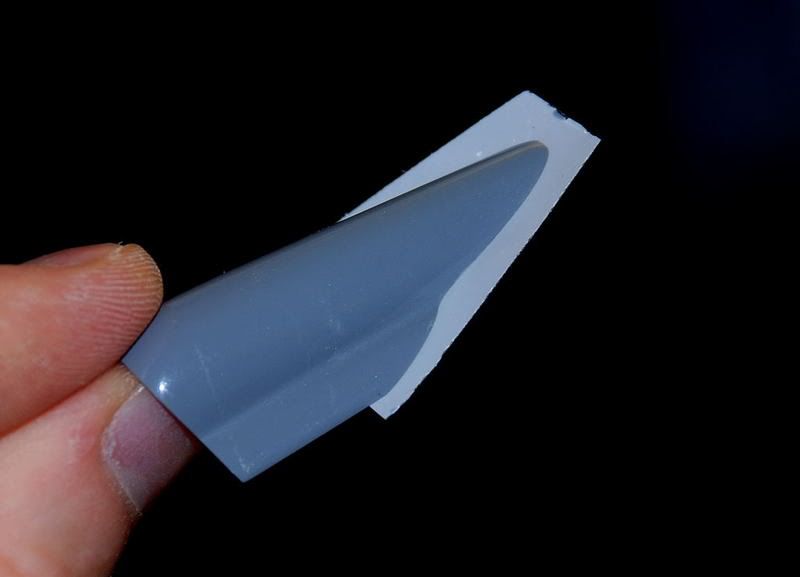

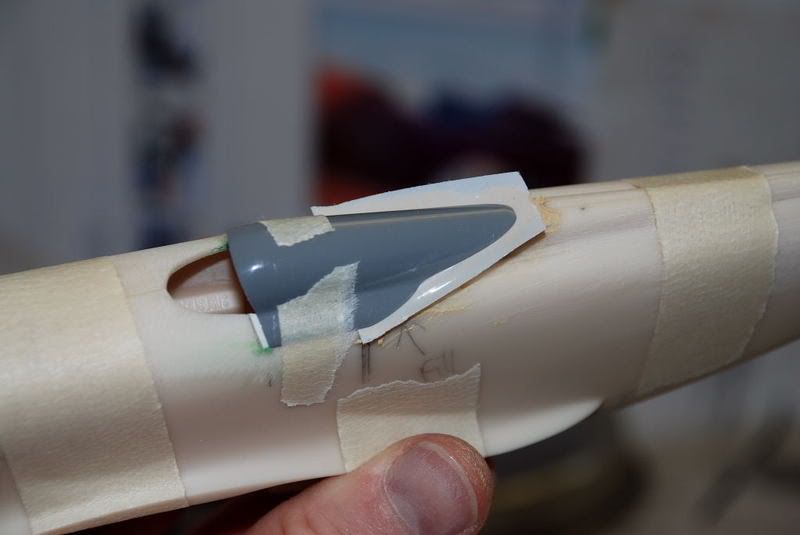

placed the canopy on top and positioned it correctly, squeezing some more filler into any gaps with a pointy filler knife. The parcel tape forms a relatively flat surface ( though thin P card would be better as the tape can wrinkle but the tolerances were a bit too fine), and the filler won't stick to it.
Posted Image
Once the filler had set (5 mins)...Posted Image

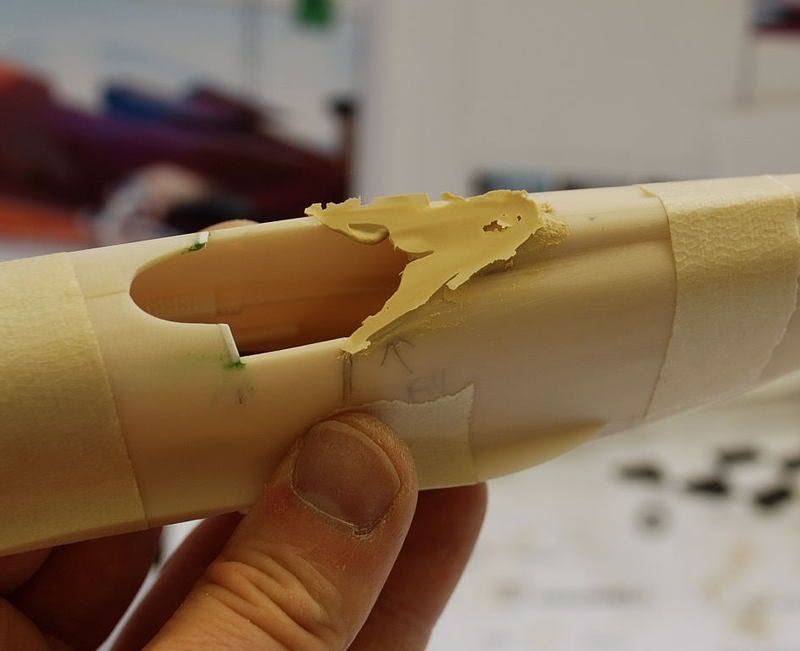

I removed the canopy...
Posted Image

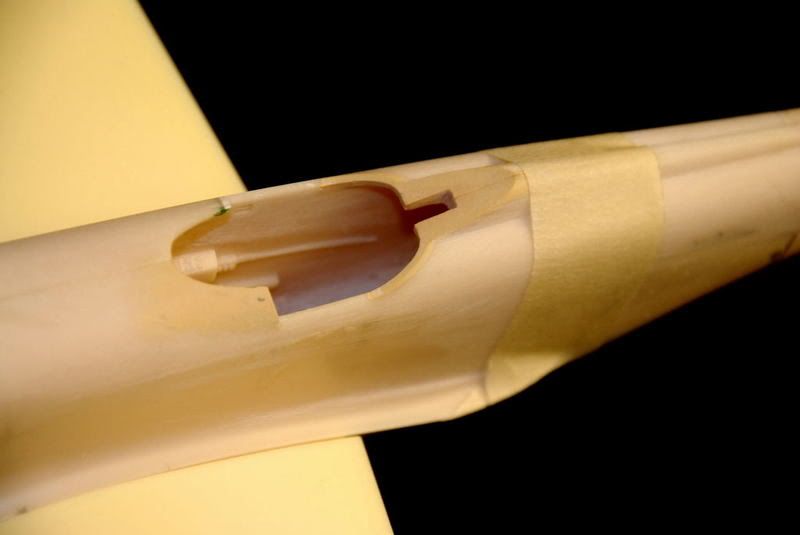

and generally cleaned the area up...
Posted Image
The slot in the middle will eventually house the canopy sliding mechanism.

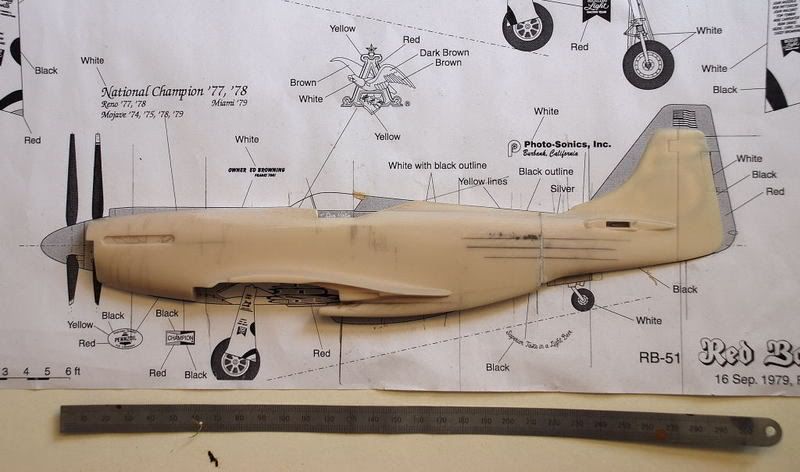

I decided to stick to the plans closely, they capture the look of the real thing perfectly and I will be using them to produce the artwork for the decals later, (well a friend will be doing the computer magic and printing) so the plans and model need to correspond accurately. There seem to be some issues, I don't know if the Hasegawa kit is very innacurate, or the plans aren't 100%, but I found I needed to move the tail wheel area forward about 3mm. Razorsaw and filler...The long pencil lines you can see on the fuselage side above the tailwheel area I drew on before cutting,and help when re-attaching the tail, by allowing me to make sure I glue the back on straight, not wonky (the line would kink)
Posted Image

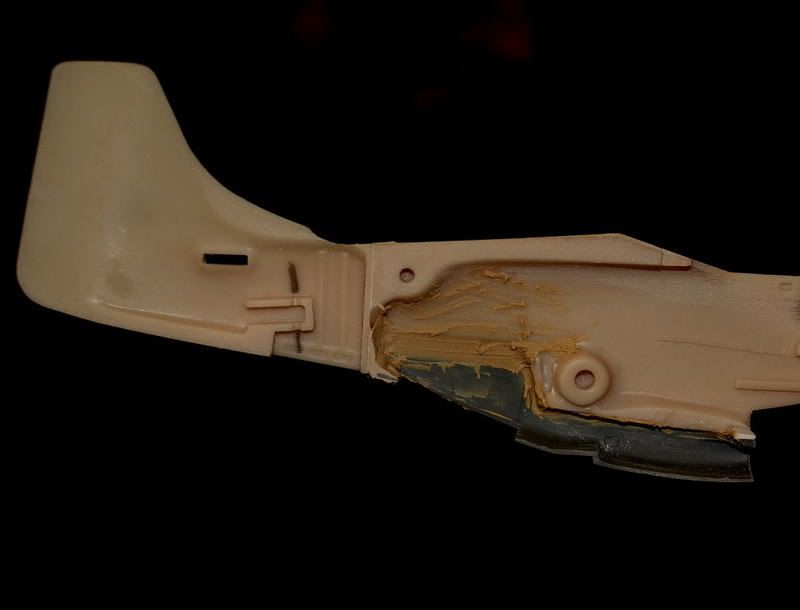

Next came the radiator intake area, so out came the hacksaw and another Hasegawa P-51 bit the dust. As I was using Voodoos body which had a highly modified streamlined radiator and the Baron had a stock one, I had to graft a new one on. Just a case of removing the respective areas and popping the new bits on, going by the scaled plans. Once that was done, again blending the parts in with car body filler (great stuff) I re did the small belly exhaust area, as it was very indistinct on the kit.
Posted Image
Posted Image

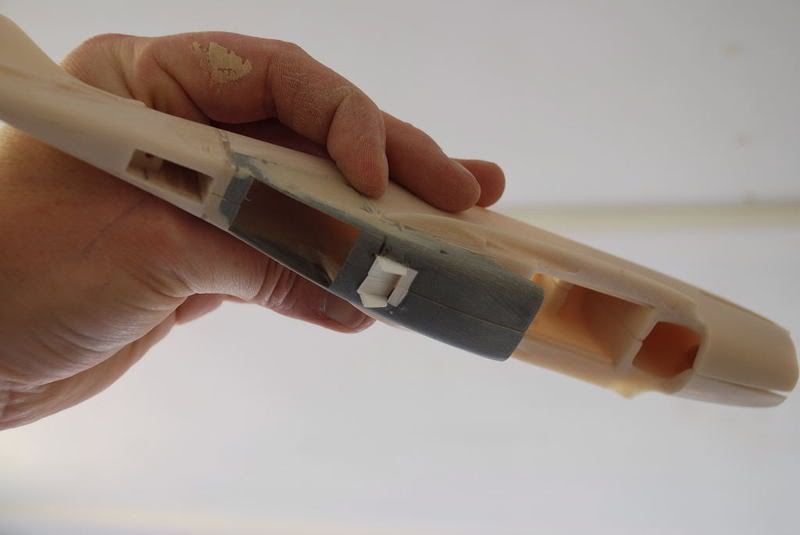

I also added a roof to the radiator intake trunking, as otherwise you could see the bottom of my cockpit, and that just wouldn't do dammit...

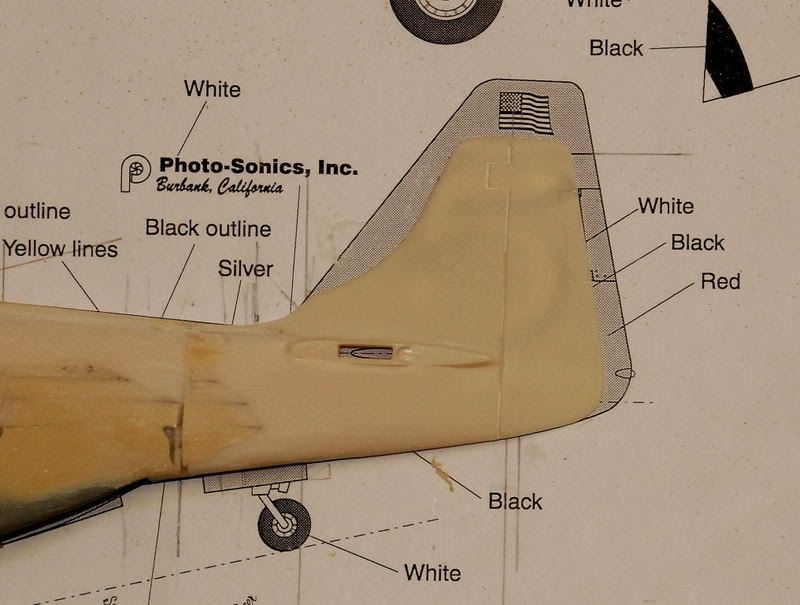

I then built up the fin with P-card and filler, looks messy but it is quick and accurate as long as you take it easy,and keep a close eye on the plans
Posted Image
Posted Image
Posted Image
Posted Image
After this I just cleaned the whole lot up a bit. It looks a little crude currently, but it is important to get the basic foundations right, shape and casting friendly. Once I start getting primer on it should begin to look sweet.
I will be casting all these bits up later, so any weakness doesn't really matter. Next will be the nose and prop, then cockpit finishing and detailing, and finally new wing tips
Posted Image
Posted Image
Posted Image
Cheers all, back to work tomorrow, yipee. :jump_fire:

Edited by turnerdad, 03 August 2008 - 09:34 PM.


#9 Spence

Spence

    Very Obsessed Member

  • Members
  • 2,623 posts

Posted 03 August 2008 - 08:32 PM

Oh my God! Voodoo got me into some hot water last year! Mustn't criticise judging at comps. Mustn't criticise judging at comps. Mustn't... :whistle:

Joking aside that was by far the best finish seen on any model at last years Nats. Actually, it may be the best finish I've seen on any model, at any show. If you ever get bored of it, my number is...

Spence - In Awe... :analintruder:

#10 Mike

Mike

    Proud dad

  • Root Admin
  • 1,002,261 posts

Posted 03 August 2008 - 08:45 PM

Loved Voodoo at the Nats last year, and am seriously looking forward to seeing this one taking shape too. :)

#11 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 03 August 2008 - 09:30 PM

Oh my God! Voodoo got me into some hot water last year! Mustn't criticise judging at comps. Mustn't criticise judging at comps. Mustn't... :whistle:

Joking aside that was by far the best finish seen on any model at last years Nats. Actually, it may be the best finish I've seen on any model, at any show. If you ever get bored of it, my number is...

Spence - In Awe... :analintruder:

I've seen (and posted replies to) some of your work, it's very nice, that Mistel, uber sweet. Don't you write for Military In Scale? (I think that's right). Read an interesting article about Telford comp last year in that mag. That Scorpion...wow. Need I say more? If I'm wrong apologies.

#12 Spence

Spence

    Very Obsessed Member

  • Members
  • 2,623 posts

Posted 04 August 2008 - 08:11 AM

I've seen (and posted replies to) some of your work, it's very nice, that Mistel, uber sweet. Don't you write for Military In Scale? (I think that's right). Read an interesting article about Telford comp last year in that mag. That Scorpion...wow. Need I say more? If I'm wrong apologies.



Hey there! Yeah I write for MIS; no, sorry I edit MIS - sometimes I forget who's in charge..!!! :whistle:

The Scorpion?! Please don't get me started on that... :deadhorse:

Spence - MIS Chief cook and bottle washer...

#13 desmojen

desmojen

    Very Obsessed Member

  • Banned
  • 1,526 posts

Posted 04 August 2008 - 08:12 AM

Loved Voodoo at the Nats last year, and am seriously looking forward to seeing this one taking shape too. :)


Me three! :D

Jen.

#14 keefr22

keefr22

    Rebel without a clue....

  • Gold Member
  • 5,720 posts

Posted 04 August 2008 - 09:42 AM

Well, that's just proper modelmaking, that is!! Wonderful work, & many thanks for sharing your techniques in producing what is surely going to be another masterpiece to rival Voodoo!! Brilliant stuff....!!! :speak_cool: :worthy:

Keef

#15 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 04 August 2008 - 04:55 PM

Thanks for the kind words. Bunked off work a little early and bagged the lathe for a couple of hours, the front part of the spinner is now done, rest coming soon as it is the only part I really can't do at home, then I can do the nose, and it should flow nicely after that.

#16 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 05 August 2008 - 06:12 PM

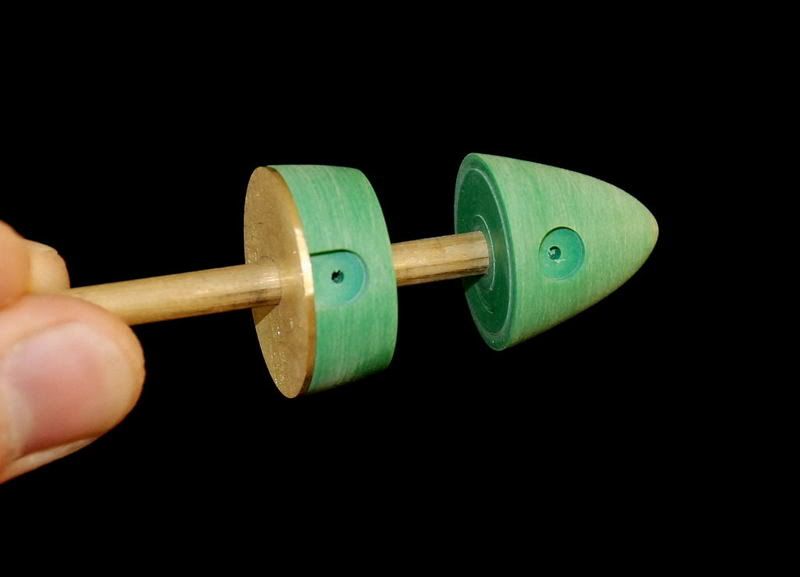

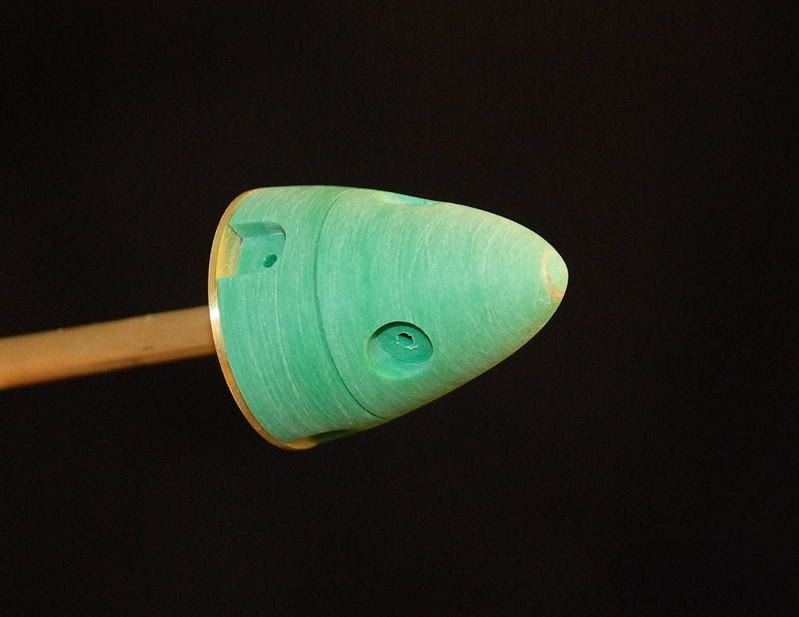

Spinner done, just have to clean up the back of the front part a little, and bed in the correct shape where the props enter the spinner, which is more rectangular. I milled a larger space and will make a male plug of the correct profiles (front and back parts are shaped differently). I want the props to counter-rotate when blown on. May not work but at least I will be able to position the blades however I want.

Posted Image
Posted Image
Posted Image

#17 The Hooded Claw

The Hooded Claw

    Obsessed Member

  • Frozen
  • 526 posts

Posted 05 August 2008 - 07:38 PM

What is the material you used for the spinner?

THC

#18 turnerdad

turnerdad

    Very Obsessed Member

  • Gold Member
  • 2,697 posts

Posted 05 August 2008 - 07:51 PM

What is the material you used for the spinner?

THC

It's a "chemical" wood, funnily enough we call it "chemi-wood" at work (we're an imaginative lot!), commonly known as Uriol I think. It comes in different densities from extremely dense and strong to virtually polystyrene type stuff. This green stuff is on the denser side, good for turning and milling, but hard to work by hand. I'll find out were we get it at work tomorrow and post. It is great for making any manner of thing, we use it for all our pattern making and chuck out obscene quantities, so I'm able to "rescue" some from the skip. Close to a lifetimes supply! Oh, and as it isn't wood, it has no grain. Result.

Edited by turnerdad, 05 August 2008 - 07:52 PM.


#19 keefr22

keefr22

    Rebel without a clue....

  • Gold Member
  • 5,720 posts

Posted 05 August 2008 - 09:33 PM

It's a "chemical" wood, funnily enough we call it "chemi-wood" at work (we're an imaginative lot!), commonly known as Uriol I think. It comes in different densities from extremely dense and strong to virtually polystyrene type stuff. This green stuff is on the denser side, good for turning and milling, but hard to work by hand. I'll find out were we get it at work tomorrow and post. It is great for making any manner of thing, we use it for all our pattern making and chuck out obscene quantities, so I'm able to "rescue" some from the skip. Close to a lifetimes supply! Oh, and as it isn't wood, it has no grain. Result.


Sounds like "Renn-shape", which American scratchbuilders rave about. I'll be interested to find out where to get it too....!!

Cheers

Keef

#20 Muller

Muller

    Very Obsessed Member

  • Members
  • 1,284 posts

Posted 05 August 2008 - 10:42 PM

Looking good so far.... Most of it beyond my capabilities! Nice spinner! :popcorn:
